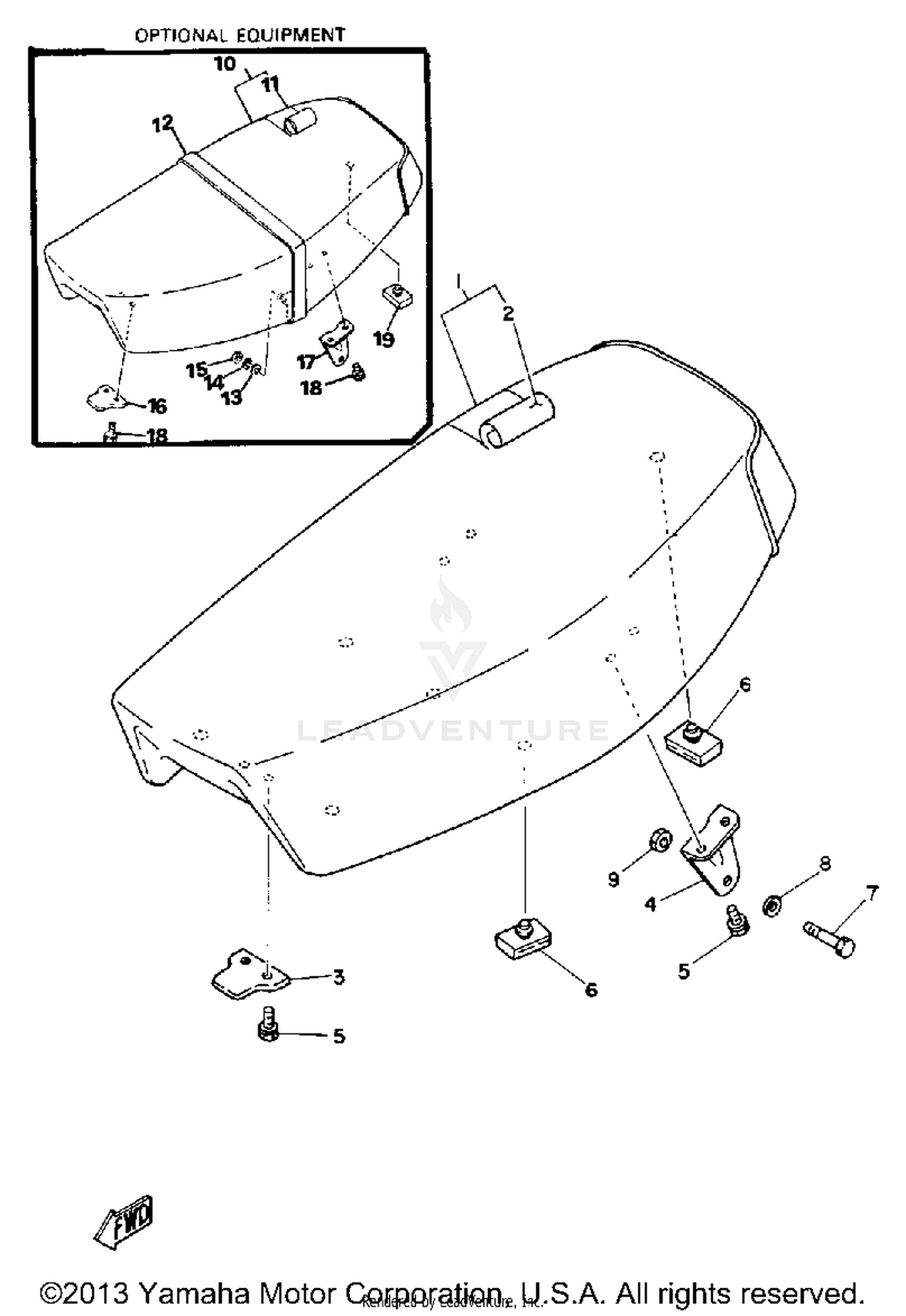

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
2N6-24710-90-00
|
$153.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
2N6-24711-00-00
|
$64.78 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
1M1-24748-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, SEAT
1M1-24738-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#5
BOLT
90101-06304-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, SEAT
214-24724-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97313-06045-00
Superseded by 97013-06045-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
ABSORBER 3
2N6-11127-00-00
Superseded by 2A6-11127-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#11
COVER, DOUBLE SEAT
2N6-24731-00-00
|
$37.30 | ||
|
Unavailable |
|||
|
#12
BAND, SEAT
2N6-24734-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, SEAT
1M1-24748-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#17
BRACKET, SEAT
1M1-24738-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
BOLT
90101-06304-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
DAMPER, SEAT
214-24724-00-00
|
$7.49 | ||
|
Unavailable |
|||
