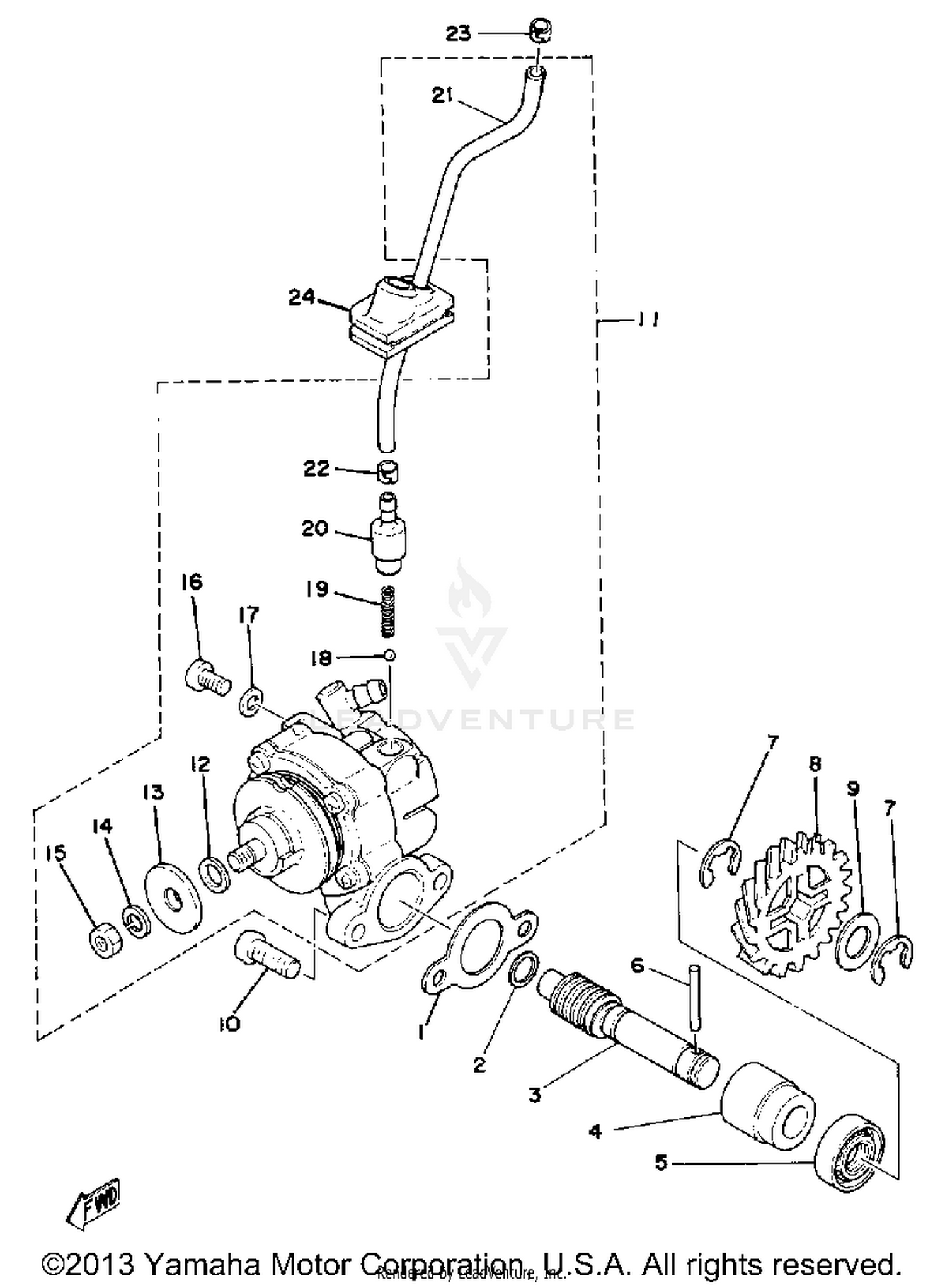

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, PUMP CASE
3MT-13116-00-00
Superseded by 126-13116-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-08624-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, WORM
525-13175-01-00
|
$10.18 | ||
|
Unavailable |
|||
|
#4
METAL, WORM SHAFT OUTER
1E7-13176-00-00
Superseded by 137-13176-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93101-10090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93603-22028-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, PUMP DRIVE
1M1-13178-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-106H7-00
Superseded by 90201-10614-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL PUMP ASSEMBLY
1M1-13101-01-00
|
$225.99 | ||
|
Unavailable |
|||
|
#12
SHIM (T=1.0)
137-13137-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM (T=0.5)
137-13137-00-05
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM (T=0.3)
137-13137-00-03
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, ADJUSTING
137-13138-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, BIND
98901-04008-00
Superseded by 98980-04008-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
90430-04004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93505-32002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, COMPRESSION
90501-02018-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NOZZLE
402-13552-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE (L700)
90445-05214-00
Superseded by 90445-05M07-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90468-02033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90468-02033-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
HOLDER, OIL PIPE
1M1-13174-00-00
|
$2.58 | ||
|
Unavailable |
|||
