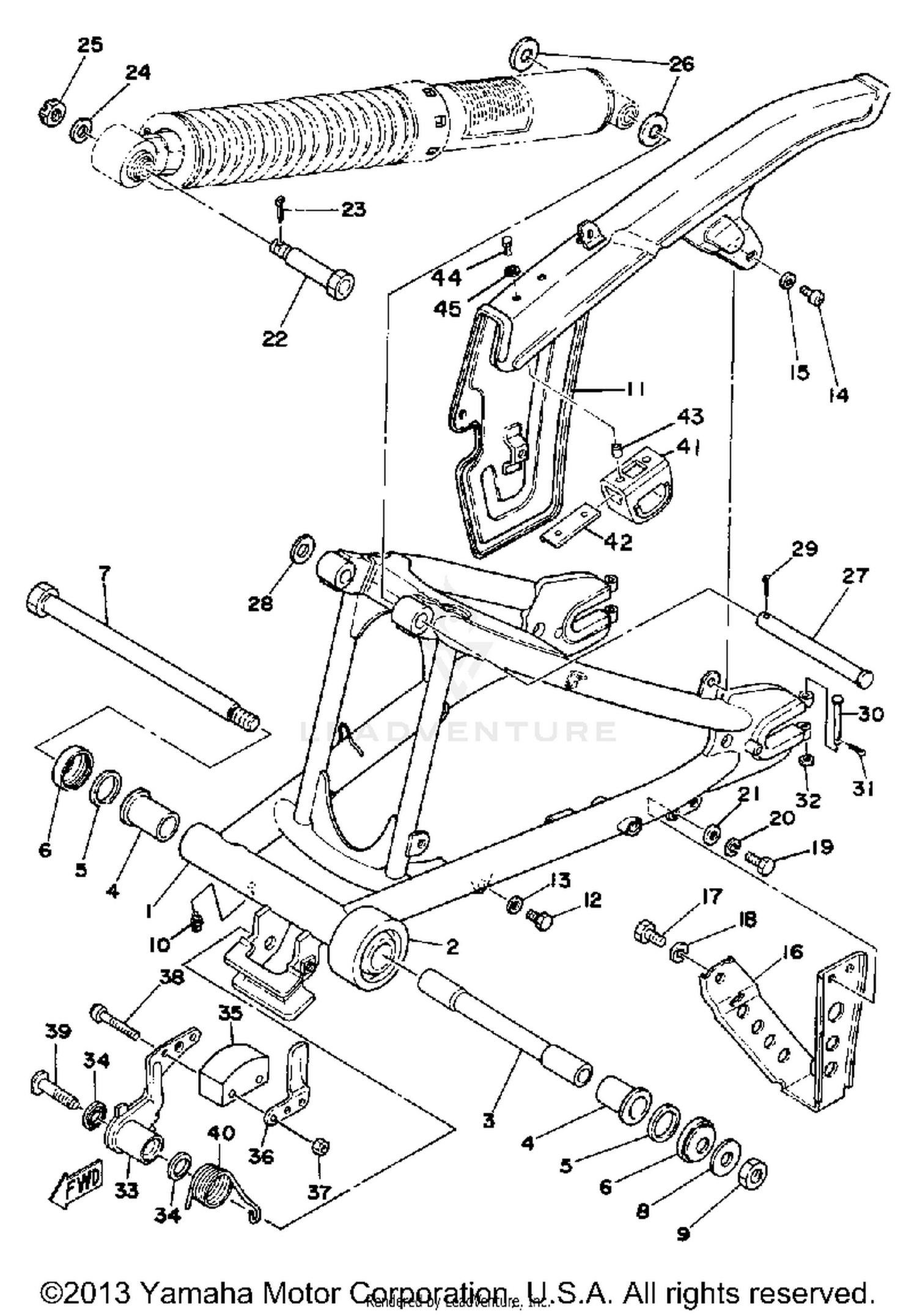

Rear Arm - Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
2N6-22110-00-33
|
$169.99 | ||
|
Unavailable |
|||
|
#2
SEAL, GUARD
1M1-22151-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#3
COLLAR (322-22124-00)
90387-16398-00
|
$55.99 | ||
|
Unavailable |
|||
|
#4
BUSH
3Y1-22184-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, PIVOT
2N6-22141-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-14218-00
Superseded by 90201-15797-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U
95601-14100-00
Superseded by 95617-14100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, CHAIN
4E7-22311-00-33
|
$50.99 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON
97313-05010-00
Superseded by 97013-05010-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Unavailable |
|||
|
#16
GUARD, CHAIN
1M1-22318-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#17
BOLT
97011-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-10550-00
Superseded by 90109-10453-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, THRUST 1
1W1-22128-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, CLEVIS
90240-12059-00
|
$9.99 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
92990-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, CLEVIS
91701-06042-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#32
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
ARM, TENSIONER
1M1-22179-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#34
OIL SEAL
93104-14044-00
Superseded by 93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
|
$9.45 | ||
|
Unavailable |
|||
|
#36
GUIDE, CHAIN
1M1-22187-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#37
NUT
95311-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT (90109-10533-00)
90109-10483-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, TORSION
90508-35350-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PORTECTOR, CHAIN
3J0-22147-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
STAY, CHAIN CASE 1
3J0-22131-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
90387-05679-00
Superseded by 90387-051N8-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, HEXAGON
97313-05016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#45
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Unavailable |
|||
