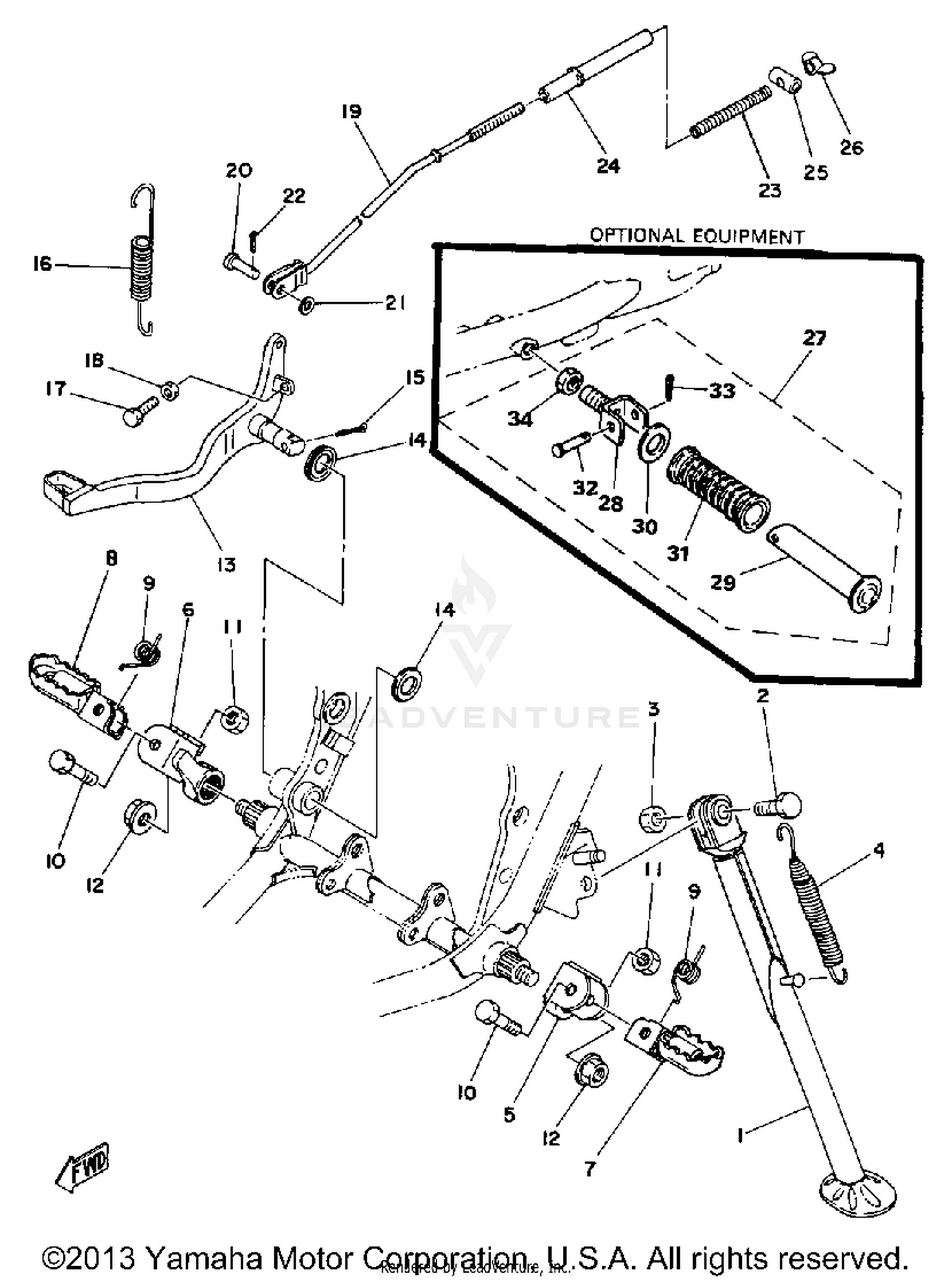

Stand - Footrest - Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
2Y0-27311-00-33
|
$54.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90507-29021-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, FOOTREST 1
1M1-27412-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#6
BRACKET, FOOTREST 2
1M1-27422-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#7
FOOTREST 1
22W-27411-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOOTREST 2 (3R1-27421-00)
22W-27421-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90101-08371-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
90185-12072-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PEDAL, BRAKE
1M1-27211-01-33
|
$40.99 | ||
|
Unavailable |
|||
|
#14
COVER, DUST
498-27235-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TENSION
90506-18289-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, BRAKE
483-27231-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#20
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER
1M1-27244-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
RR FOOTREST ASSEMBLY 1
120-27430-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET 1
120-27432-02-00
|
$7.49 | ||
|
Unavailable |
|||
|
#29
FOOTREST, REAR 1
120-27431-00-00
Superseded by 2GV-27431-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-20279-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, REAR FOOTREST
120-27433-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN
90240-06009-00
Superseded by 91701-06032-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
95301-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
