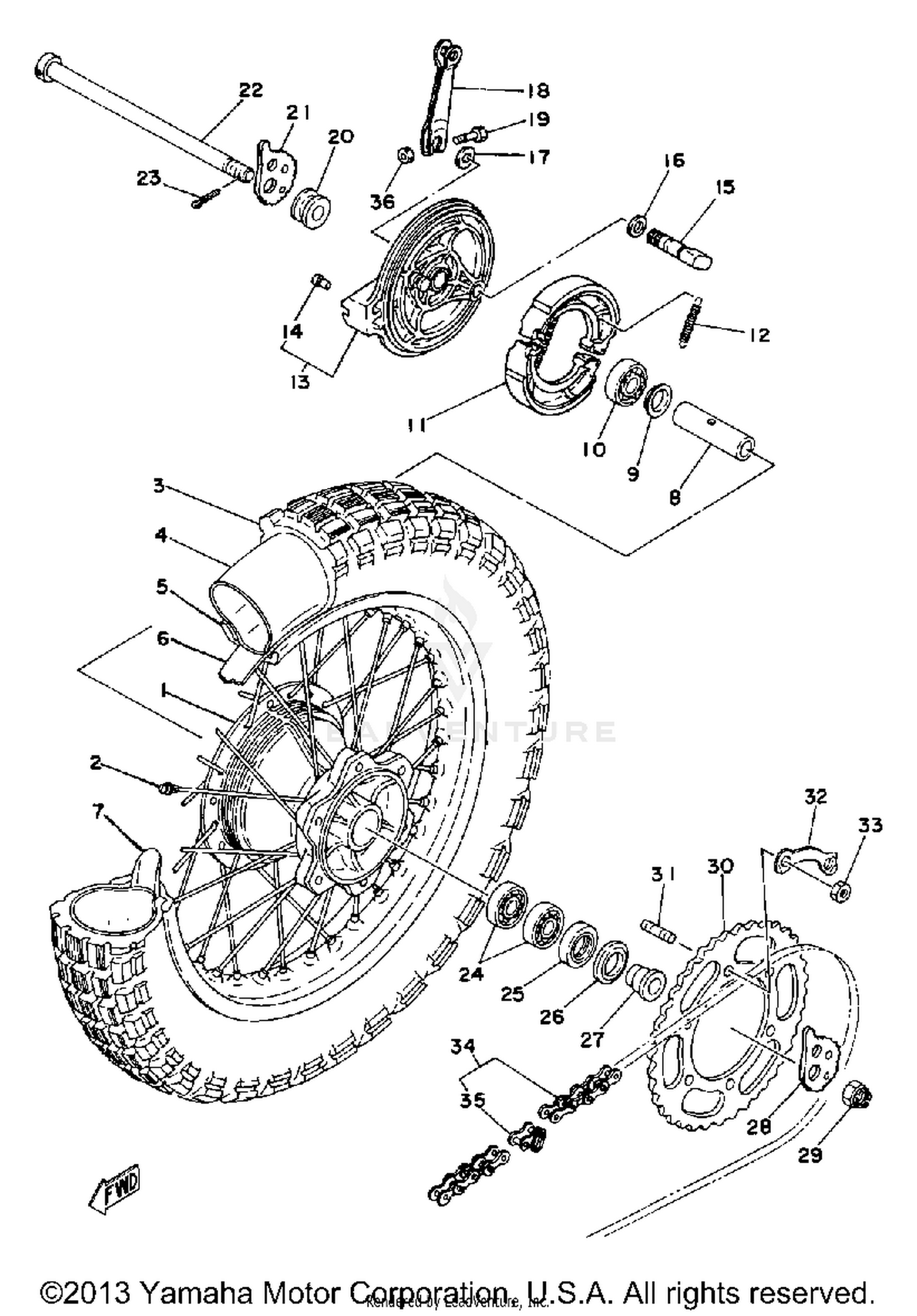

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
1M1-25311-00-98
|
$129.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
1M1-25304-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#3
400X18 DUN TRI UNI
94140-18317-00
|
$50.99 | ||
|
Unavailable |
|||
|
#4
TUBE (110-140/80-100-18 M/C)
94240-18098-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 1.85X18
94418-18192-00
|
$144.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94340-18022-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEAD
1T2-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
90560-17233-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
FLANGE, SPACER
483-25315-00-00
|
$4.17 | ||
|
Unavailable |
|||
|
#10
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE KIT
214-W2535-00-00
Superseded by 3GW-W253A-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRAKE SHOE PLATE ASSEMBLY
1M1-25026-10-98
|
$63.99 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAMSHAFT
214-25351-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#16
SHIM, CAMSHAFT
148-25353-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, CAMSHAFT 1
1E2-25155-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-17141-00
Superseded by 90387-170X9-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 2
1M1-25389-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#22
AXLE,WHEEL
150-25381-00-00
Superseded by 150-25381-01-00
|
$53.99 | ||
|
Unavailable |
|||
|
#23
BEARING
93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#24
BEARING
93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#25
OIL SEAL, DD-TYPE (DD-25-40-9)
93106-25003-00
|
$4.54 | ||
|
Unavailable |
|||
|
#26
COVER, HUB DUST
431-25367-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#27
COLLAR
90387-17555-00
|
$8.49 | ||
|
Unavailable |
|||
|
#28
PULLER, CHAIN 1
1M1-25388-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#29
NUT, CASTLE (275-25382-00)
90171-16007-00
|
$14.49 | ||
|
Unavailable |
|||
|
#30
SPROCKET, DRIVEN 47T
1M1-25447-10-00
|
$60.99 | ||
|
Unavailable |
|||
|
#31
BOLT, STUD
90116-10234-00
|
$3.20 | ||
|
Unavailable |
|||
|
#32
WASHER
1M1-25412-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#33
NUT (95307-10700-00 )
95311-10700-00
Superseded by 95317-10700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CHAIN 520DS-104L
9Y585-20103-00
|
$105.99 | ||
|
Unavailable |
|||
|
#35
JOINT,CHAIN (DID 520DM-RJ)
94685-20001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
