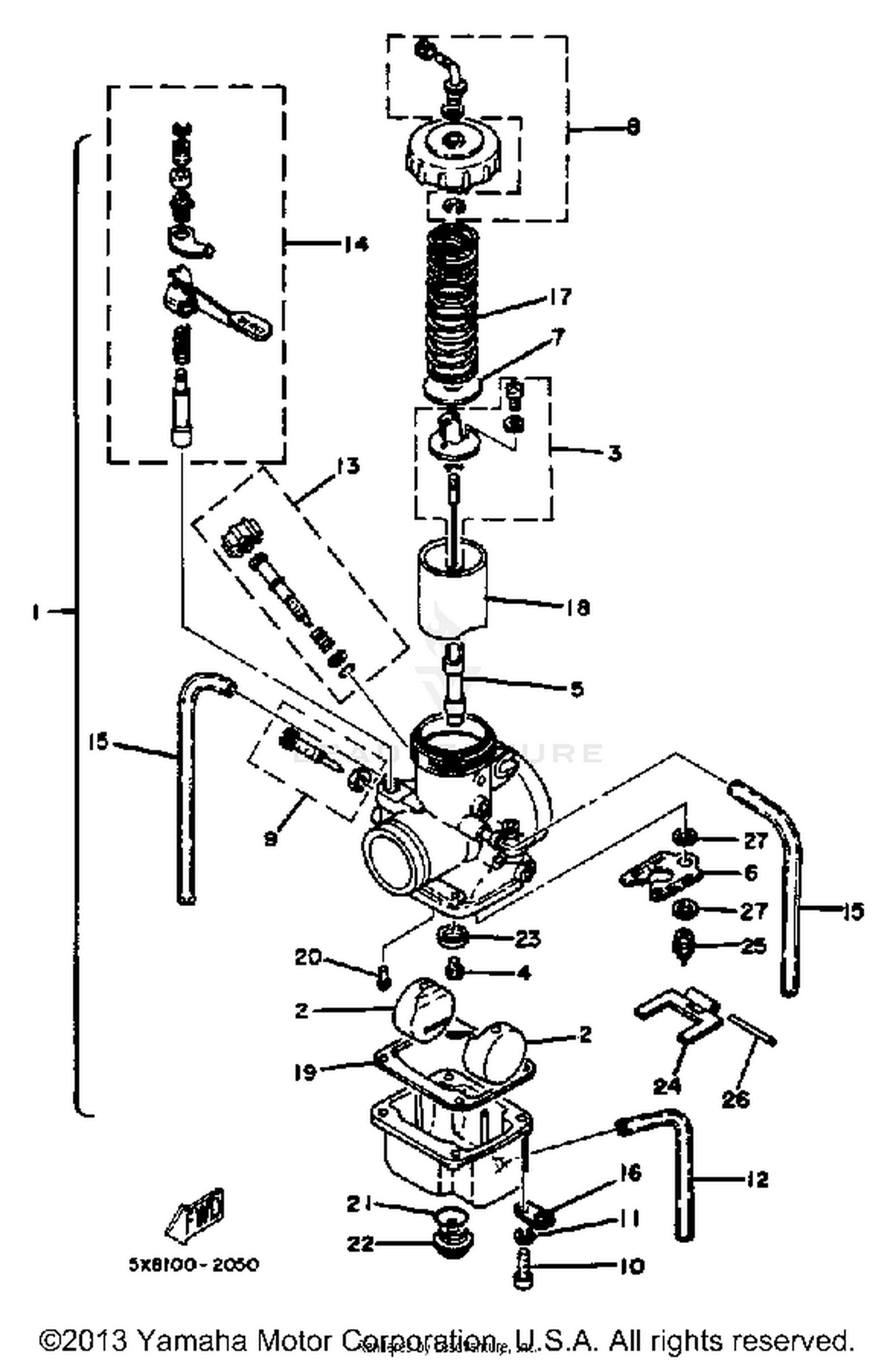

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
5X8-14101-10-00
|
$167.99 | ||
|
Unavailable |
|||
|
#2
FLOAT
310-14185-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET (6F21)
239-W1418-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#4
JET, MAIN (#300)
137-14143-60-A0
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#310)
137-14143-62-A1
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#320)
137-14143-64-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NOZZLE, MAIN P-4
239-14141-44-00
|
$48.99 | ||
|
Unavailable |
|||
|
#6
PLATE
483-14146-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING
509-14136-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#8
ADJUSTER SET
3R3-W1415-00-00
|
$16.96 | ||
|
Unavailable |
|||
|
#9
THROTTLE SCREW SET
204-W1411-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE
2J2-14196-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
AIR SCREW SET
2X3-W1412-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#14
STARTER PLNGR SET
1W1-W1414-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#15
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE
313-14146-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#17
SPRING, THROTTLE VALVE
363-14131-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#18
VALVE, THROTTLE 1
5X8-14112-20-00
|
$95.66 | ||
|
Unavailable |
|||
|
#19
GASKET, FLOAT CHAMBER
483-14184-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, PILOT ( 70)
193-14142-70-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
558-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, SCREW
500-14115-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, MAIN JET
1G8-14153-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#24
ARM, FLOAT
310-14187-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#25
NEEDLE VALVE SET (#3.3)
24X-14107-33-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
