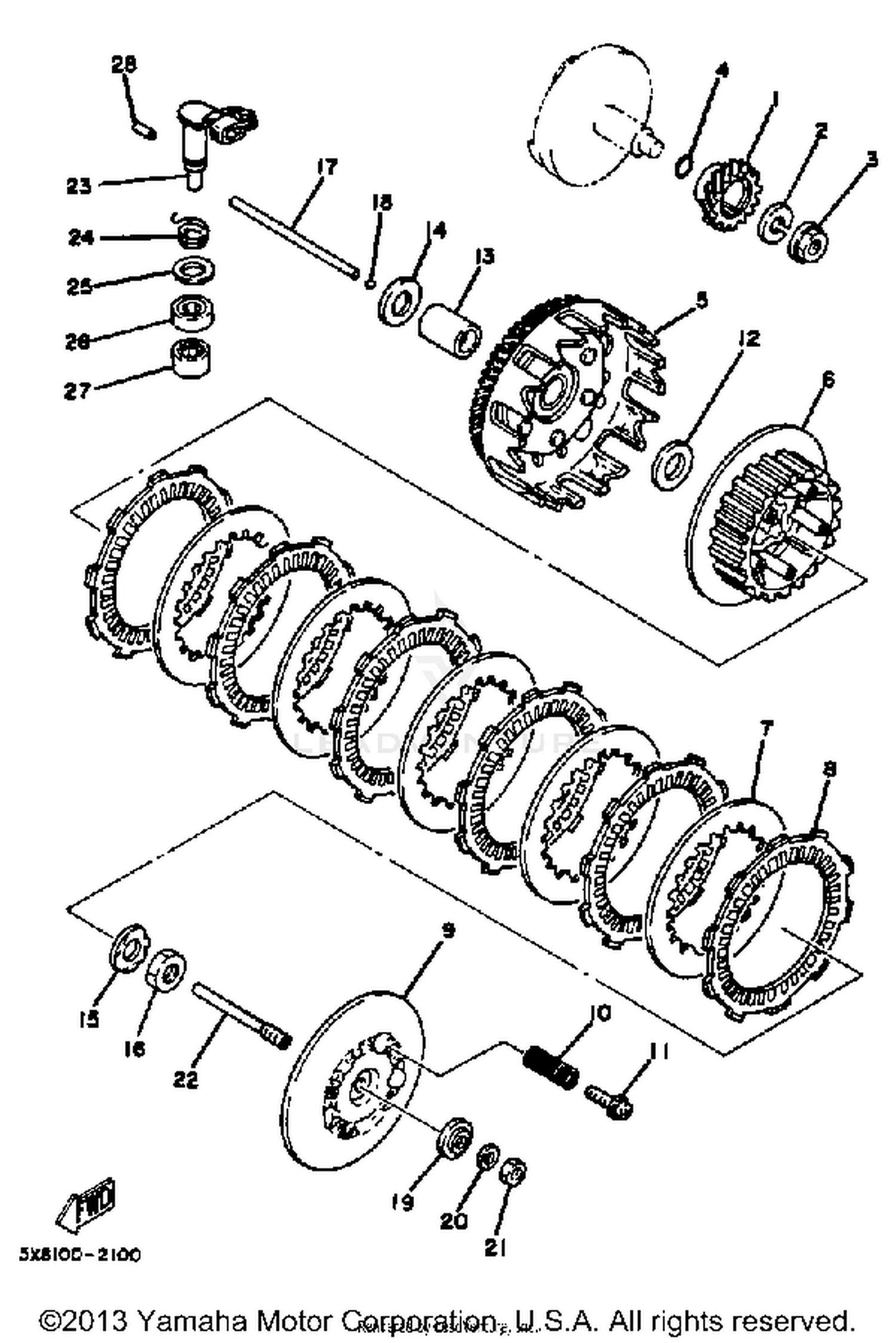

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRI DRIVE
3R6-16111-00-00
|
$55.52 | ||
|
Unavailable |
|||
|
#2
WASHER, SPRING
90204-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPECL SHAPE
90179-12335-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-20027-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRI DRVN GEARCOMP. (52T)
3R6-16150-00-00
|
$167.99 | ||
|
Unavailable |
|||
|
#6
BOSS, CLUTCH
1G8-16371-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH 2
137-16325-70-00
Superseded by 137-16325-80-00
|
$15.99 | ||
|
Unavailable |
|||
|
#8
PLATE, FRICTION
537-16321-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, PRESSURE 1
1W1-16351-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#10
SPRING, COMPRESSION
90501-20361-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, WITH WASHER
90159-05011-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-174E1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
90560-17190-00
|
$16.99 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-174E1-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
WASHER, LOCK
90215-14204-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
2X3-16357-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, PUSH
30X-16358-00-00
Superseded by 1W1-16358-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, PUSH 1
1W1-16356-02-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PUSH LEVER ASSEMBLY
3R3-16380-02-00
|
$84.99 | ||
|
Unavailable |
|||
|
#24
SPRING, TORSION
90508-14426-00
|
$7.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-14217-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93315-21429-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, DOWEL
93604-16092-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
