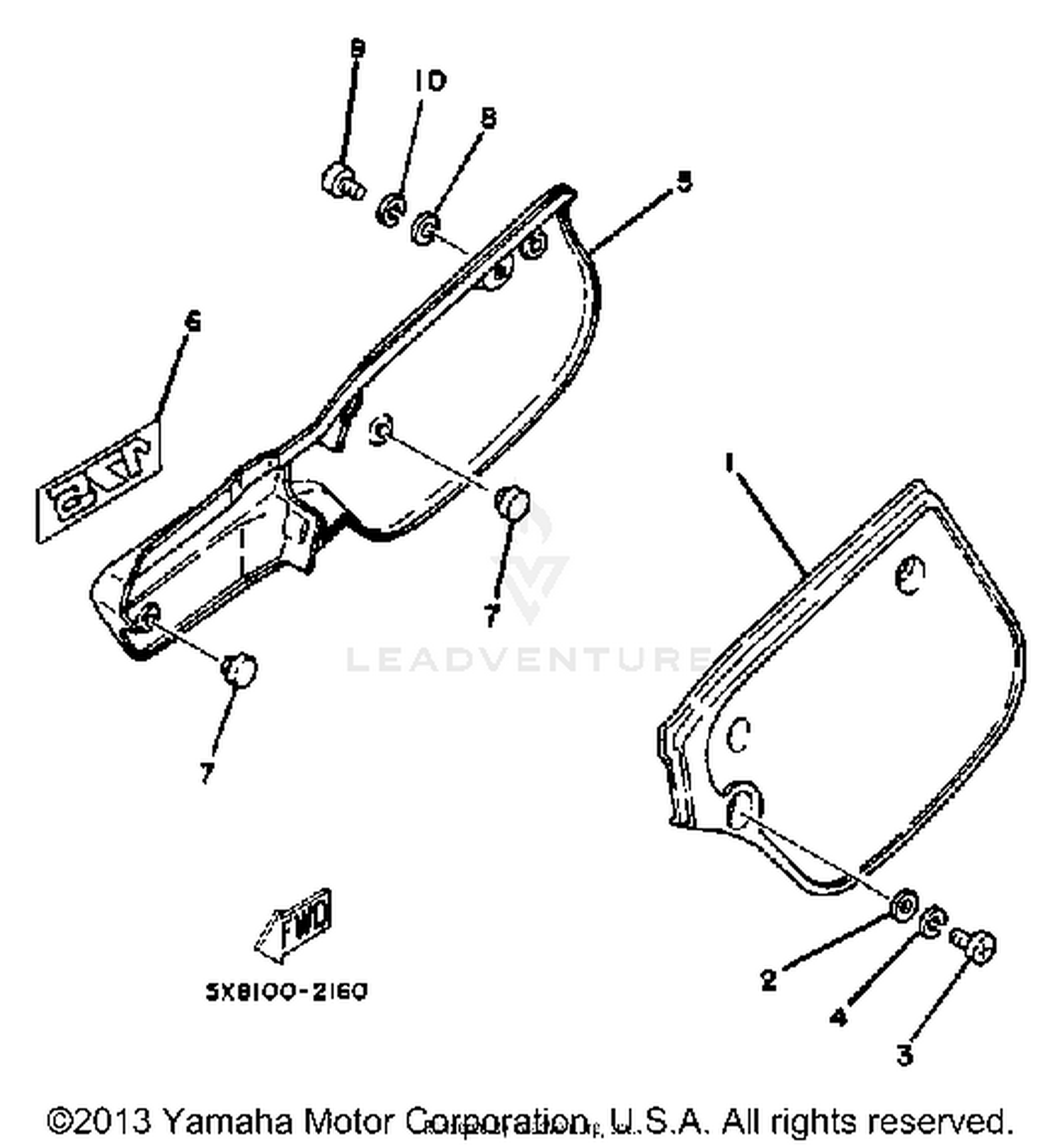

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5X8-21711-00-26
|
$59.99 | ||
|
Unavailable |
|||
|
#2
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SIDE 2
5X8-21721-00-26
|
$69.99 | ||
|
Unavailable |
|||
|
#6
EMBLEM
5X8-21737-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#7
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
