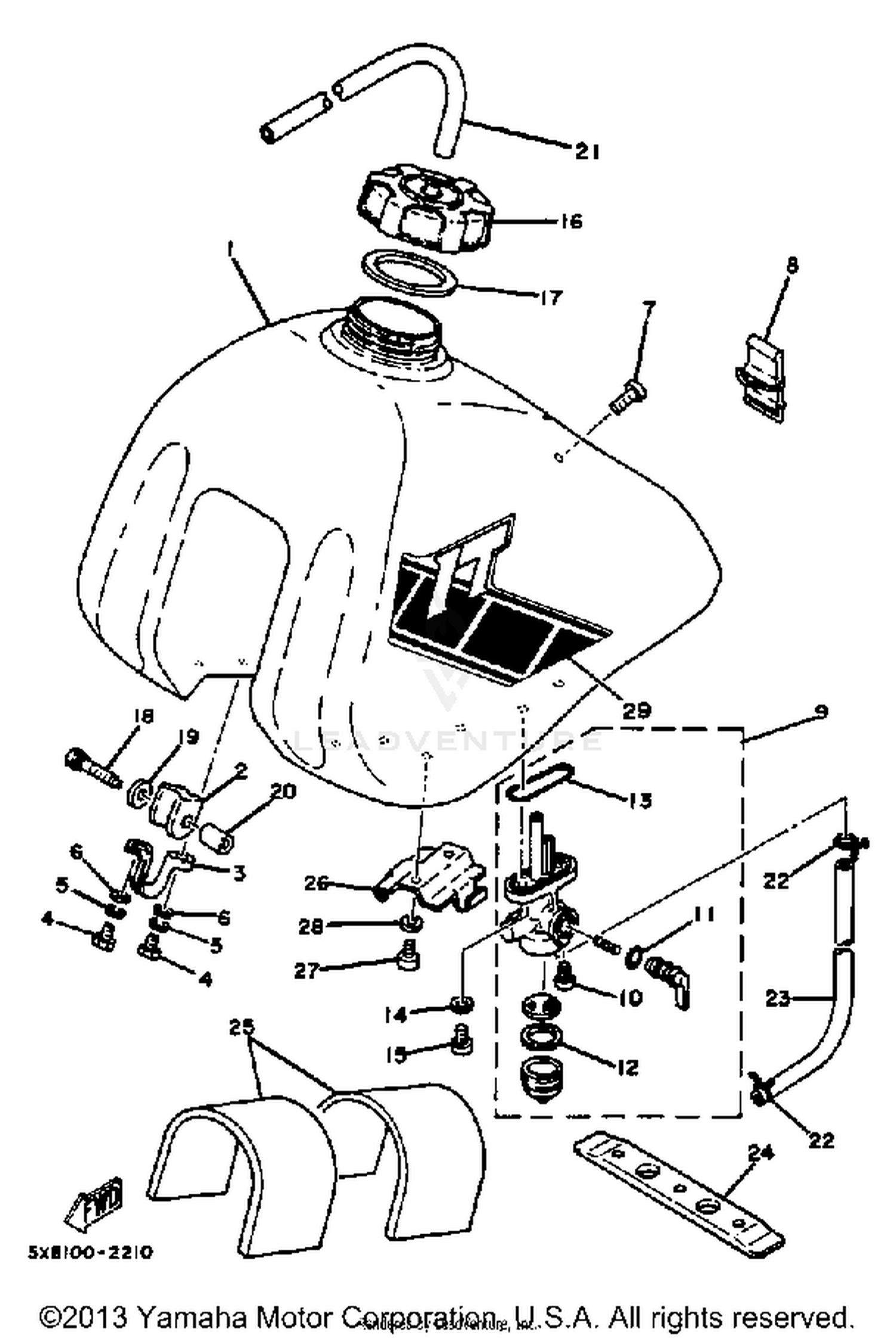

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
5X8-24110-00-00
|
$322.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, LOCATING 2
1W1-24182-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, DAMPER
1W1-24144-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
98903-06018-00
Superseded by 90149-06306-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, TANK FITTING 1
59V-24173-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL COCK ASSEMBLY 1
3R9-24500-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#10
SCREW, LVR FITTING
2N3-24535-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#11
GASKET
2N3-24528-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
357-24522-10-00
|
$8.99 | ||
|
Unavailable |
|||
|
#13
O-RING
2W6-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP ASSY
1UY-24610-00-00
Superseded by 5MV-24610-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CAP
3R9-24612-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#18
BOLT, WITH WASHER
90119-06022-00
|
$2.15 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, LEVER 1
90387-07393-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE (L)
90445-11356-00
Superseded by 90445-112E1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE (L540)
90445-09361-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, LOCATING 1
3R4-24181-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#25
DAMPER, LOCATING 3
1W1-24183-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#26
STAY, CHAMBER
5X6-2415F-01-00
Superseded by 4AA-2415F-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#29
GRAPHIC SET
5X8-24250-10-00
|
$45.96 | ||
|
Unavailable |
|||
