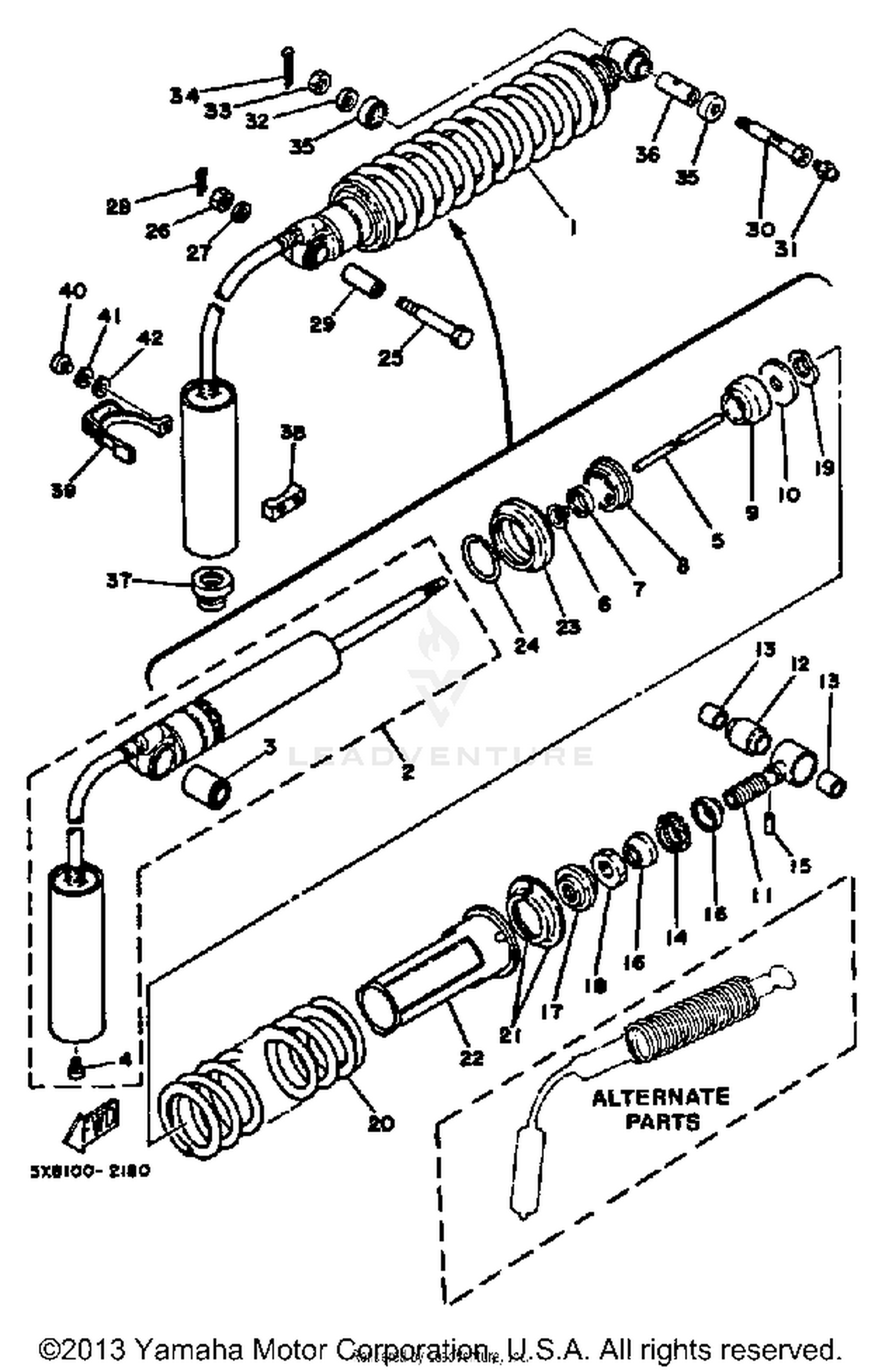

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
5X8-22210-00-00
|
$332.99 | ||
|
Unavailable |
|||
|
#2
DAMPER SUB-ASSEMBLY.
5X8-22401-00-00
|
$283.99 | ||
|
Unavailable |
|||
|
#3
BUSH, RR SHOCK ABS
5X6-22216-00-00
|
$14.84 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, PUSH
5X3-22489-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#6
SEAL,DUST
23X-22475-00-00
Superseded by 23X-22475-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#7
SEAL,DUST
23X-22475-00-00
Superseded by 23X-22475-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#8
CAP, CASE
26A-22472-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
BUMP, STOP
5X8-22493-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#10
SUPPORT, BUMP STOP
3R4-22228-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#11
UPPER BRKT SUB ASSEMBLY
5X3-22409-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#12
BUSH, SHOCK ABS LWR
5X6-22226-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#13
BUSH, BIMETAL FORMED
90384-18157-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, ADJUSTING
5X3-22497-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#15
PIN, DOWEL
93604-26132-00
|
$2.00 | ||
|
Unavailable |
|||
|
#16
COVER
3R4-22221-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
SEAT, SPRING UPPER
3R4-22213-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#18
NUT
90170-20320-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, WAVE
90206-14067-00
|
$3.59 | ||
|
Unavailable |
|||
|
#20
SPRING
5X8-22212-00-00
|
$38.68 | ||
|
Unavailable |
|||
|
#
SPRING, MXS SOFT
5X8-22212-10-00
|
$51.33 | ||
|
Unavailable |
|||
|
#
SPRING, MXS HARD
5X8-22212-20-00
|
$87.26 | ||
|
Unavailable |
|||
|
#21
GUIDE, SPRING 1
3R4-22214-01-00
Superseded by 3P6-22214-10-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE, SPRING 2
5X3-22224-00-00
|
$16.74 | ||
|
Unavailable |
|||
|
#23
SEAT, SPRING LOWER
3R4-22223-00-00
|
$16.98 | ||
|
Unavailable |
|||
|
#24
CIRCLIP, OUTER
93440-50078-00
|
$4.18 | ||
|
Unavailable |
|||
|
#25
BOLT
90109-10550-00
Superseded by 90109-10453-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH 2
90380-12094-00
Superseded by 2J5-22124-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90109-10648-00
|
$5.25 | ||
|
Unavailable |
|||
|
#31
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, THRUST 2
5X6-22129-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BUSH 2
90380-12094-00
Superseded by 2J5-22124-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#37
GROMMET
90480-22263-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER, SUB TANK
5X6-22261-00-00
|
$2.60 | ||
|
Unavailable |
|||
|
#39
HOLDER, SUB TANK
3R3-22262-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#40
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
