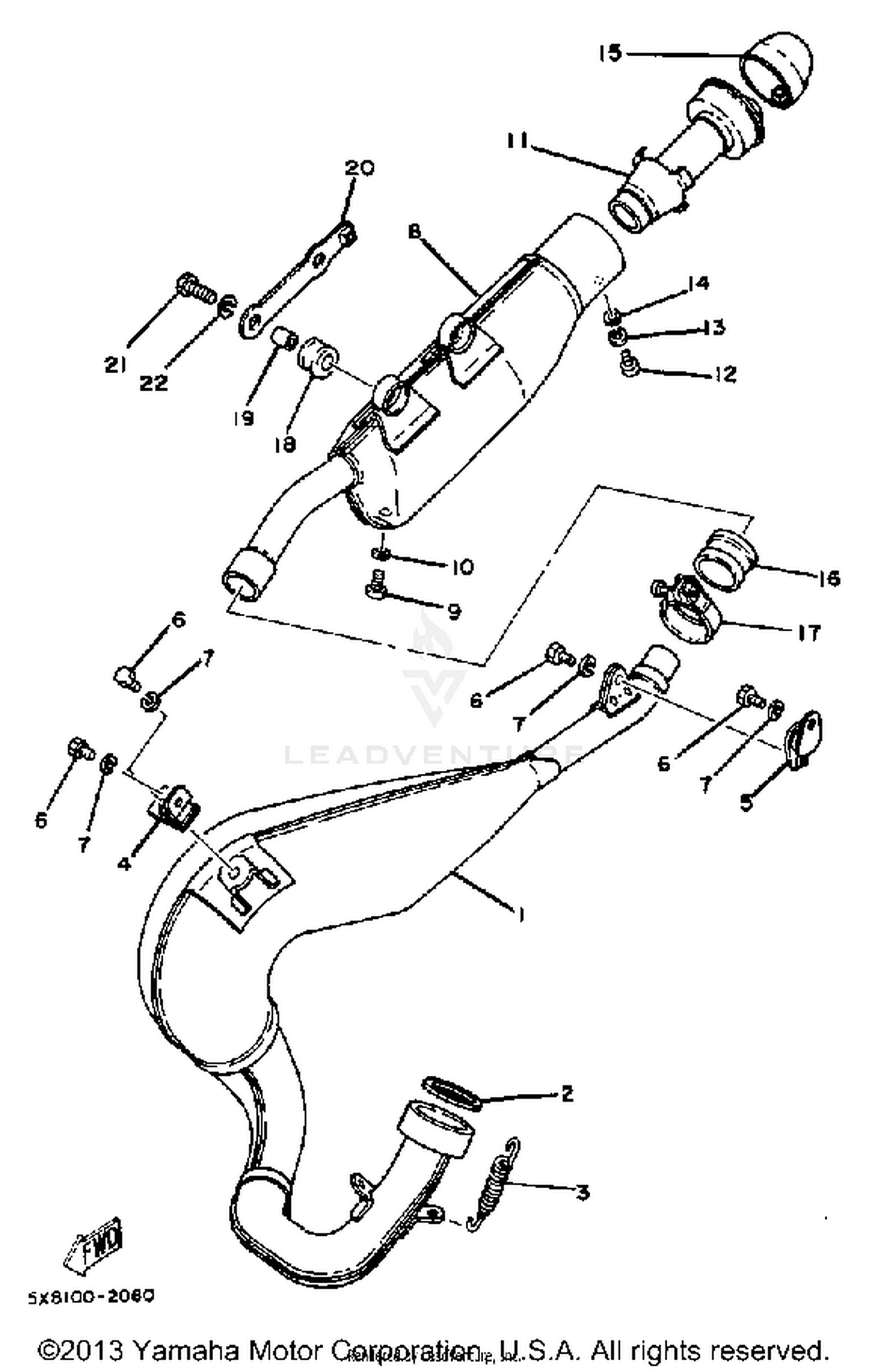

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
5X8-14610-00-00
|
$387.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXST PIPE
3R6-14613-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TENSION
90507-20030-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, MUFFLER 2
1M1-14772-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#5
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
SILENCER, EXHAUST
5X8-14753-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, OUTLET
5X8-14752-01-00
|
$100.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, SILENCER
1W2-14787-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#16
GASKET, MUFFLER
5X8-14714-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#17
CLAMP, HOSE
90460-39202-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-22269-00
|
$8.99 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-081A3-00
|
$5.99 | ||
|
Unavailable |
|||
|
#20
STAY, MUFFLER 1
5X8-14771-00-00
|
$3.20 | ||
|
Unavailable |
|||
|
#21
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
