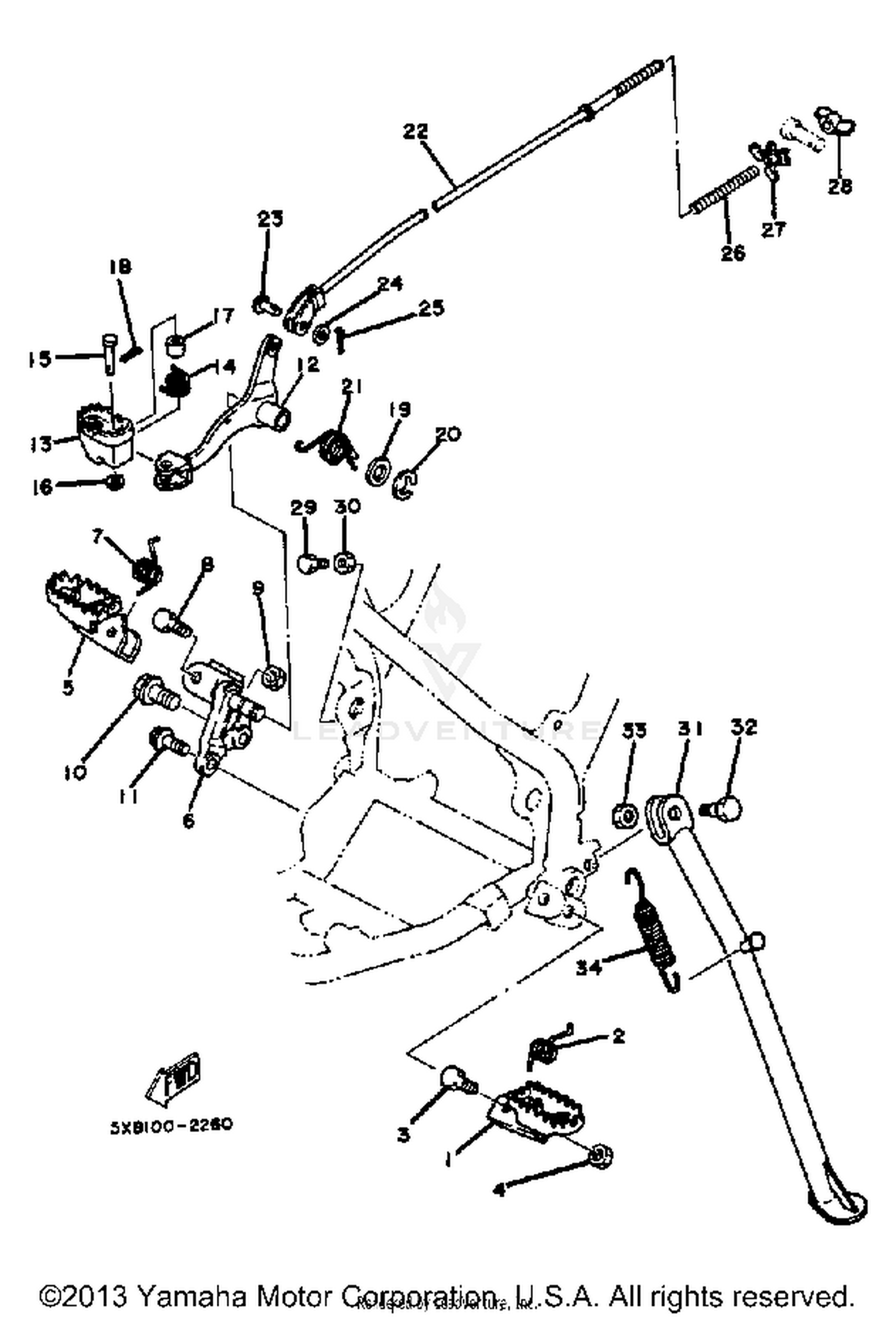

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST 1
5X3-27411-00-00
Superseded by 22W-27411-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-08428-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTREST 2 (3R1-27421-00)
4V4-27421-00-00
Superseded by 22W-27421-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, FOOTREST 2
5X3-27422-00-00
|
$49.33 | ||
|
Unavailable |
|||
|
#7
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
BOLT
90101-08428-00
|
$3.35 | ||
|
Unavailable |
|||
|
#9
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
BOLT, WASHER BASED
90105-12096-00
|
$3.15 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PEDAL, BRAKE
5Y0-27211-00-90
|
$33.99 | ||
|
Unavailable |
|||
|
#13
PEDAL, BRAKE
5X8-27242-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#14
SPRING, TORSION
90508-20451-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
PIN, CLEVIS
91701-08032-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-08762-00
Superseded by 90387-08785-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93430-09038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TORSION
90508-32544-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
ROD, BRAKE
5X8-27231-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#23
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAT, SPRING
1W2-27239-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#28
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
STAND, SIDE
5X8-27311-00-33
|
$48.99 | ||
|
Unavailable |
|||
|
#32
BOLT
90109-08032-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, TENSION
90507-29009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
