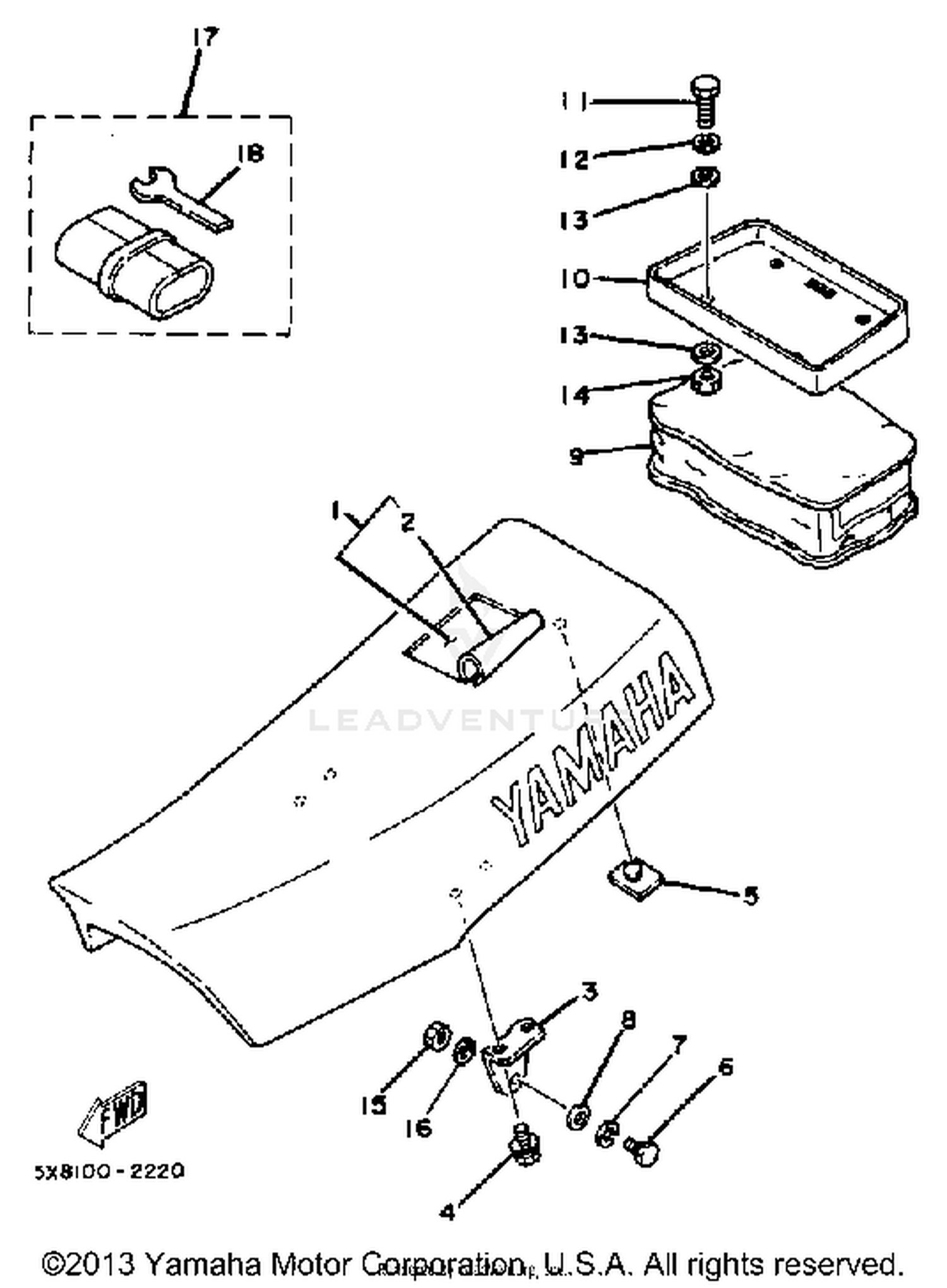

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEMI-DBL-SEAT ASSEMBLY
5X8-W2473-00-00
|
$181.99 | ||
|
Unavailable |
|||
|
#2
COVER, SM-DBL SEAT
5X8-24771-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
1W1-24738-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#4
BOLT
90101-06304-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, SEAT
509-24724-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
CARRIER BOX ASSEMBLY
4V5-24850-00-00
|
$161.99 | ||
|
Unavailable |
|||
|
#10
BRACKET, CARRIER 2
4V5-24833-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOOL KIT
1W2-W2810-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#18
SPANNER, SPECIAL
10V-28135-00-00
|
$41.99 | ||
|
Unavailable |
|||
