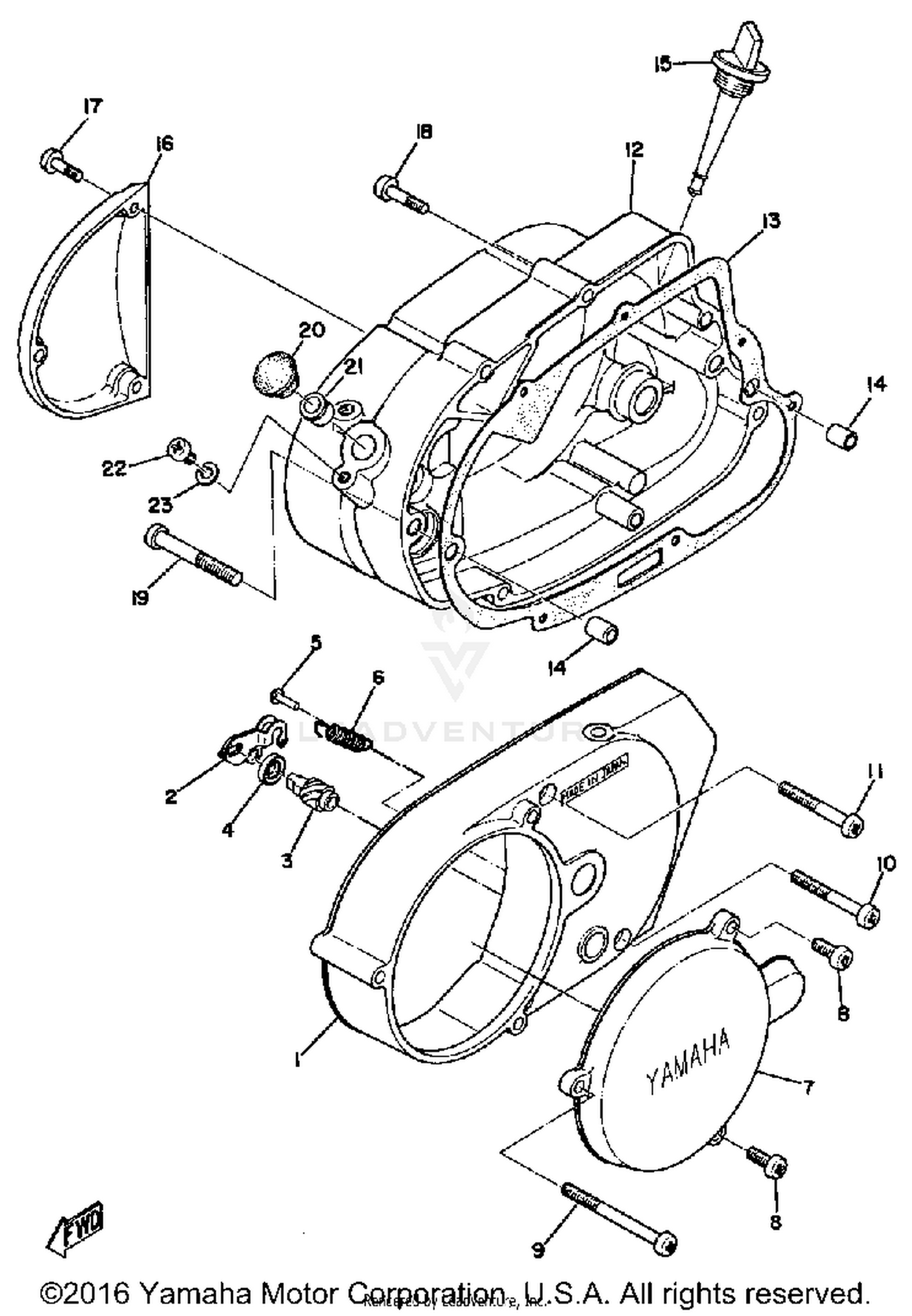

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE COVER ASSEMBLY L
382-W1541-60-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER, PUSH
276-16342-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PUSH
241-16341-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL, SO-TYPE
93104-10085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOOK, SPRING
132-16346-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-10019-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, 1
276-15415-00-00
Superseded by 276-15415-11-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW PAN HEAD
98580-06550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW PAN HEAD
98580-06545-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CRANKCASE R
276-15421-02-00
|
$74.99 | ||
|
Unavailable |
|||
|
#13
GASKET, CRCS COVER
3GY-15451-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, OIL LEVEL
315-15362-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, OIL PUMP
248-15416-01-Y4
|
$13.99 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW,PANHEAD
98580-06055-00
Superseded by 98580-06555-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG
90338-16015-00
Superseded by 90338-16029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, SOLID
90381-08002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
