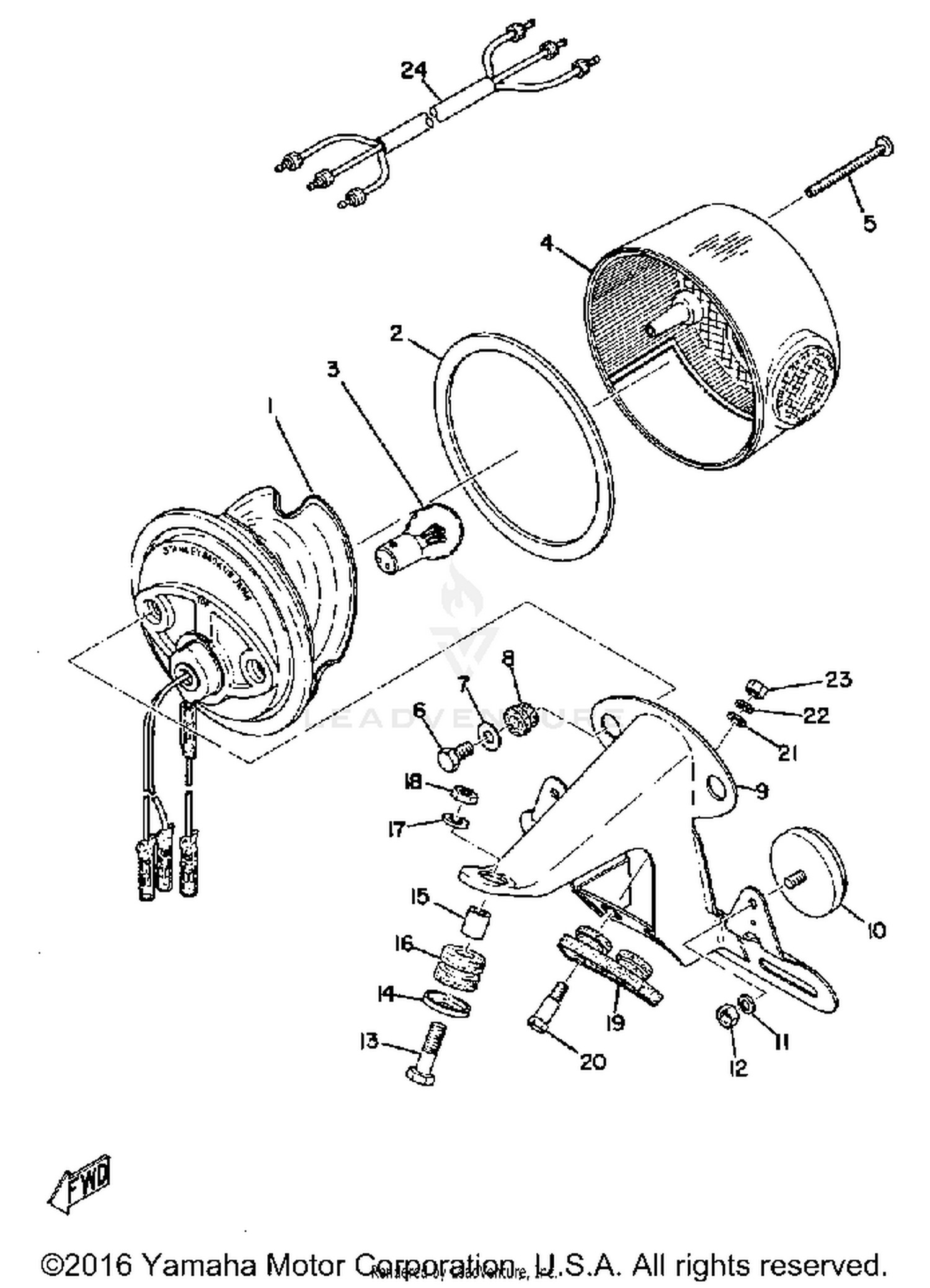

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
TAILLIGHT UNIT ASSY
275-84510-61-00
|
$67.99 | ||
|
Unavailable |
|||
|
#1
BASE, TAILLIGHT
275-84511-61-00
|
$28.99 | ||
|
Unavailable |
|||
|
#2
GASKET, LENS
275-84523-60-00
|
$9.20 | ||
|
Unavailable |
|||
|
#3
BULB 6V21CP(1154)
122-84514-30-00
Superseded by 122-84514-30-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
275-84521-60-00
|
$15.18 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98501-04050-00
Superseded by 98507-04050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
479-84526-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#7
WASHER, SPECIAL
2H7-84754-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
275-84527-60-00
|
$6.68 | ||
|
Unavailable |
|||
|
#9
BRACKET, LICENSE
444-84751-60-20
|
$47.99 | ||
|
Unavailable |
|||
|
#10
REFLECTOR, FRONT 1
278-85111-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
90209-06095-00
Superseded by 90209-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-065L7-00
Superseded by 90387-06026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER
214-84553-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90109-06017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#24
CORD, TAILLIGHT
277-84517-60-00
|
$5.24 | ||
|
Unavailable |
|||
