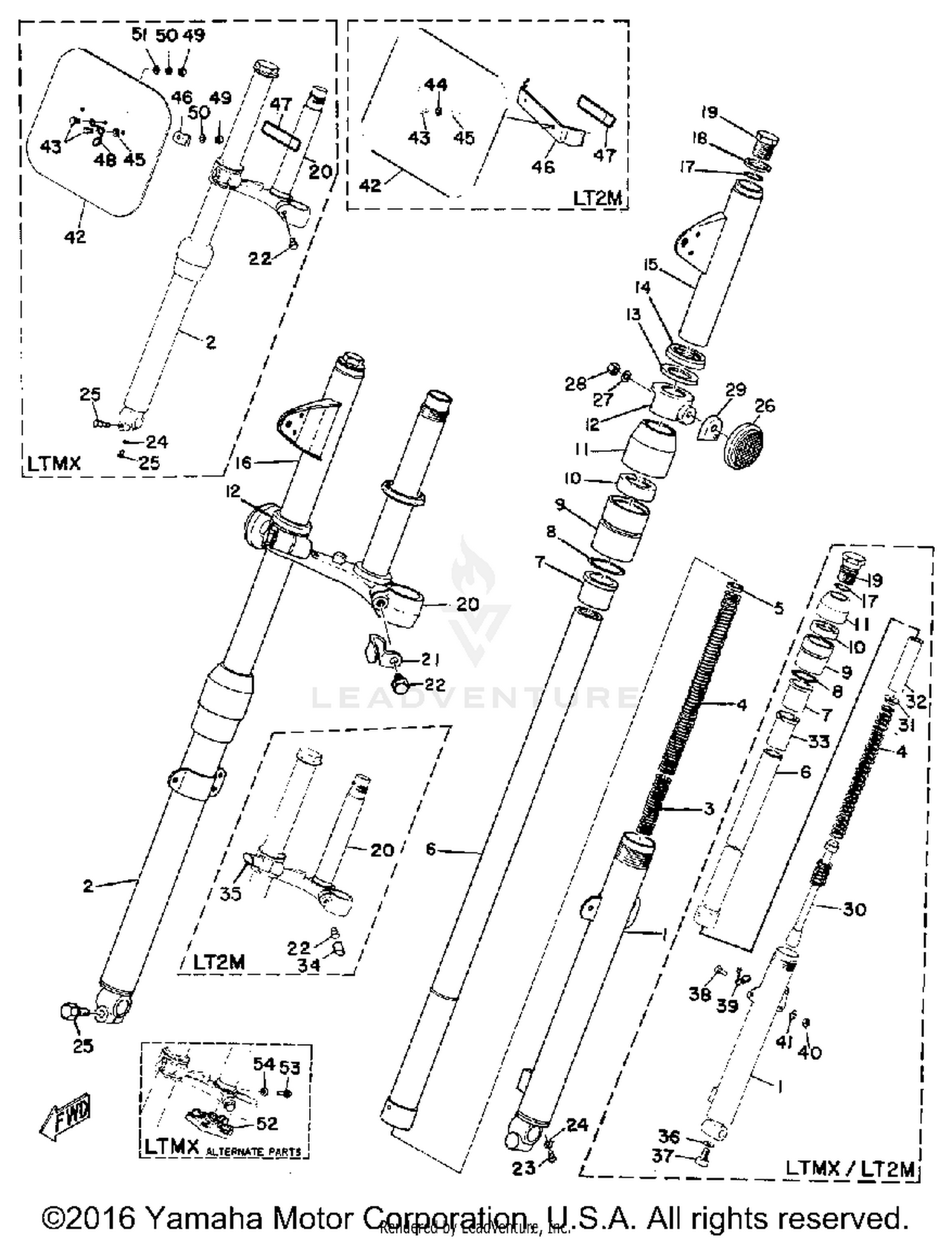

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
FRONT FORK ASSY
305-23100-60-01
|
$309.99 | ||
|
Unavailable |
|||
|
#
FRONT FORK ASSY
263-23101-02-35
|
$227.99 | ||
|
Unavailable |
|||
|
#1
TUBE, OUTER 1
276-23126-50-35
|
$64.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
248-23126-00-35
|
$59.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
276-23136-50-35
|
$49.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 2
248-23136-00-35
|
$65.99 | ||
|
Unavailable |
|||
|
#3
SPRING, REBOUND
276-23151-50-00
|
$7.68 | ||
|
Unavailable |
|||
|
#4
SPRING, FRONT FORK
318-23141-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
276-23141-50-00
|
$17.60 | ||
|
Unavailable |
|||
|
#5
WASHER, SPRING UPR
276-23149-50-00
|
$6.66 | ||
|
Unavailable |
|||
|
#6
TUBE, INNER 1
276-23124-50-00
|
$101.99 | ||
|
Unavailable |
|||
|
#
TUBE, INNER 1
248-23124-01-00
|
$103.99 | ||
|
Unavailable |
|||
|
#7
METAL, SLIDE 1
137-23125-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#
METAL, SLIDE 1
357-23125-90-00
|
$13.49 | ||
|
Unavailable |
|||
|
#8
O-RING
122-23147-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#
O-RING
137-23147-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#9
OUTER NUT
196-23150-41-00
|
$35.99 | ||
|
Unavailable |
|||
|
#
OUTER NUT
193-23150-40-00
|
$22.99 | ||
|
Unavailable |
|||
|
#10
OIL SEAL
137-23145-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#
OIL SEAL (5R6)
276-23145-51-00
Superseded by 93110-27010-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
276-23144-50-00
|
$19.54 | ||
|
Unavailable |
|||
|
#
SEAL, DUST
248-23144-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, OUTER 1
277-23122-61-00
|
$15.26 | ||
|
Unavailable |
|||
|
#13
GASKET
164-23163-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, COVER LOWER
276-23116-50-00
|
$3.16 | ||
|
Unavailable |
|||
|
#15
COVER, UPPER 1
276-23121-50-64
|
$14.64 | ||
|
Unavailable |
|||
|
#
COVER, UPPER 1
276-23121-50-R3
|
$17.94 | ||
|
Unavailable |
|||
|
#16
COVER, UPPER 2
276-23131-50-R3
|
$21.92 | ||
|
Unavailable |
|||
|
#
COVER,UPPER 2
276-23131-50-64
|
$14.64 | ||
|
Unavailable |
|||
|
#17
GASKET
307-23114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PACKING
146-23114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, CAP
276-23112-50-00
|
$16.99 | ||
|
Unavailable |
|||
|
#
WASHER
177-23112-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#19
BOLT, CAP
2K5-23111-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#
BOLT, CAP
205-23111-40-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
UNDER BRACKET
248-23340-51-33
|
$98.99 | ||
|
Unavailable |
|||
|
#
UNDER BRACKET
305-23340-20-33
|
$57.99 | ||
|
Unavailable |
|||
|
#21
HOLDER, CABLE 1
256-23318-60-00
|
$3.30 | ||
|
Unavailable |
|||
|
#22
BOLT, WITH WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT 1
5J0-23346-00-00
Superseded by 122-23346-02-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WITH WASHER
90119-08010-00
|
$2.65 | ||
|
Unavailable |
|||
|
#26
REFLECTOR, FRONT 1
341-85111-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, REFLECTOR STAY
256-23162-60-00
|
$3.36 | ||
|
Unavailable |
|||
|
#30
CYLINDER, FRONT FORK
248-23170-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#31
SEAT, SPRING UPPER
248-23142-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#32
SPACER
248-23118-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#33
SPACER, OIL LOCK
248-23166-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#34
STAY, PLATE FTNG 1
263-21581-00-00
|
$0.68 | ||
|
Unavailable |
|||
|
#35
STAY, PLATE FTNG 2
263-21591-00-00
|
$0.68 | ||
|
Unavailable |
|||
|
#36
GASKET
214-23158-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
91311-08020-00
Superseded by 91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOLDER, CABLE 2
318-23319-00-00
|
$0.37 | ||
|
Unavailable |
|||
|
#40
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLATE, NUMBER
263-23485-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#43
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#44
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#45
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
STAY, PLATE
318-23487-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#
STAY, PLATE
263-23487-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#47
O-RING
93210-67057-00
|
$1.49 | ||
|
Unavailable |
|||
|
#
O-RING
93210-99103-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOLDER, CABLE 2
318-23319-00-00
|
$0.37 | ||
|
Unavailable |
|||
|
#49
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#50
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#51
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
