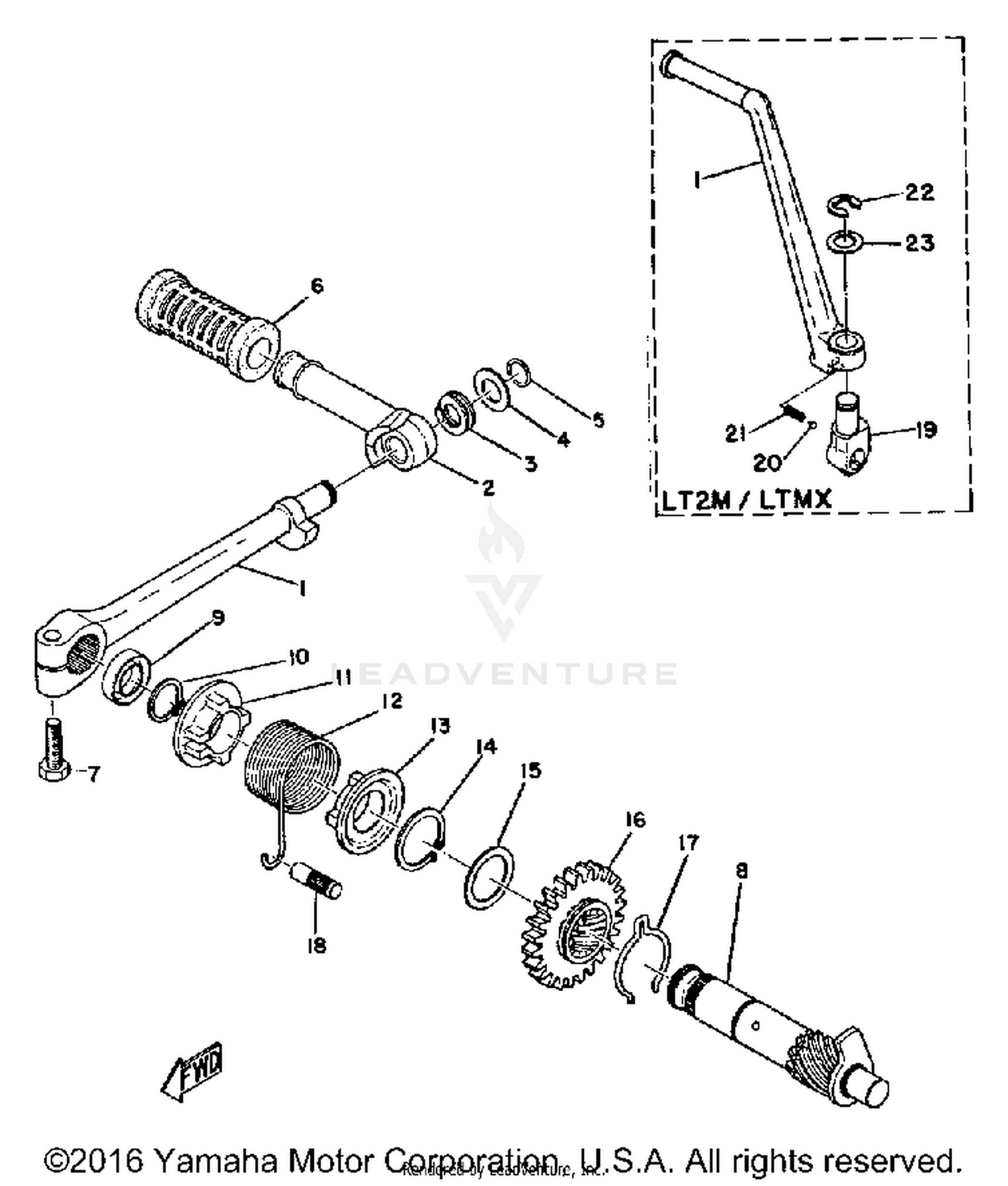

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANK,KICK
2F3-15611-00-93
Superseded by 278-15611-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#
KICK CRANK ASSY
21W-15620-00-00
Superseded by 4BC-15620-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER, KICK
214-15612-09-00
|
$15.49 | ||
|
Unavailable |
|||
|
#3
SPRING, COMPRESSION
90504-18031-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,SPEC'L SHAPE
90209-10108-00
Superseded by 90209-10210-00
|
$2.35 | ||
|
Unavailable |
|||
|
#5
CIRCLIP, OUTER
93440-10028-00
|
$2.55 | ||
|
Unavailable |
|||
|
#6
COVER, KICK LEVER
156-15618-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
KICK AXLE ASSY
99999-01740-00
|
$187.99 | ||
|
Unavailable |
|||
|
#9
OIL SEAL
93109-15001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SPRING
132-15676-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TORSION
90508-26136-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, SPRING
132-15664-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93410-25017-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, KICK
251-15641-01-00
|
$62.99 | ||
|
Unavailable |
|||
|
#17
CLIP
90468-26048-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER, KICK SPRING
257-15668-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOSS, KICK CRANK
337-15621-01-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BALL 7-32
93507-32031-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, COMPRESSION
90501-12081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-15234-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
