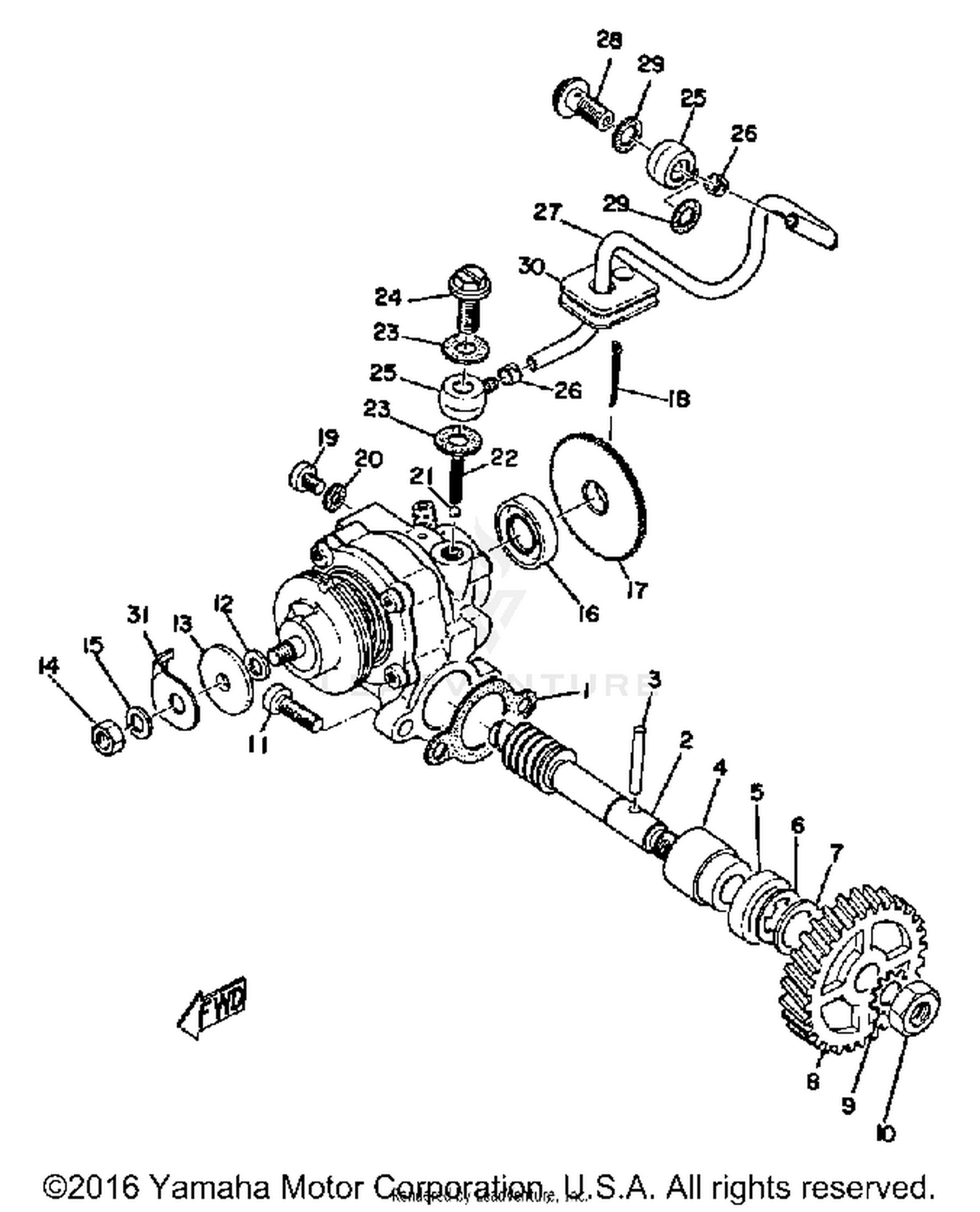

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
OIL PUMP ASSY COMPLETE
276-13101-01-00
|
$126.99 | ||
|
Unavailable |
|||
|
#
OIL PUMP ASSY COMPLETE
304-13101-01-00
|
$91.47 | ||
|
Unavailable |
|||
|
#1
GASKET, PUMP CASE
3MT-13116-00-00
Superseded by 126-13116-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, WORM
214-13175-01-00
|
$17.38 | ||
|
Unavailable |
|||
|
#
SHAFT, WORM
275-13175-01-00
Superseded by 275-13175-02-00
|
$23.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
93603-22028-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
METAL, WORM SHAFT OUTER
1E7-13176-00-00
Superseded by 137-13176-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93101-10002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP, E-TYPE
93430-08007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-105J4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, PUMP DRIVE
248-13178-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,EX.TOOTH
92901-08400-00
Superseded by 92990-08400-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM (T=0.1MM)
137-13137-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, ADJUSTING
137-13138-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93101-10090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, STARTER
137-13128-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#18
PIN, COTTER
91401-12018-00
|
$2.55 | ||
|
Unavailable |
|||
|
#19
SCREW, BIND
98901-04008-00
Superseded by 98980-04008-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
90430-04004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
93505-32002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, COMPRESSION
90501-02017-00
|
$1.05 | ||
|
Unavailable |
|||
|
#23
GASKET
90430-06011-00
Superseded by 90430-06224-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, UNION
90401-06001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BANJO, DELIVRY PIPE
214-13162-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90468-02033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE (L200)
90445-052F5-00
Superseded by 90445-05N13-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, UNION
90401-06001-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
GASKET
90430-06011-00
Superseded by 90430-06224-00
|
$4.90 | ||
|
Unavailable |
|||
|
#30
HOLDER, OIL PIPE
248-13174-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER
402-13146-00-00
|
$2.20 | ||
|
Unavailable |
|||
