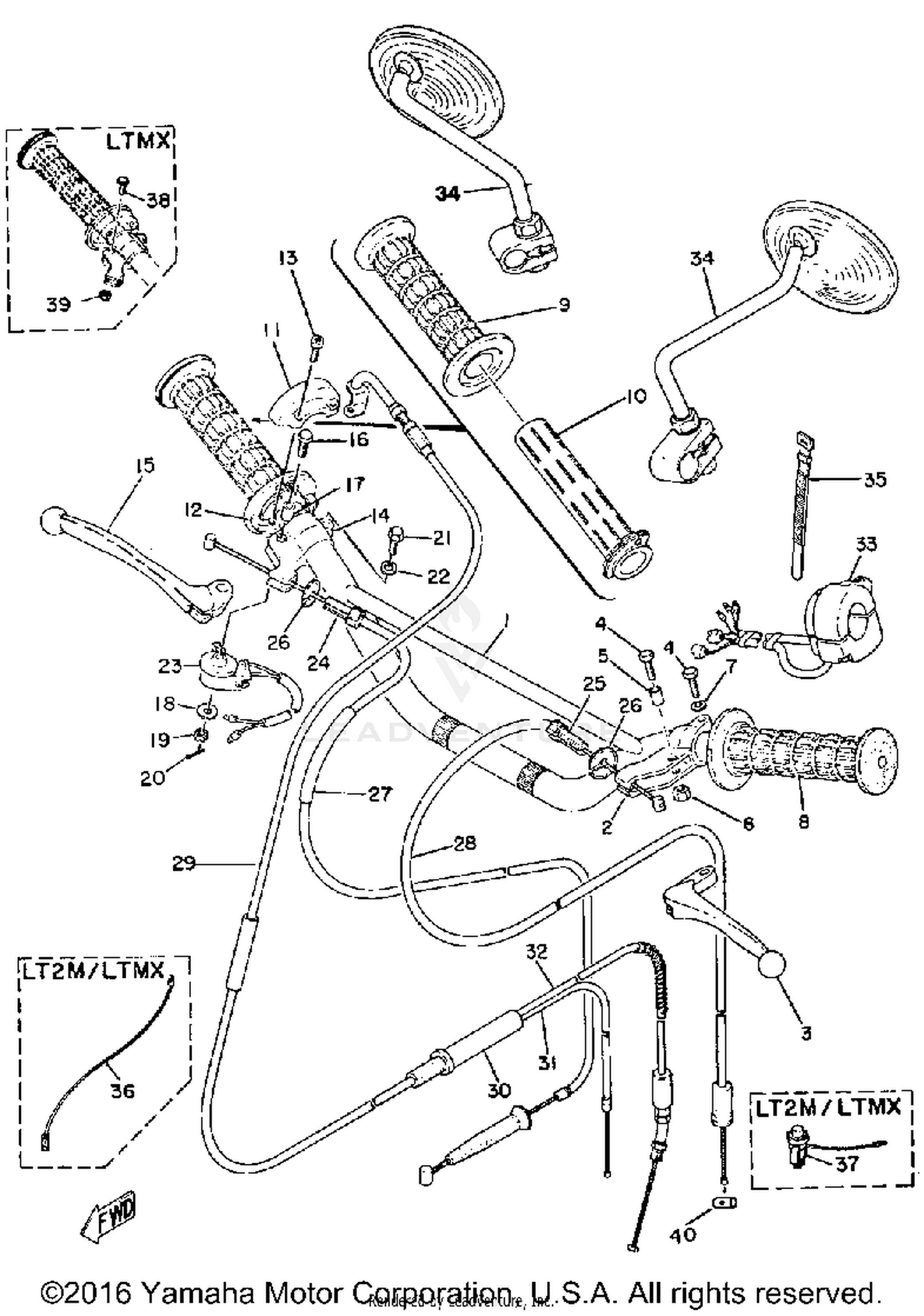

Handle Wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
LEVER HOLDER ASSY 1
214-82910-07-00
|
$51.99 | ||
|
Unavailable |
|||
|
#
LEVER HOLDER ASSY 2
233-82920-32-00
|
$48.99 | ||
|
Unavailable |
|||
|
#1
HANDLEBAR
438-26111-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#
HANDLEBAR
304-26111-40-00
|
$32.66 | ||
|
Unavailable |
|||
|
#2
HOLDER, LEVER 1
214-82911-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER, LEFT
214-83912-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, LEVER 1
214-83913-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRIP LH
214-26241-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#9
GRIP RH
1A0-26242-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, THROTLE GUIDE
214-26243-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, GRIP UPPER
214-26281-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#12
CAP, GRIP LOWER
214-26282-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-05020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, LEVER 2
233-82921-31-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER RIGHT
233-83922-30-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-05197-00
|
$8.99 | ||
|
Unavailable |
|||
|
#17
COLLAR, LEVER 1
214-83913-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SLTED
95301-05900-00
Superseded by 95307-05900-00
|
$2.10 | ||
|
Unavailable |
|||
|
#20
PIN, COTTER
91401-12018-00
|
$2.55 | ||
|
Unavailable |
|||
|
#21
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
STOP SWITCH ASSY
232-83980-30-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90123-08013-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
CABLE, BRAKE
276-26341-00-00
|
$18.70 | ||
|
Unavailable |
|||
|
#28
CABLE, CLUTCH
497-26335-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CABLE, CLUTCH
304-26335-00-00
|
$19.34 | ||
|
Unavailable |
|||
|
#29
CABLE, THROTTLE 1
497-26311-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#
CABLE, THROTTLE 1
304-26311-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#30
CONNECTOR, CABLE
214-26261-00-00
Superseded by 214-26261-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
CABLE, THROTTLE 2
276-26312-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#
CABLE, THROTTLE 2
248-26312-00-00
|
$6.24 | ||
|
Unavailable |
|||
|
#32
CABLE, PUMP
248-26321-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#33
SWITCH, HANDLE 3
233-83973-00-94
|
$83.99 | ||
|
Unavailable |
|||
|
#34
MIRROR ASSY LEFT
257-26290-10-00
|
$3.96 | ||
|
Unavailable |
|||
|
#
MIRROR ASSEMBLY
257-26290-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#35
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WIRE, SUB-LEAD
335-82319-00-00
|
$0.89 | ||
|
Unavailable |
|||
|
#37
SWITCH, HANDLE 1
322-83976-00-00
|
$19.28 | ||
|
Unavailable |
|||
|
#38
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
NUT
95380-06700-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
END, CABLE
164-26363-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
