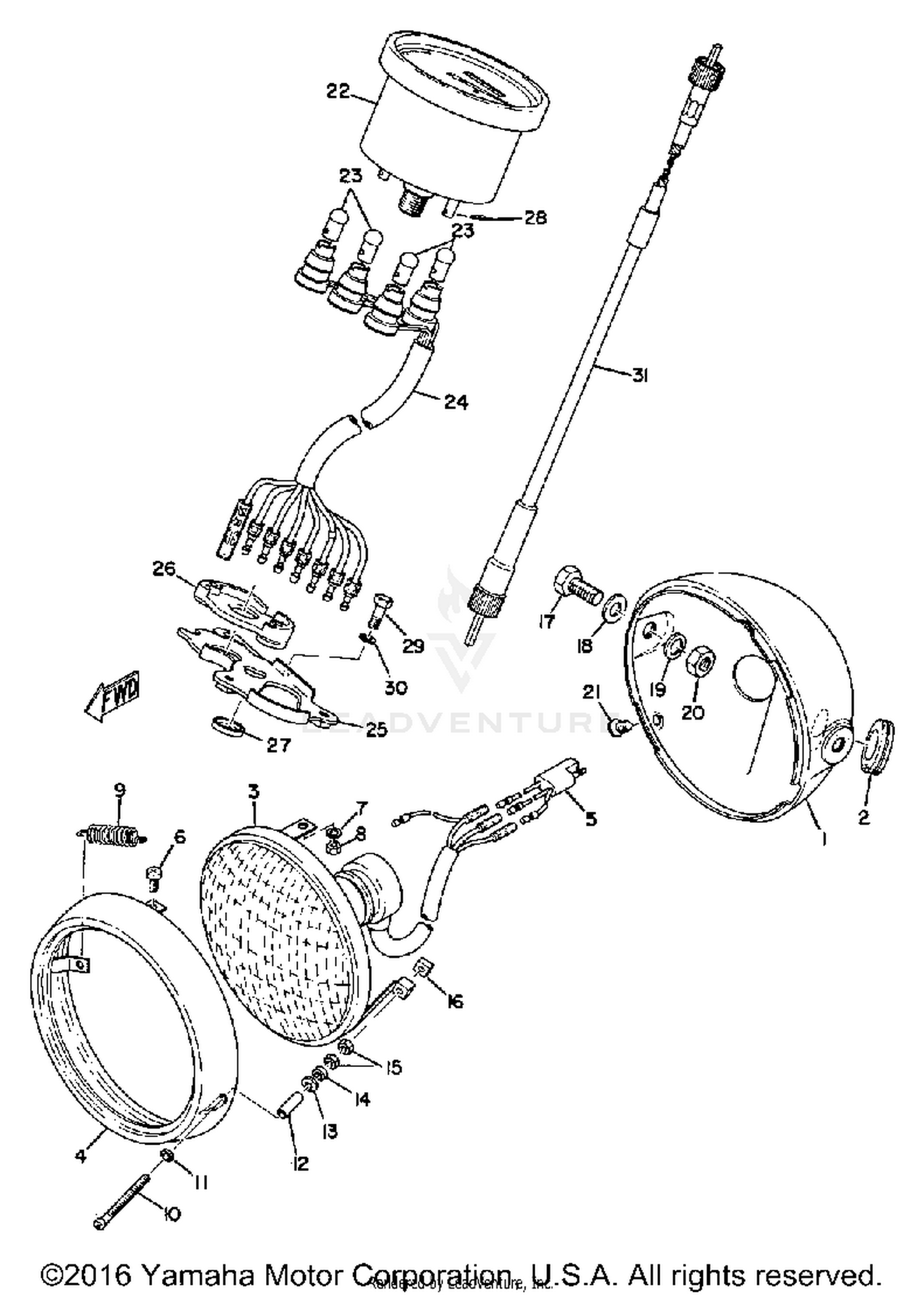

1972 Yamaha LT2 HEAD LAMP SPEEDOMETER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY, HEADLIGHT
277-84130-60-64
|
$19.49 | ||
|
Unavailable |
|||
|
#2
GROMMET, WIRE HARNESS
150-84153-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASY
277-84120-60-00
|
$42.02 | ||
|
Unavailable |
|||
|
#4
RIM, HEADLIGHT
261-84315-61-00
|
$31.41 | ||
|
Unavailable |
|||
|
#5
CORD, HEADLIGHT
214-84159-61-00
|
$7.49 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98580-04010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95301-04700-00
Superseded by 95380-04700-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
132-84335-60-00
|
$3.05 | ||
|
Unavailable |
|||
|
#10
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPECIAL
233-84127-60-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SCREW
233-84133-60-00
|
$3.10 | ||
|
Unavailable |
|||
|
#13
WASHER
92990-04200-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER
132-84328-60-00
|
$4.58 | ||
|
Unavailable |
|||
|
#15
NUT
95301-04700-00
Superseded by 95380-04700-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95333-08600-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, COUNTERSUNK
90152-05005-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPEEDOMETER ASSY
305-83510-60-00
|
$99.16 | ||
|
Unavailable |
|||
|
#23
BULB
122-83516-10-00
Superseded by 122-83516-10-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SOCKET CORD ASSY
305-83520-60-00
|
$21.34 | ||
|
Unavailable |
|||
|
#25
BRACKET, METER
276-83519-01-33
|
$3.96 | ||
|
Unavailable |
|||
|
#26
DAMPER
237-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPECIAL SHAPE
90209-05029-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90468-10050-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPEEDOMETER CABLE AS
3J0-83550-00-00
Superseded by 1JN-83550-02-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
