1972 Yamaha LT2 Rear Arm Chaincase Rear Cushion OEM Parts

Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
< Back to Assembly Types

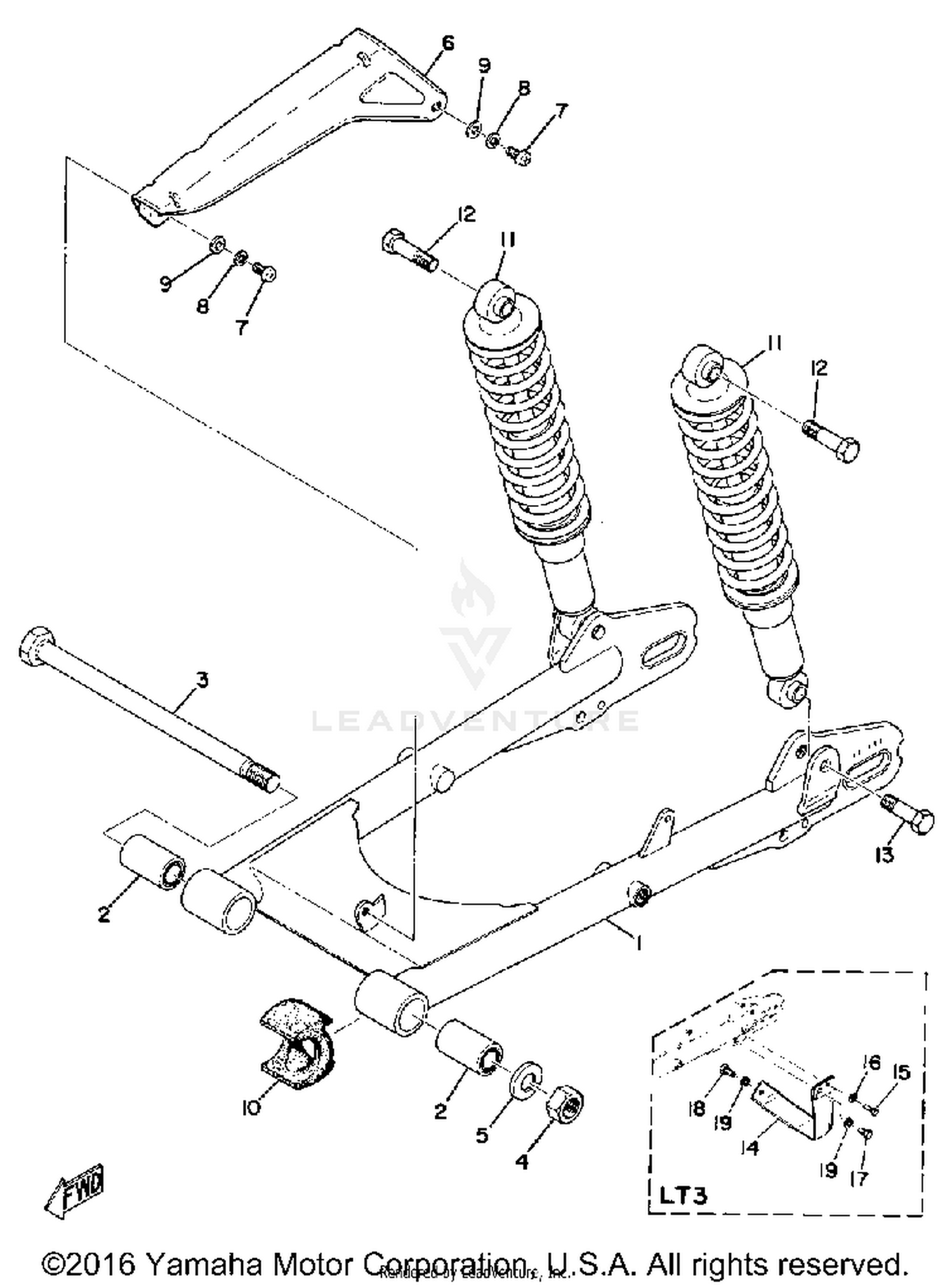

Rear Arm Chaincase Rear Cushion Diagram

Item MSRP Qty
#1 REAR ARM
305-22110-00-33
 $118.99
Unavailable
#2 BUSH 1
276-22123-00-00
 $36.99
Available to order.
Add to View Price
#3 SHAFT, PIVOT
276-22141-00-00
 $11.24
Unavailable
#4 NUT
95303-12600-00
Superseded by 95304-12600-00
 $7.49
Available to order.
Add to View Price
#5 WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
 $7.49
Available to order.
Add to View Price
#6 CASE, CHAIN
304-22311-00-35
 $18.22
Unavailable
#7 SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
 $2.80
Available to order.
Add to View Price
#8 WASHER, SPRING
92990-05100-00
 $0.30
Available to order.
Add to View Price
#9 WASHER, PLAIN
92990-05200-00
 $4.65
Available to order.
Add to View Price
#10 SEAL, GUARD
304-22151-00-00
 $3.76
Unavailable
#11 SHOCK ABS ASSY, REAR
291-22210-71-00
 $215.99
Unavailable
# SHOCK ABS ASSY, REAR
305-22210-20-00
 $171.99
Unavailable
#12 BOLT, DOME HEAD
90106-10026-00
 $2.80
Unavailable
#13 BOLT, DOME HEAD
90106-10025-00
 $5.49
Available to order.
Add to View Price
#14 GUARD, CHAIN
248-22318-00-33
 $8.06
Unavailable
#15 BOLT
97011-06020-00
Superseded by 97017-06020-00
 $3.90
Available to order.
Add to View Price
#16 WASHER, SPRING
92995-06100-00
 $3.20
Available to order.
Add to View Price
#17 BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
 $3.10
Available to order.
Add to View Price
#18 BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
 $1.10
Available to order.
Add to View Price
#19 WASHER, SPRING
92990-08100-00
 $5.49
Available to order.
Add to View Price
