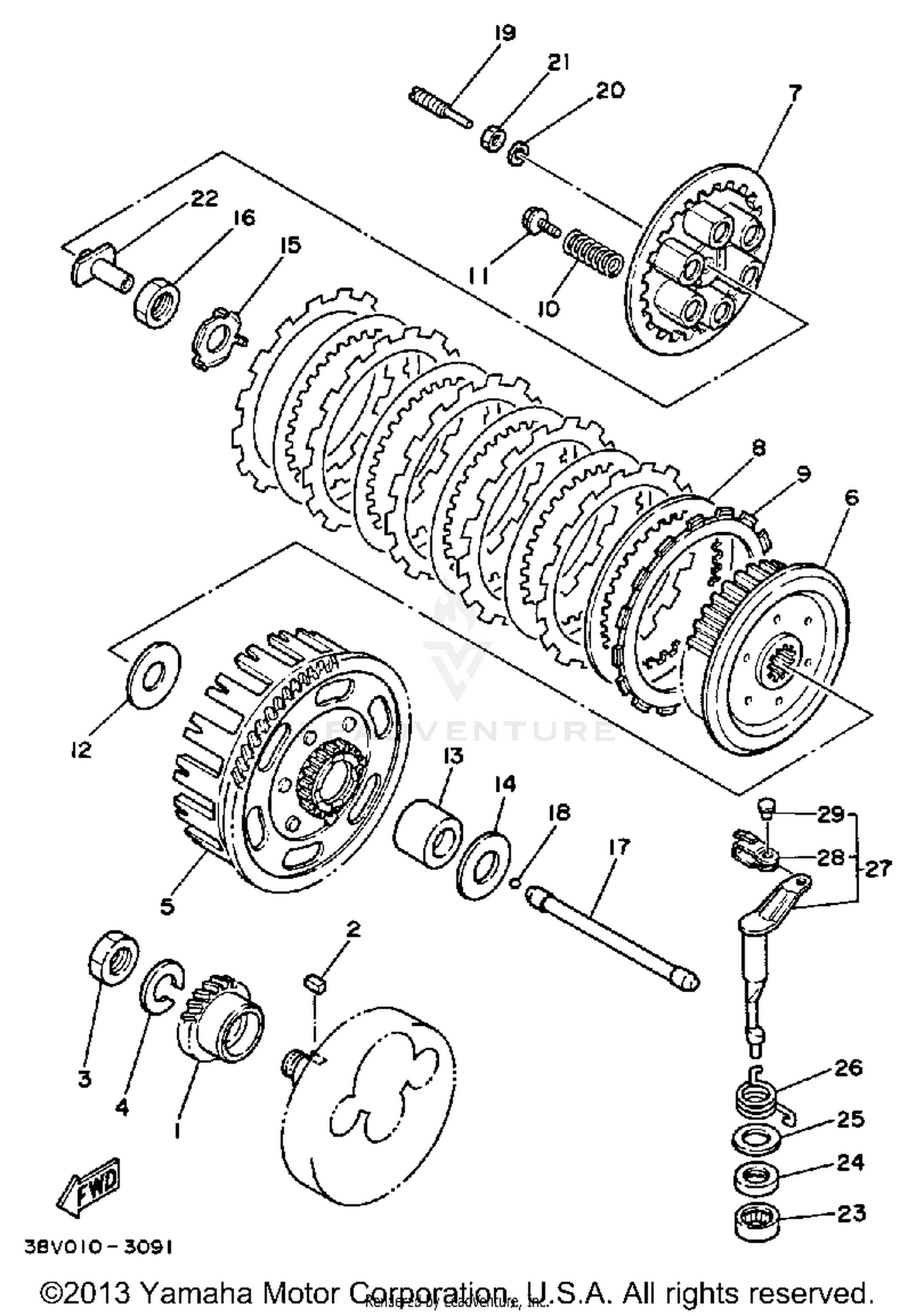

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
38V-16111-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#2
KEY, STRAIGHT
90282-07019-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90170-18089-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
WASHER(N15)
92901-18100-00
Superseded by 92907-18100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRIMARY DRIVN GEAR
38V-16150-00-00
|
$133.99 | ||
|
Unavailable |
|||
|
#6
BOSS, CLUTCH
38V-16371-00-00
|
$93.73 | ||
|
Unavailable |
|||
|
#7
PLATE, PRESSURE 1
38V-16351-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#8
PLATE, CLUTCH 2
4H7-16325-00-00
Superseded by 168-16325-10-00
|
$13.99 | ||
|
Unavailable |
|||
|
#9
PLATE, FRICTION
5X5-16321-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-236A3-00
|
$3.15 | ||
|
Unavailable |
|||
|
#11
SCREW, WITH WASHER
90159-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, THRUST 1
2K7-16154-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER 1
2K7-16181-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#14
PLATE, THRUST 1
2K7-16154-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#15
WASHER, LOCK
90215-20212-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-20255-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
2K7-16357-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#18
BALL
93515-32029-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, SPEC''L SHAPE
90149-06123-00
|
$3.95 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, PUSH 1
23X-16356-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#23
BEARING, CYLINDRICAL
93315-21721-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-17263-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-17327-00
Superseded by 90201-18262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TORSION 46Y
90508-14664-00
|
$3.70 | ||
|
Unavailable |
|||
|
#27
PUSH LEVER ASSEMBLY
38V-16380-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#28
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN
90243-06016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
