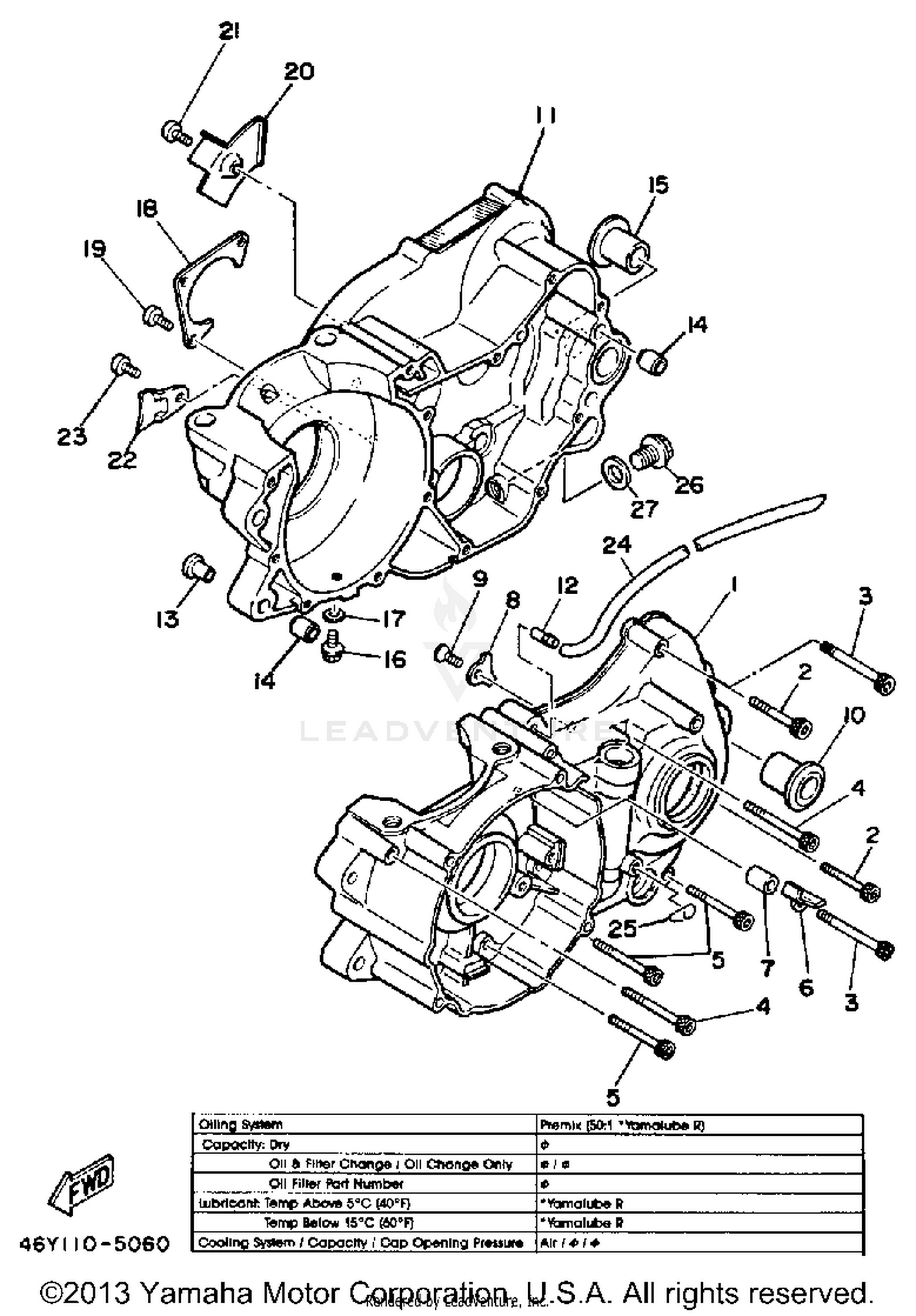

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
38V-15111-01-00
|
$257.99 | ||
|
Unavailable |
|||
|
#2
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-06070-00
Superseded by 91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91316-06055-00
Superseded by 91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
91316-06045-00
Superseded by 91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP (46Y)
90465-16279-00
|
$9.39 | ||
|
Unavailable |
|||
|
#7
COLLAR
90387-06030-00
Superseded by 90387-060N3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, BEARING COVER
3AK-15383-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
|
#10
COLLAR
90387-160H4-00
|
$17.49 | ||
|
Unavailable |
|||
|
#11
CRANKCASE 2
38V-15121-01-00
|
$548.99 | ||
|
Unavailable |
|||
|
#12
CONNECTOR, SUCTION PIPE
137-13115-00-00
Superseded by 137-13115-01-00
|
$4.99 | ||
|
Unavailable |
|||
|
#13
PLUG
90338-07011-00
Superseded by 90338-07124-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-160H4-00
|
$17.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
90430-06192-00
Superseded by 90430-06166-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, BEARING COVER
23X-15381-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER
3R4-15118-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE
5X5-15113-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#24
HOSE (L460)
90445-081A0-00
Superseded by 90445-083J5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90465-20035-00
|
$5.99 | ||
|
Unavailable |
|||
|
#26
PLUG, STRAIGHT SCREW
90340-12097-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
