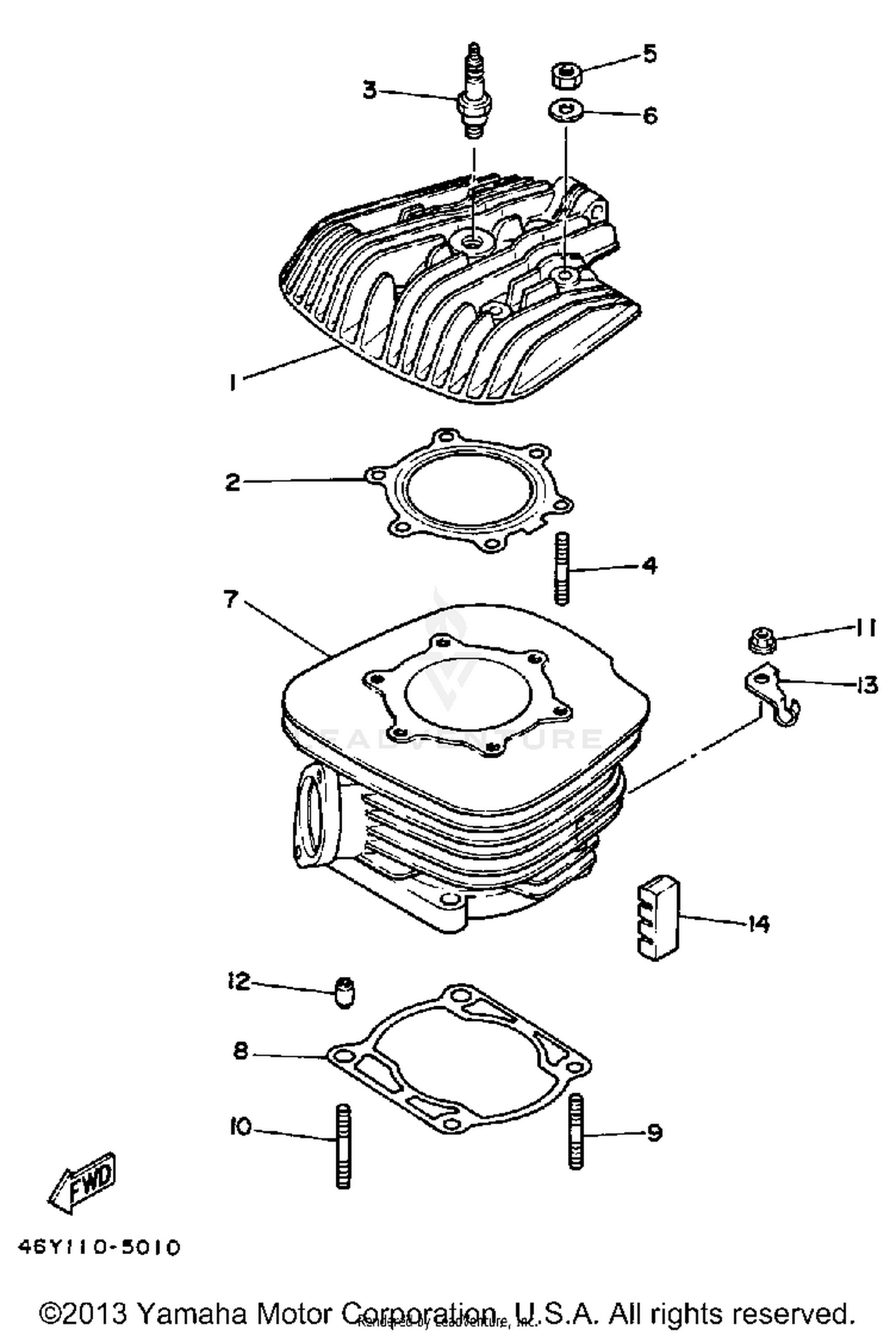

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
46Y-11111-00-00
|
$265.99 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER HEAD 1
46Y-11181-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#3
NGK BP6EV 4PK
NGK-BP6EV-00-00
|
$8.95 | ||
|
Unavailable |
|||
|
#4
BOLT, STUD
90116-08394-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-08649-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CYLINDER 1
46Y-11311-00-00
|
$884.99 | ||
|
Unavailable |
|||
|
#8
GASKET,CYLINDER
46Y-11351-01-00
Superseded by 46Y-11351-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
BOLT, STUD
90116-10313-00
|
$4.15 | ||
|
Unavailable |
|||
|
#10
BOLT, STUD
90116-10314-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER 1
38V-1131E-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#14
ABSORBER 2
3R6-11162-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
