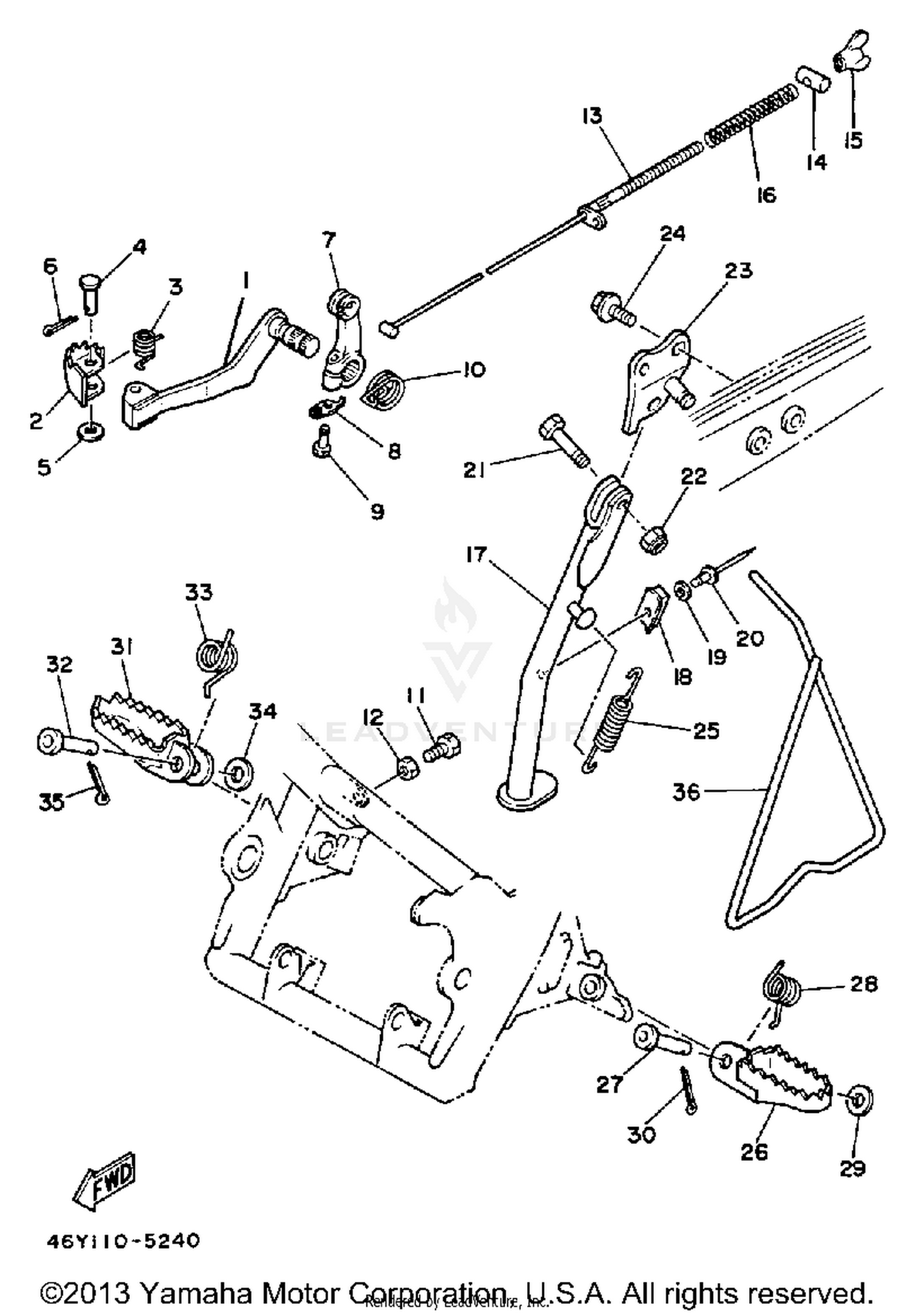

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
44J-27211-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#2
PEDAL, BRAKE
3R8-27242-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#3
SPRING, TORSION
90508-14429-00
|
$4.50 | ||
|
Unavailable |
|||
|
#4
PIN, CLEVIS
91701-06028-00
Superseded by 91702-06028-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER, BRAKE PEDAL
53Y-27252-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#8
HOOK
53Y-27254-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#9
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TORSION 46Y
90508-23636-00
|
$7.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE, BRAKE
38V-26351-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#14
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, WING
90175-06016-00
Superseded by 90175-06013-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESS46Y
90501-090A7-00
|
$2.60 | ||
|
Unavailable |
|||
|
#17
STAND, SIDE
38V-27311-20-35
|
$88.99 | ||
|
Unavailable |
|||
|
#18
DAMPER, RUBBER 1
34K-21485-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-044H9-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
RIVET, BLIND
90267-40075-00
Superseded by 90267-40080-00
|
$4.55 | ||
|
Unavailable |
|||
|
#21
BOLT
90109-08666-00
Superseded by 90109-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SELF-LOCKING
90185-08055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, SIDE STAND
38V-27321-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#24
BOLT, WASHER BASED
90105-08287-00
|
$2.20 | ||
|
Unavailable |
|||
|
#25
SPRING, TENSION
90506-25047-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
FOOTREST 1
38V-27411-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#27
PIN, CLEVIS
90240-10101-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, TORSION 46Y
90508-20634-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-10119-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
FOOTREST 2
38V-27421-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#32
PIN, CLEVIS
90240-10101-00
|
$11.49 | ||
|
Unavailable |
|||
|
#33
SPRING, TORSION 46Y
90508-20635-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-10119-00
|
$4.35 | ||
|
Unavailable |
|||
|
#35
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#36
STAND, SIDE
38V-27311-11-00
|
$20.99 | ||
|
Unavailable |
|||
