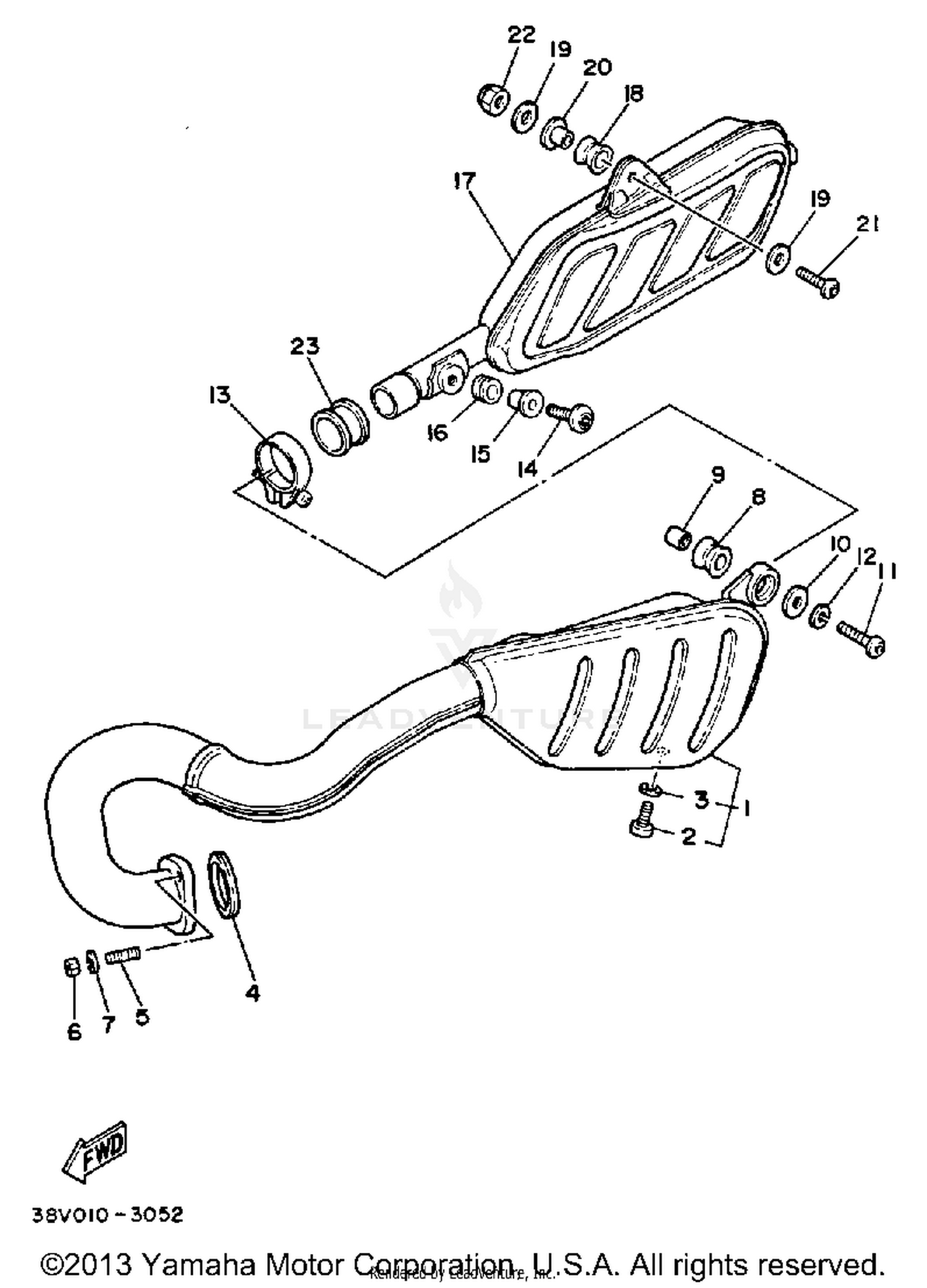

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY 1
38V-14610-00-00
|
$430.99 | ||
|
Unavailable |
|||
|
#2
SCREW, BIND
98906-06008-00
Superseded by 98907-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,EXHAUSTPIPE
38V-14613-00-00
Superseded by 38V-14613-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#5
BOLT, STUD
90116-08042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-126L9-00
Superseded by 90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08795-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#13
CLAMP, HOSE
90460-39202-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-08096-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR (46Y)
90387-093H1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER 1
168-21638-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SILENCER ASSEMBLY
46Y-14750-00-00
|
$329.99 | ||
|
Unavailable |
|||
|
#18
DAMPER, MUFFLER
565-14747-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
COLLAR 46Y
90387-081K6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, MUFFLER
5X8-14714-00-00
|
$54.99 | ||
|
Unavailable |
|||
