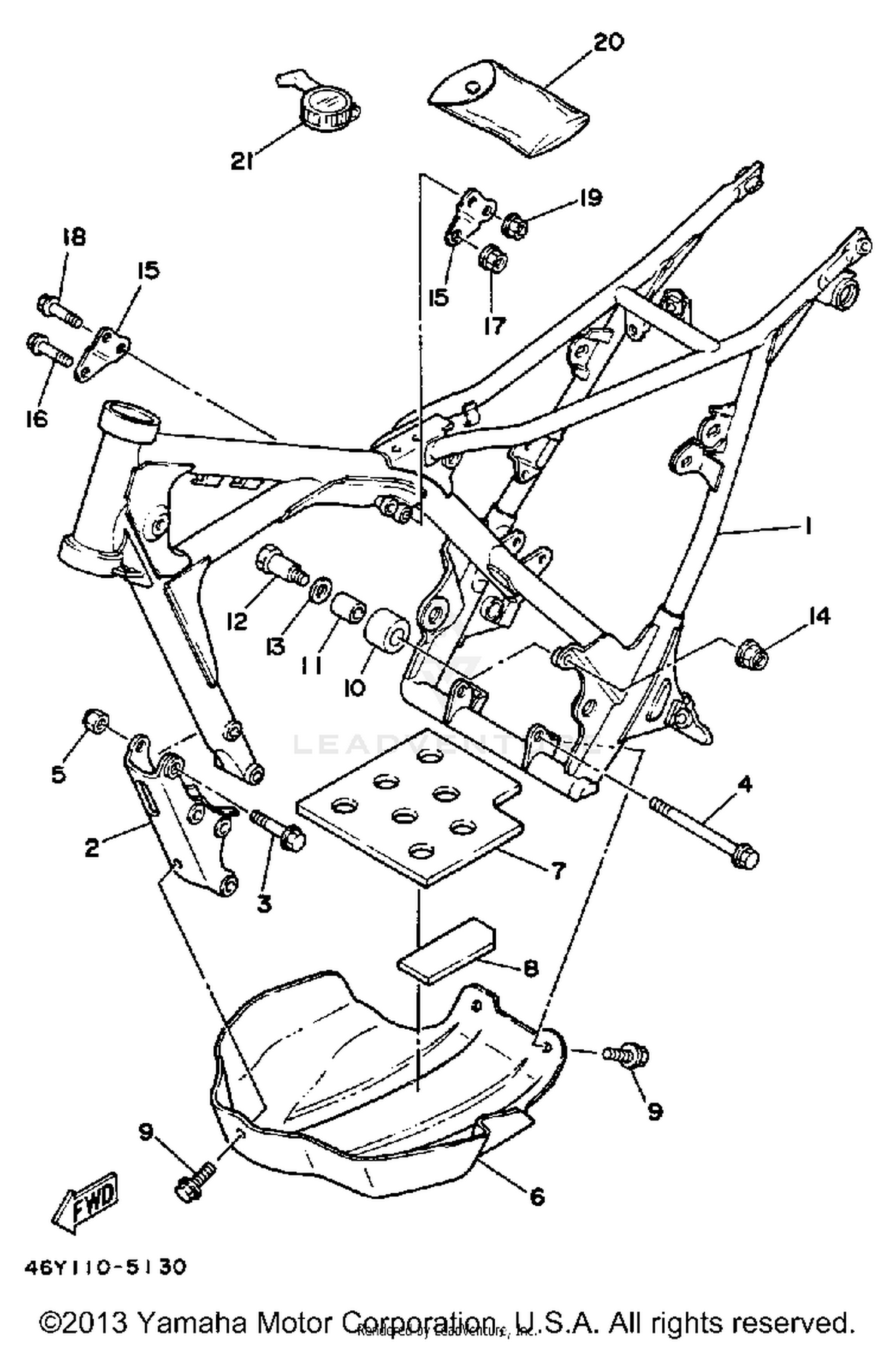

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
44J-21110-01-FH
|
$493.99 | ||
|
Unavailable |
|||
|
#2
STAY, ENGINE 3
38V-21316-00-FH
|
$46.48 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95811-08065-00
Superseded by 95814-08065-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95811-08120-00
Superseded by 95817-08120-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, ENGINE
38V-21471-02-00
Superseded by 4AJ-21471-00-00
|
$233.99 | ||
|
Unavailable |
|||
|
#7
DAMPER, RUBBER 1
38V-21485-01-00
|
$4.35 | ||
|
Unavailable |
|||
|
#8
DAMPER 2
38V-21486-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#9
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TENSIONER
5X6-22178-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90109-08705-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-13202-00
Superseded by 90201-13013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
STAY, ENGINE 2
53Y-21315-01-00
|
$3.16 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
95811-06050-00
Superseded by 95817-06050-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-06403-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TOOL KIT
38V-28100-00-00
Superseded by 4ML-28100-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#21
GAUGE, AIR
38V-2811A-00-00
|
$31.04 | ||
|
Unavailable |
|||
