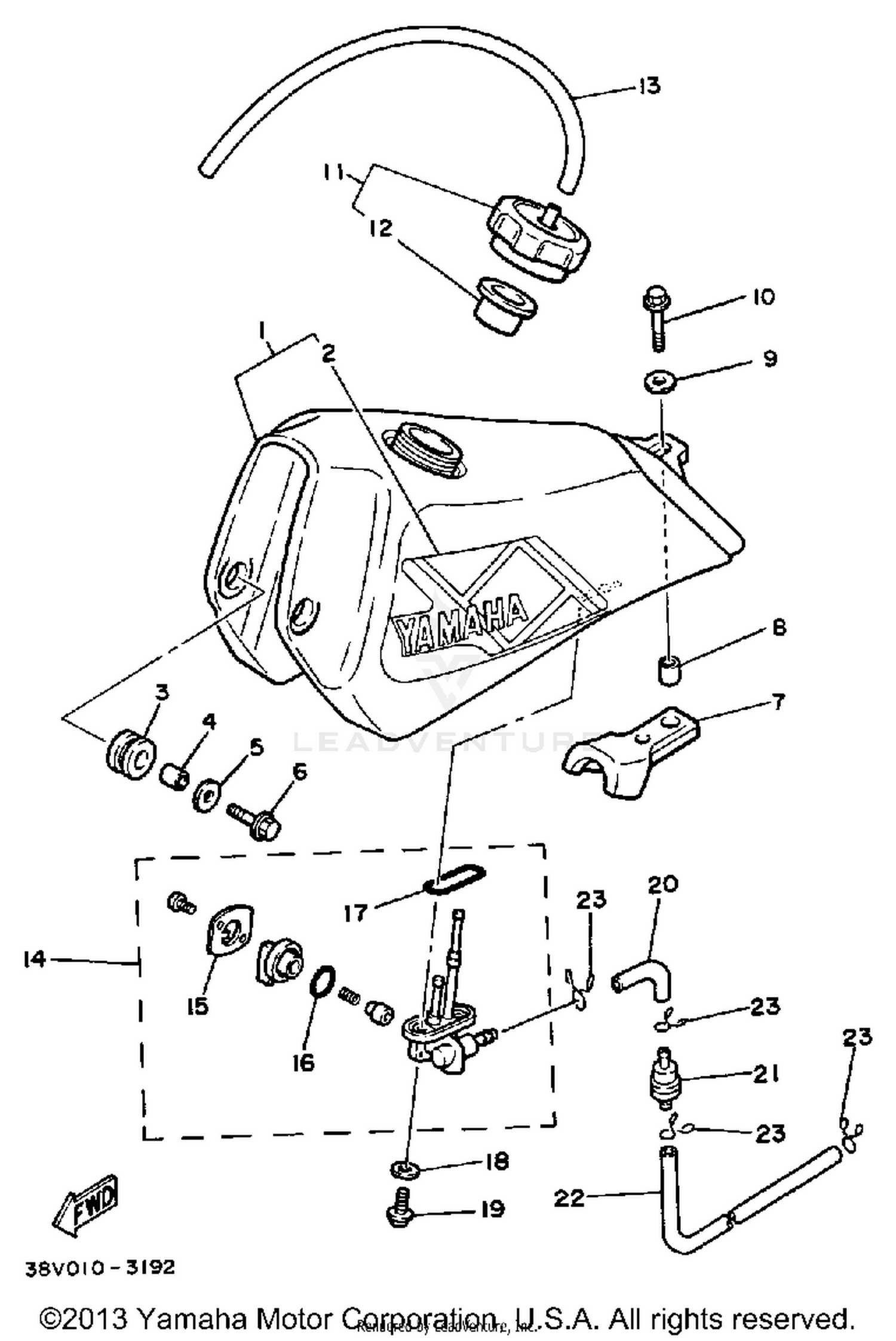

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP (38VC-24110-00-0
38V-24110-02-01
|
$426.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
38V-24250-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#3
GROMMET
90480-18290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95811-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNAVAILABLE IN PRICE BOOK
38V-14181-00-00
|
|||
|
Unavailable |
|||
|
#8
SPACER
90560-07007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95811-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
CAP ASSEMBLY
38V-24610-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#12
GASKET, CAP
38V-24612-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#13
PIPE 5
90445-09304-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUEL COCK ASSY 1
38V-24500-10-00
Superseded by 55X-24500-02-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, LVR FITTING
4V5-24525-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#16
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE 5
90445-09056-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
FILTER ASSEMBLY
4N0-24560-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 5
90445-09083-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
