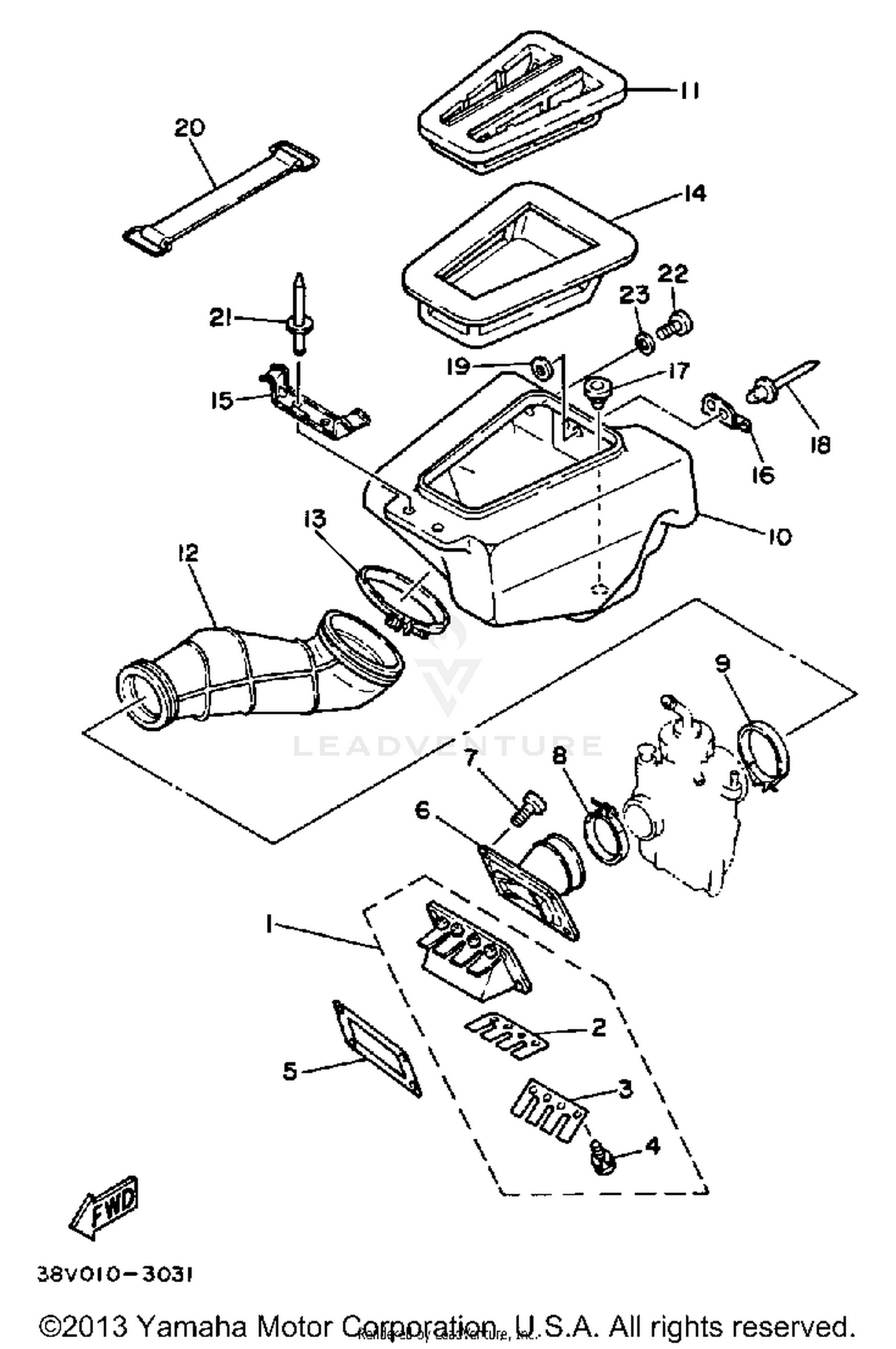

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
46Y-13610-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
1M1-13613-10-00
Superseded by 8AT-13613-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
46Y-13616-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, MANIFOLD
8Y7-13556-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR
38V-13565-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#7
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE
90460-49058-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, AIR CLEANER 1
38V-14411-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#11
CAP, CLEAN CASE 1
38V-14412-00-00
|
$19.43 | ||
|
Unavailable |
|||
|
#12
JOINT,AIR CLEAN 1
53Y-14453-00-00
Superseded by 38V-14453-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#13
CLAMP, HOSE
90460-01186-00
|
$17.99 | ||
|
Unavailable |
|||
|
#14
ELEMENT,AIR CLEANR
38V-14451-00-00
Superseded by 38V-14451-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY 1
38V-14493-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#16
HOOK
26A-14436-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-09211-00
|
$1.90 | ||
|
Unavailable |
|||
|
#18
RIVET, BLIND
90267-40029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, BATTERY
133-82131-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RIVET, BLIND 46Y
90267-40043-00
|
$0.80 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
