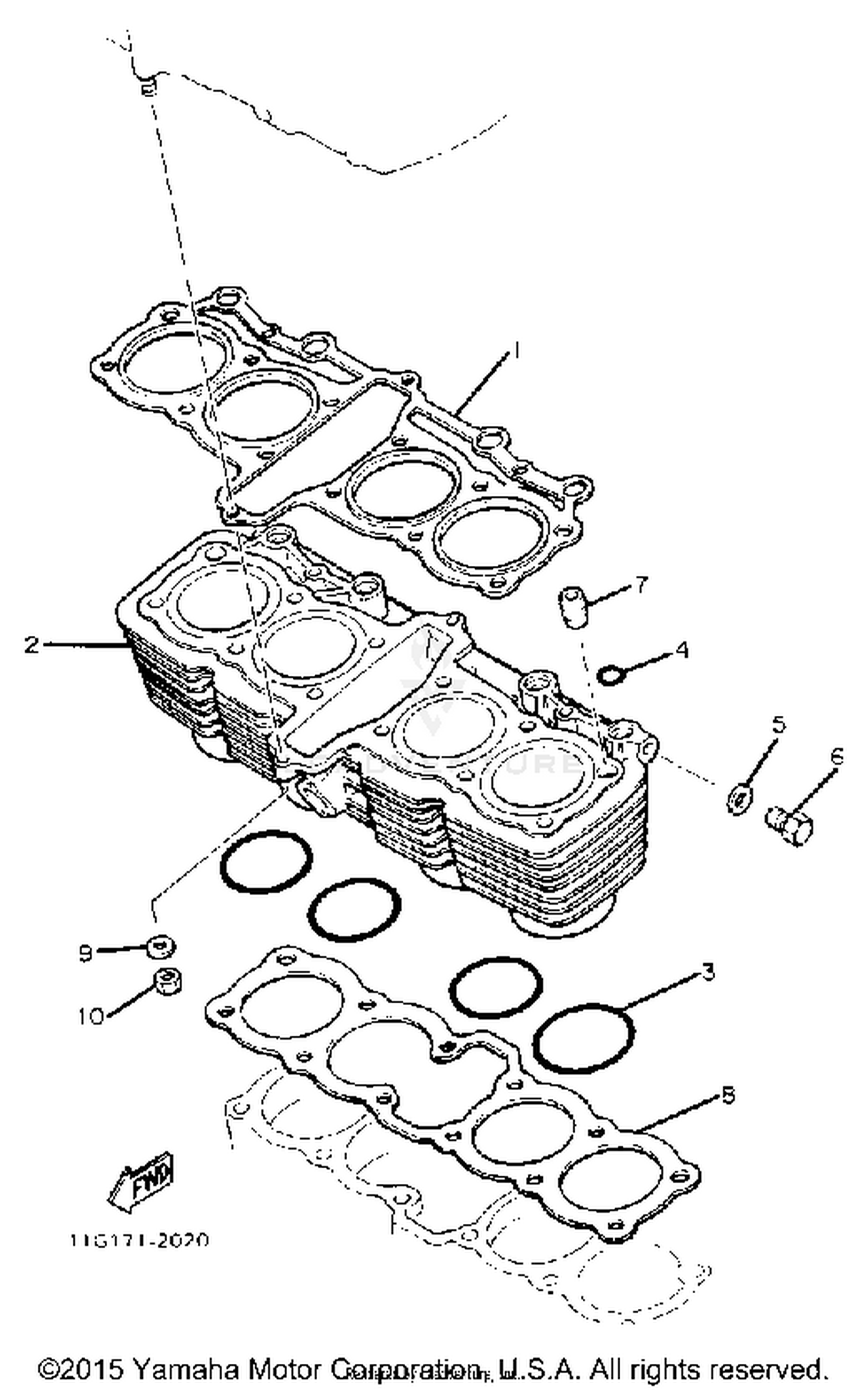

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CYLINDER HEAD 1
10M-11181-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER
10M-11310-00-00
|
$394.99 | ||
|
Unavailable |
|||
|
#3
O-RING
93210-77363-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-09443-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90340-12065-00
Superseded by 90105-122A1-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,CYLINDER
2H7-11351-01-00
Superseded by 2H7-11351-11-00
|
$25.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-084G3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT(6TA)
95336-08600-00
Superseded by 95337-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
