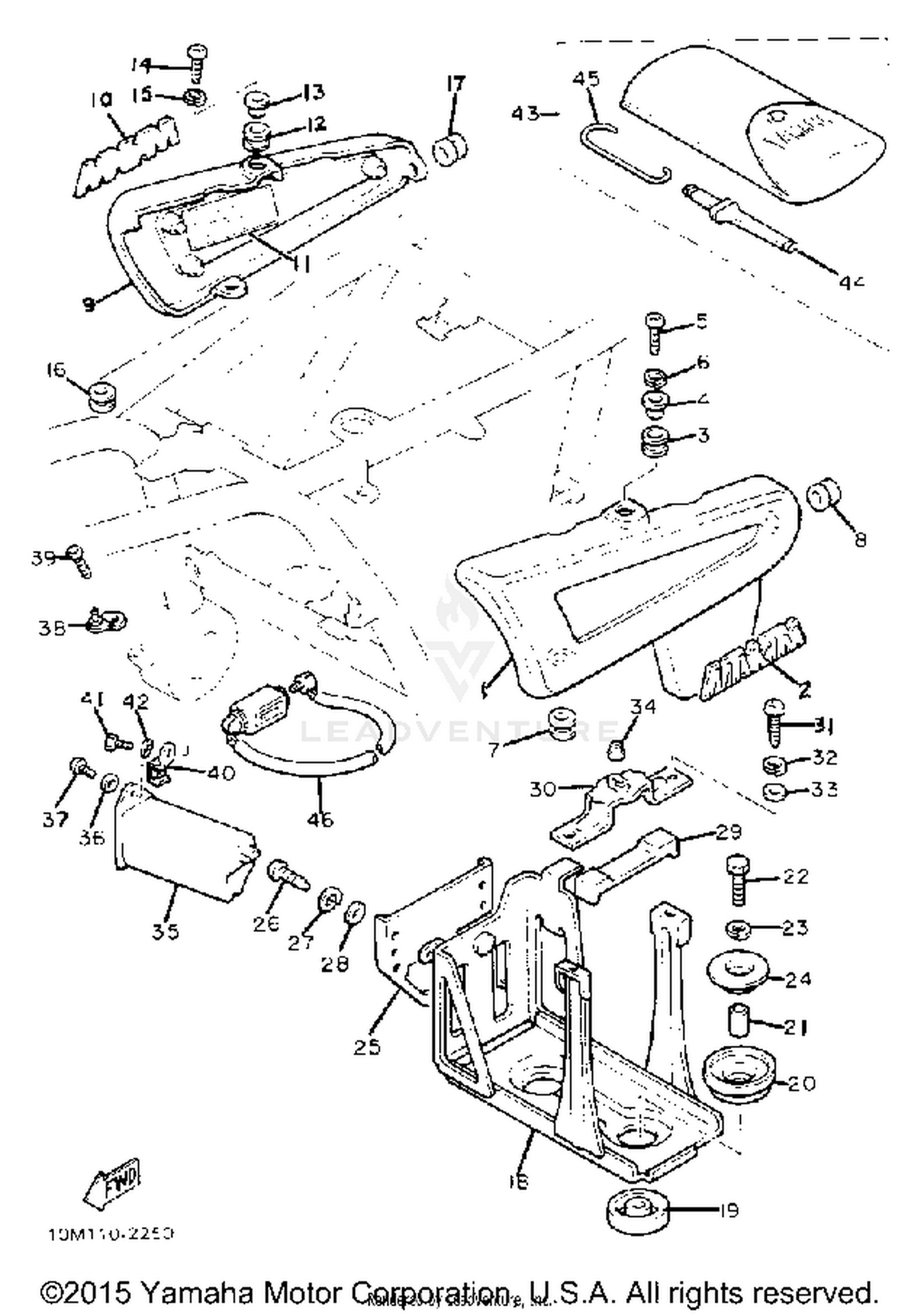

Side Cover Tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE COVER ASSEMBLY 1
10M-21710-00-6G
|
$108.99 | ||
|
Unavailable |
|||
|
#
SIDE COVER ASSEMBLY 1
10M-21710-00-7J
|
$104.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM 1
15R-21781-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
GROMMET
90480-10297-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-06024-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-01176-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-11224-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SIDE COVER ASSEMBLY 2
10M-21720-00-7J
|
$79.99 | ||
|
Unavailable |
|||
|
#
SIDE COVER ASSEMBLY 2
10M-21720-00-6G
|
$80.99 | ||
|
Unavailable |
|||
|
#10
EMBLEM 1
15R-21781-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#11
PLATE, SPEC
10M-21683-01-00
|
$6.26 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-10297-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
COLLAR
90387-06024-00
|
$10.49 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#16
GROMMET
90480-01176-00
|
$10.49 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-11224-00
|
$3.25 | ||
|
Unavailable |
|||
|
#18
BOX
10M-21170-01-00
|
$53.76 | ||
|
Unavailable |
|||
|
#19
DAMPER
10M-21746-01-00
|
$2.58 | ||
|
Unavailable |
|||
|
#20
DAMPER
10M-21747-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-064A5-00
Superseded by 90387-06088-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#24
GROMMET
90480-17218-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE 1
10M-21543-01-00
|
$5.64 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER, LOCATING 1
10M-21778-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#30
BOX, BATTERY
10M-2177G-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
GROMMET
90480-12292-00
|
$1.13 | ||
|
Unavailable |
|||
|
#35
BOX
4R0-21258-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
90201-062A8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#38
STAY, LOCK
4R0-2175H-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#39
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
STAY, SIDE COVER 1
4R0-2172E-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#41
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#43
TOOL KIT
2H7-W2810-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#44
GAUGE, OIL LEVEL
2H7-2815A-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#45
WIRE, HOOK
3H3-2814A-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#46
WHEEL LOCK ASSEMBLY (4X7-W2171-
4R0-W2171-00-00
Superseded by 4W5-W2171-00-00
|
$106.99 | ||
|
Unavailable |
|||
