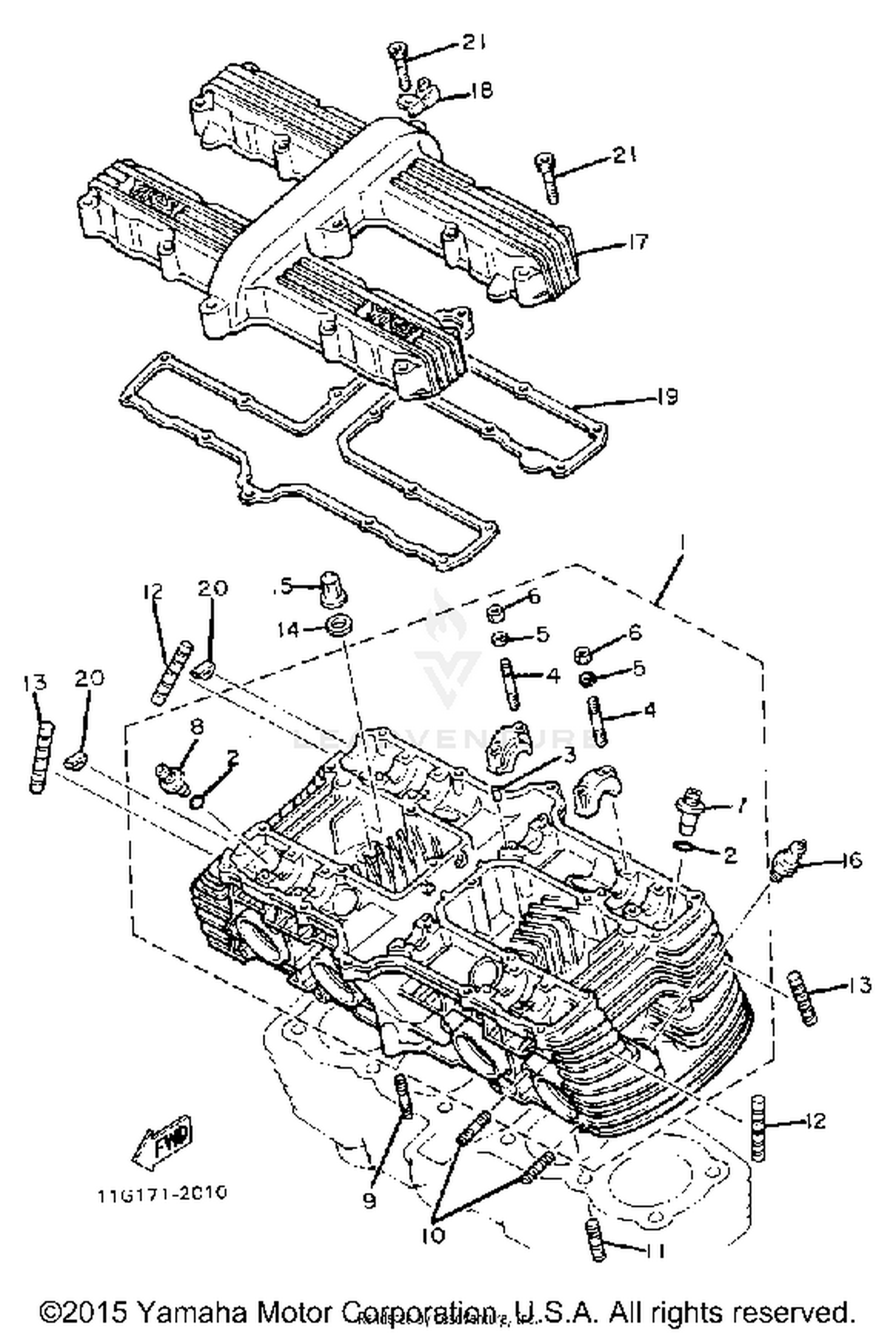

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
10M-11110-00-00
|
$694.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-11313-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93603-09004-00
|
$2.15 | ||
|
Unavailable |
|||
|
#4
BOLT, STUD
90116-06228-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95311-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
GDE, INTK VLV 1 O/S
1J7-11133-10-00
|
$40.99 | ||
|
Unavailable |
|||
|
#8
GDE, EXST VLV 1 O/S
1J7-11134-10-00
|
$40.99 | ||
|
Unavailable |
|||
|
#9
BOLT, STUD
90116-08161-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
95621-08615-00
Superseded by 95617-08615-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
95611-08630-00
Superseded by 95617-08630-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
ABSORBER 1
2H7-11161-00-00
|
$6.90 | ||
|
Unavailable |
|||
|
#13
ABSORBER 2
2H7-11162-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CROWN
90176-10049-00
Superseded by 90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BPR6ES NGK SPLUG 4
NGK-BP6ES-00-00
Superseded by BPR-6ES00-00-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER.HEAD 1
10M-11191-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#18
CLAMP
90465-10129-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
GASKET,HD.COVER1
2H7-11193-00-00
Superseded by 2H7-11193-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG
1J7-11138-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
