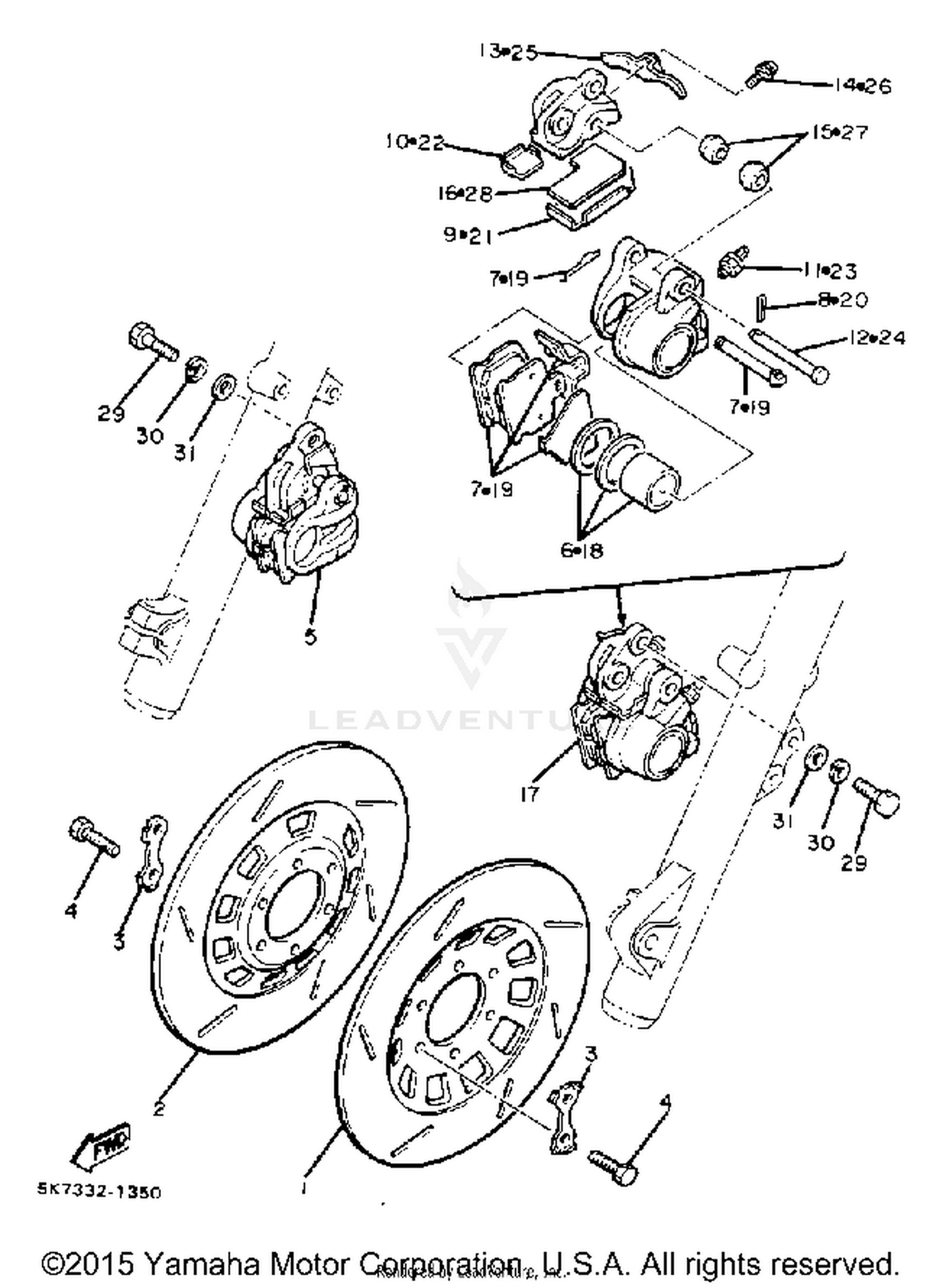

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
3H5-25831-10-00
|
$293.99 | ||
|
Unavailable |
|||
|
#2
DISC, BRAKE
3H5-25831-00-00
|
$237.99 | ||
|
Unavailable |
|||
|
#3
WASHER, LOCK
3H5-25834-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#4
BOLT
90101-08477-00
Superseded by 90101-08312-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER ASSEMBLY
4W1-25810-00-00
|
$169.99 | ||
|
Unavailable |
|||
|
#6
PISTON ASSEMBLY, CALIPER
4W1-W0057-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE PAD KIT
23W-W0045-01-00
Superseded by 23W-W0045-02-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN. COTTER
91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER
4W1-25913-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#10
SHIM, CALIPER
4W1-25828-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#11
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SLIDE
4W1-25914-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#13
COVER, DUST
4W1-25836-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#14
BOLT, CALIPER
4L3-25818-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#15
BOOT, CALIPER
4L0-25917-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#16
SHIM, CALIPER
4W1-25828-50-00
|
$9.30 | ||
|
Unavailable |
|||
|
#17
CALIPER ASSEMBLY LH
4W1-25810-10-00
|
$371.99 | ||
|
Unavailable |
|||
|
#18
PISTON ASSEMBLY, CALIPER
4W1-W0057-00-00
|
$146.99 | ||
|
Unavailable |
|||
|
#19
BRAKE PAD KIT
23W-W0045-01-00
Superseded by 23W-W0045-02-00
|
$49.99 | ||
|
Unavailable |
|||
|
#20
PIN. COTTER
91490-20015-00
|
$2.05 | ||
|
Unavailable |
|||
|
#21
RETAINER
4W1-25913-10-00
|
$4.35 | ||
|
Unavailable |
|||
|
#22
SHIM, CALIPER
4W1-25828-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#23
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#24
PIN, SLIDE
4W1-25914-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#25
COVER, DUST
4W1-25836-10-00
|
$4.84 | ||
|
Unavailable |
|||
|
#26
BOLT, CALIPER
4L3-25818-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#27
BOOT, CALIPER
4L0-25917-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#28
SHIM, CALIPER
4W1-25828-50-00
|
$9.30 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
90105-10638-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
