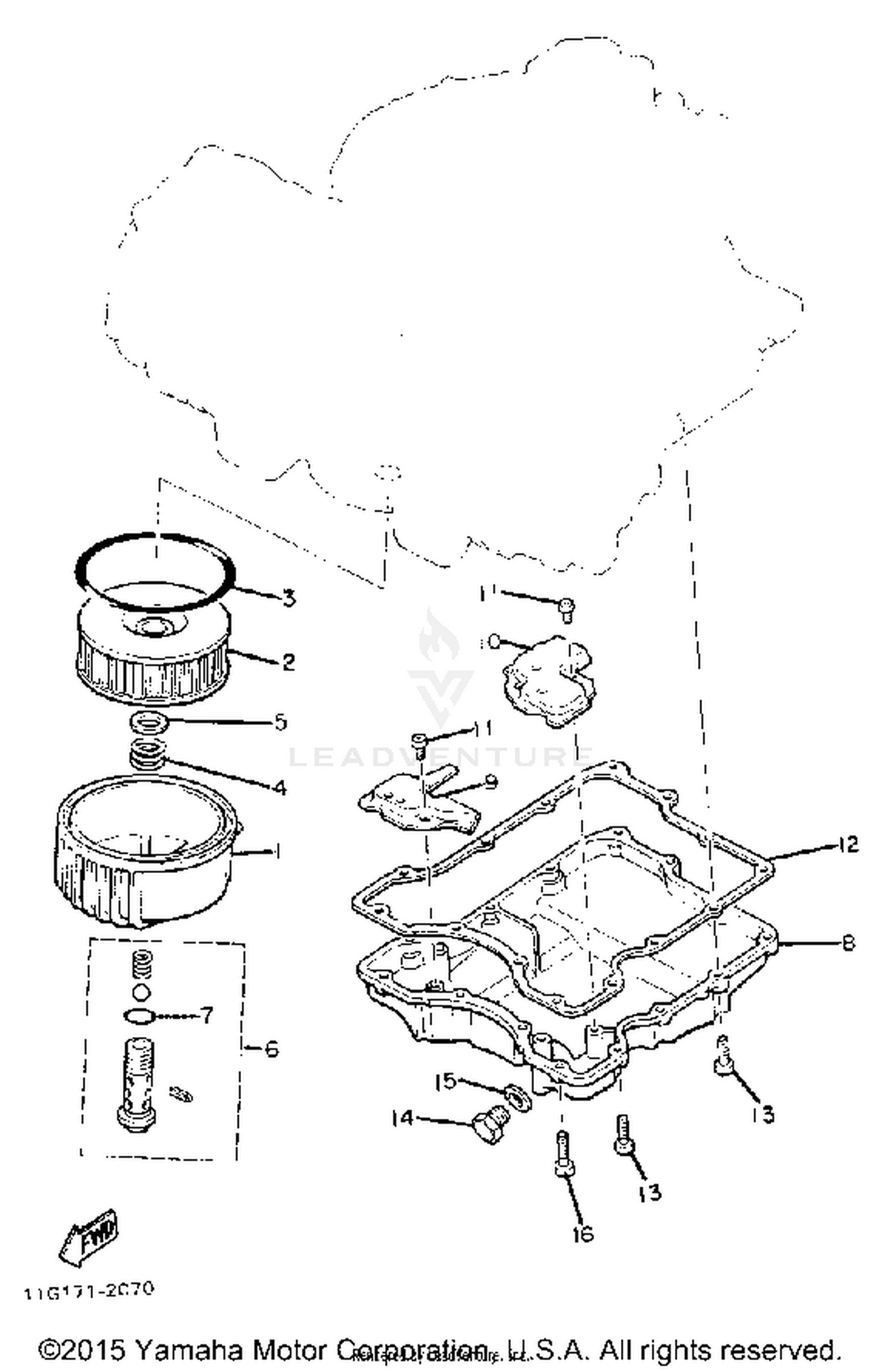

Oil Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL ELEMENT
2H7-13447-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#2
ELEMENT, OIL CLEANER
1J7-13441-10-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93211-19413-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, COMPRESSION
90501-18433-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-21608-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BY-PASS VALVE ASSEMBLY
2H7-13340-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-16314-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, STRAINER
10M-13417-00-00
|
$93.82 | ||
|
Unavailable |
|||
|
#9
PLATE, BAFFLE
2H7-13317-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#10
PLATE, BAFFLE LOWER
2H7-13337-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET8STRNR COVER
2H7-13414-00-00
Superseded by 2H7-13414-10-00
|
$28.99 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91311-06035-00
Superseded by 91314-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
