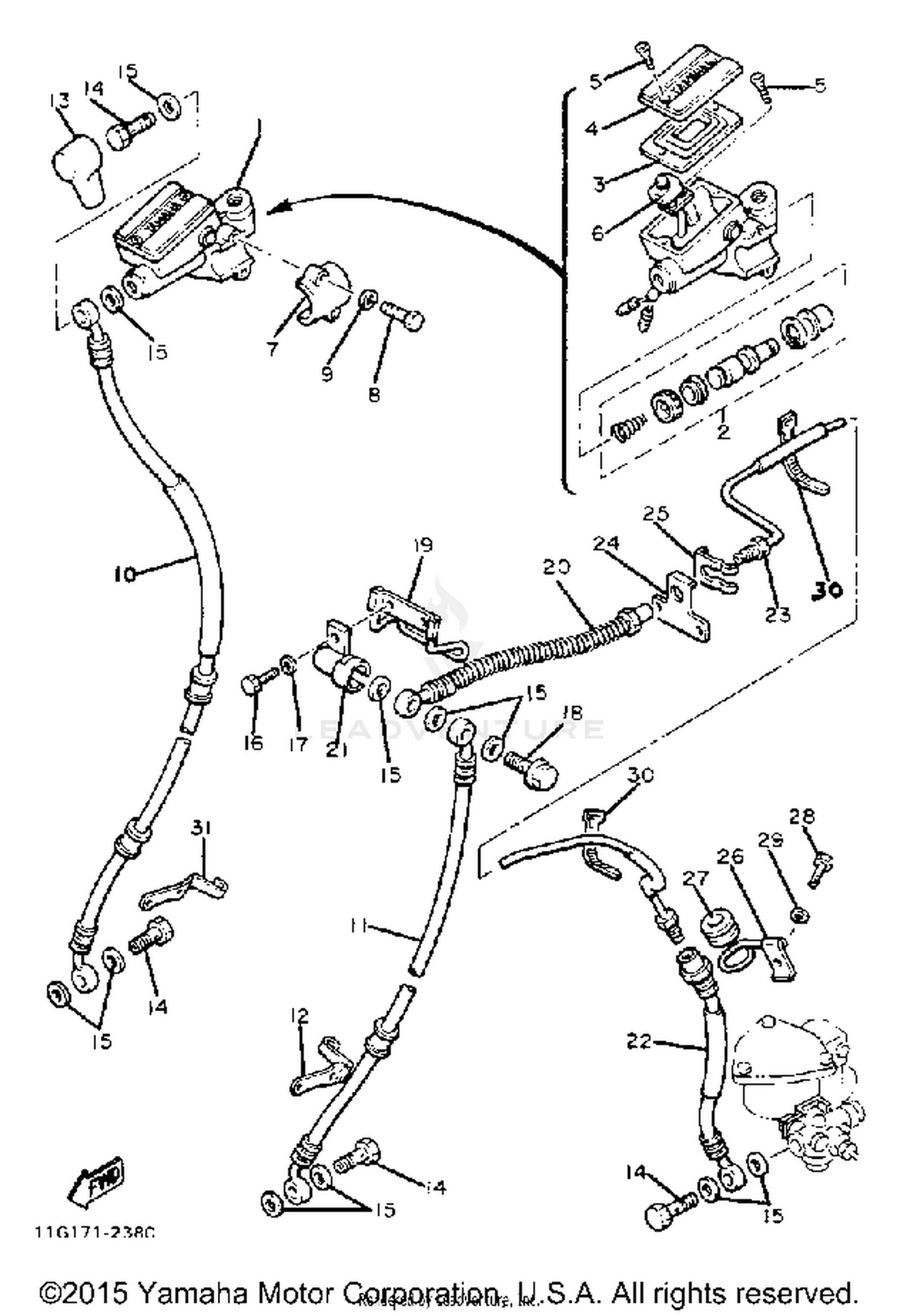

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MSTR CYLINDER ASSEMBLY
10M-25850-00-00
|
$189.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
4H7-W0041-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4H7-25852-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-04010-00
Superseded by 98707-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEAD SWITCH ASSEMBLY (10L-857
10M-85702-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, MASTER CYLINDER
4L0-25867-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE BRAKE 1
10M-25872-11-00
|
$86.99 | ||
|
Unavailable |
|||
|
#11
HOSE, BRAKE 1
10M-25872-50-00
|
$50.44 | ||
|
Unavailable |
|||
|
#12
HOLDER, BRKE HOSE 1
10M-25875-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
BOOT, MASTER CYLINDER
306-25862-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, UNION
4H3-25877-00-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#18
BOLT, UNION
90401-10095-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, CABLE
10M-26399-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#20
HOSE, BRAKE 2
4W1-25873-00-00
|
$50.13 | ||
|
Unavailable |
|||
|
#21
JOINT
4W1-25885-00-00
|
$20.34 | ||
|
Unavailable |
|||
|
#22
HOSE, BRAKE 2
4W1-25873-50-00
|
$52.99 | ||
|
Unavailable |
|||
|
#23
PIPE, BRAKE 2
10M-25882-50-00
|
$19.54 | ||
|
Unavailable |
|||
|
#24
HOLDER, BRKE HOSE 2
4W1-25876-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#25
CLIP
90468-06023-00
|
$2.58 | ||
|
Unavailable |
|||
|
#26
HOLDER, BRAKE HOSE
4W1-25886-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#27
PROTECTOR, BRAKE HOSE
341-25881-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT(3JP)
97026-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#30
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOLDER, BRKE HOSE 2
10M-25876-00-00
|
$16.49 | ||
|
Unavailable |
|||
