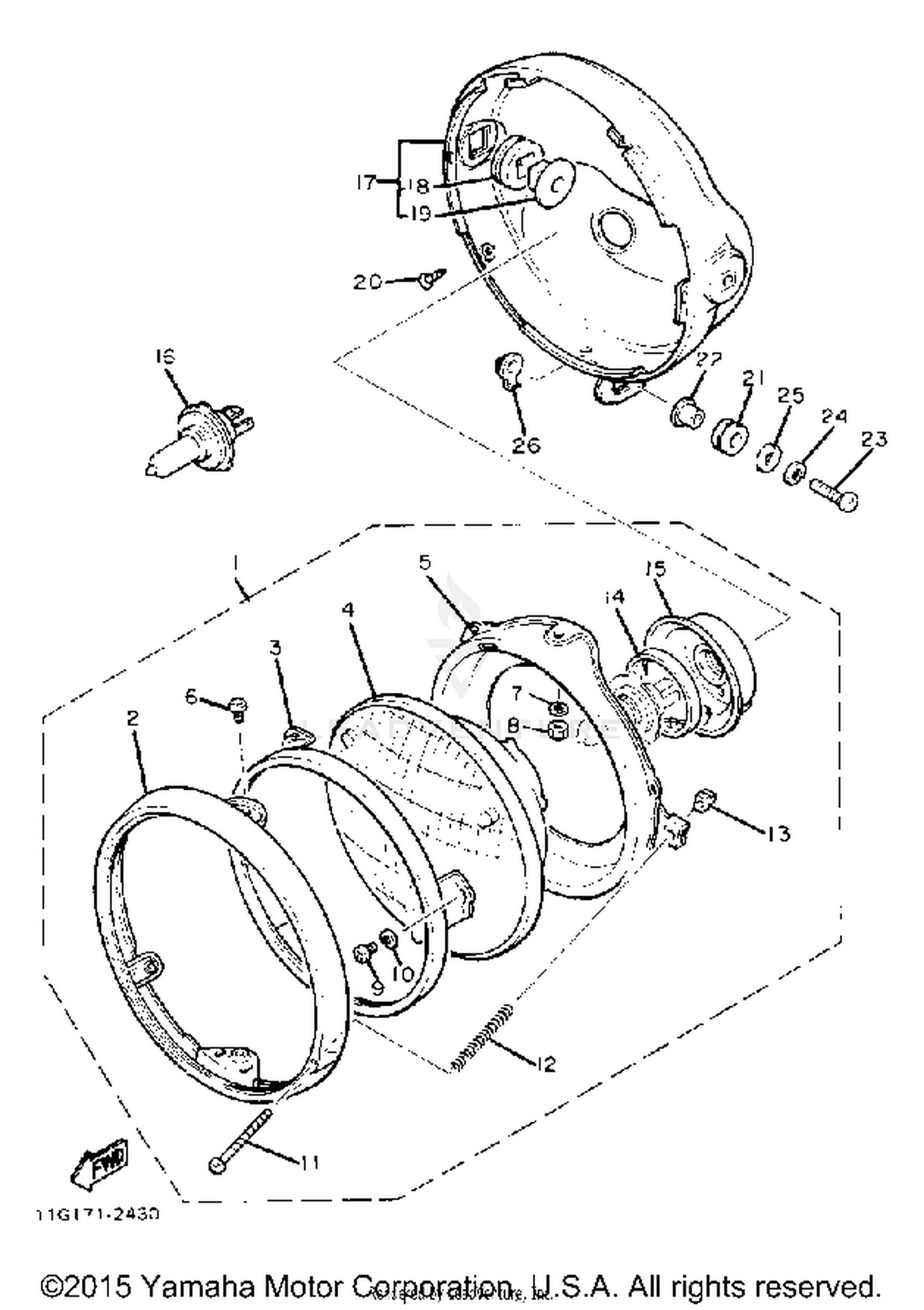

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSY
2F3-84303-A0-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM, HEADLIGHT
341-84315-40-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, RETAINING
2F9-84395-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS ASSY
2F3-84321-A0-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, MOUNTING
2F9-84394-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, LENS FITTING
98580-04055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SETTING PLATE, BULB
2F9-84375-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, SOCKET
2F9-84397-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BODY ASSEMBLY
10M-84330-00-93
|
$137.99 | ||
|
Unavailable |
|||
|
#18
DAMPER, HEADLIGHT
10M-84345-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#19
COLLAR, BODY FTNG
10M-84338-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#20
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-061F9-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPECIAL
4K0-84327-00-00
|
$14.49 | ||
|
Unavailable |
|||
