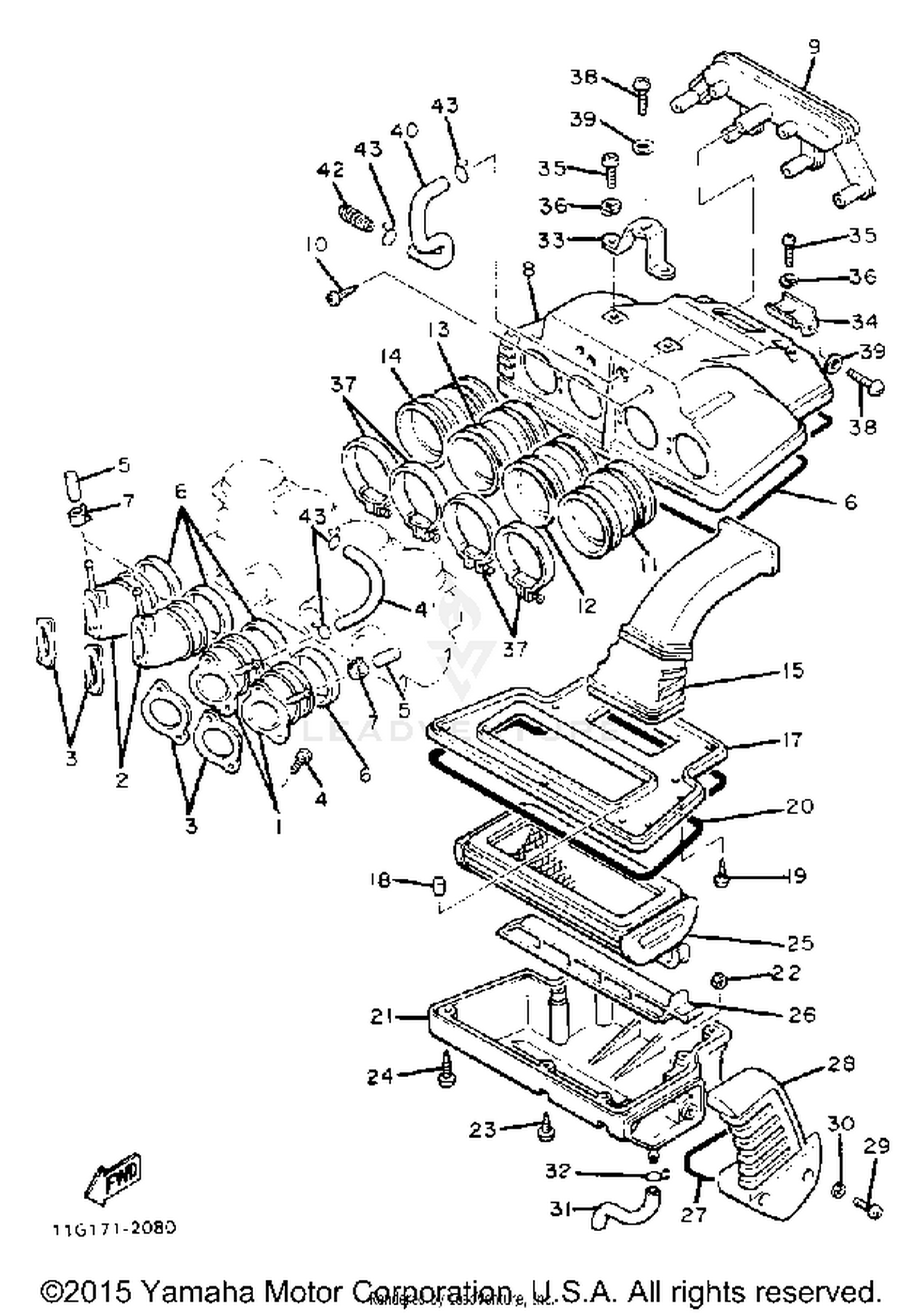

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
2H7-13586-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, CARBURETOR 2
2H7-13596-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, MANIFOLD
10M-13556-00-00
Superseded by 10M-13556-10-00
|
$18.99 | ||
|
Unavailable |
|||
|
#4
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, BLIND
16G-13569-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE CLAMP ASSY
90460-54137-00
Superseded by 90450-54008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90467-10039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, AIR CLEANER 1
10M-14411-00-00
|
$19.50 | ||
|
Unavailable |
|||
|
#9
SEPARATOR, OIL
10M-14434-01-00
|
$12.08 | ||
|
Unavailable |
|||
|
#10
SCREW, TAPPING
97780-50612-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, AIR CLNR 1
10M-14453-01-00
|
$8.46 | ||
|
Unavailable |
|||
|
#12
JOINT, AIR CLNR 2
10M-14463-01-00
|
$9.28 | ||
|
Unavailable |
|||
|
#13
JOINT
10M-14454-01-00
|
$13.84 | ||
|
Unavailable |
|||
|
#14
PIPE, JOINT
10M-14485-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#15
DUCT
10M-14437-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#16
SEAL
1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PARTN, AIR CLNR CS
10M-1441F-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#18
SEAL
5H0-14462-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#19
SCREW, TAPPING
97701-40510-00
Superseded by 97707-40610-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
1VJ-14462-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#21
CASE, AIR CLEANER 2
10M-14421-00-00
|
$29.94 | ||
|
Unavailable |
|||
|
#22
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING
97701-60530-00
|
$0.84 | ||
|
Unavailable |
|||
|
#24
SCREW, TAPPING
97701-60545-00
|
$0.94 | ||
|
Unavailable |
|||
|
#25
ELEMENT, AIR CLNR
10M-14451-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, ELEMENT FTNG
10M-14468-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
SEAL
5T0-14457-00-00
Superseded by 1VJ-14462-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#28
CAP, CLEANER CASE 2
10M-14422-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98506-05025-00
Superseded by 98507-05025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE (L)
90445-11182-00
Superseded by 90445-112E1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY 1
10M-14498-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#34
STAY 2
10M-14499-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#35
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE CLAMP ASSY
90460-58015-00
Superseded by 90450-58002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE, BREATHER 1
2H7-11166-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#41
PIPE, BREATHER 2
10M-11167-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#42
PIPE, BREATHER 1
15A-11166-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#43
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
