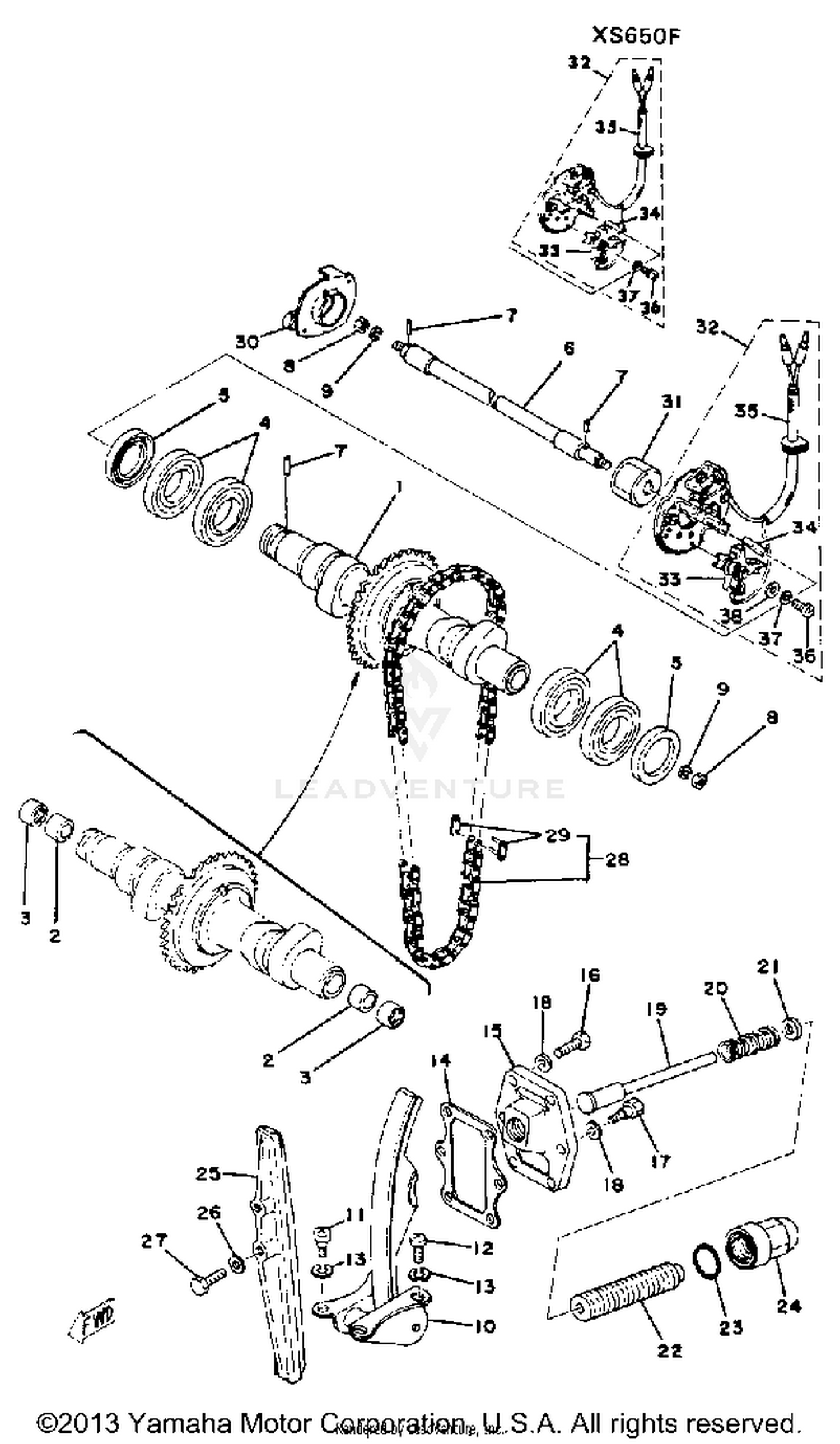

Camshaft - Chain Tensioner Xs650d - E - E006501- - Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSEMBLY 1
447-12170-00-00
|
$366.99 | ||
|
Unavailable |
|||
|
#2
BUSH
90386-12093-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, LABYRINTH
256-11155-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#4
BEARING
93316-00503-00
Superseded by 93316-00501-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93101-25044-00
Superseded by 93102-25090-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, BREAKER
256-11156-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
93603-07073-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUNEKIT XS650CDESE
ACC-01100-37-11
|
$109.99 | ||
|
Unavailable |
|||
|
#
CONDENSER 1
256-81625-10-00
|
$63.99 | ||
|
Unavailable |
|||
|
#
CONTACT BRKR ASSEMBLY
256-81621-11-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#
GUIDE, STOPPER 2
447-12220-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#
BPR7ES NGK - 4/PACK
NGK-BP7ES-00-00
Superseded by BPR-7ES00-40-00
|
$2.95 | ||
|
Unavailable |
|||
|
#11
SCREW, SPEC''L SHAPE
90149-06009-00
|
$4.15 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#14
GASKET,TENSION CAS
306-12213-02-00
Superseded by 306-12213-12-00
|
$14.99 | ||
|
Unavailable |
|||
|
#15
HOLDER, TENSIONER
584-12211-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#16
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90109-06019-00
|
$1.65 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, CHN TENSIONER
341-12217-03-00
Superseded by 341-12217-04-00
|
$14.99 | ||
|
Unavailable |
|||
|
#20
SPRING, COMPRESSION
90501-14095-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER
341-12232-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
DAMPER
2H0-12232-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT (3G1)
99999-01144-00
|
$6.49 | ||
|
Unavailable |
|||
|
#
BOLT
90109-18580-00
|
$7.99 | ||
|
Unavailable |
|||
|
#23
O-RING
93210-21190-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, CROWN
90176-18021-00
|
$5.05 | ||
|
Unavailable |
|||
|
#25
GUIDE, STOPPER 1
256-12231-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#26
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
CHAIN
94500-02106-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CHAIN
94562-19106-00
|
$54.45 | ||
|
Unavailable |
|||
|
#29
JOINT CHAIN
94662-19001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JOINT, CHAIN (BF05M)
94600-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GOVERNOR ASSEMBLY
256-81653-10-00
|
$336.99 | ||
|
Unavailable |
|||
|
#31
CAM
256-81651-10-00
|
$34.93 | ||
|
Unavailable |
|||
|
#32
BREAKER PLATE ASSEMBLY
447-81620-10-00
|
$118.99 | ||
|
Unavailable |
|||
|
#33
CONTACT BRKR ASSEMBLY
256-81621-11-00
|
$110.99 | ||
|
Unavailable |
|||
|
#34
LUBRICATOR
256-81631-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
WIRE, LEAD
256-81615-10-00
|
$37.67 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER
92990-04200-00
|
$1.75 | ||
|
Unavailable |
|||
