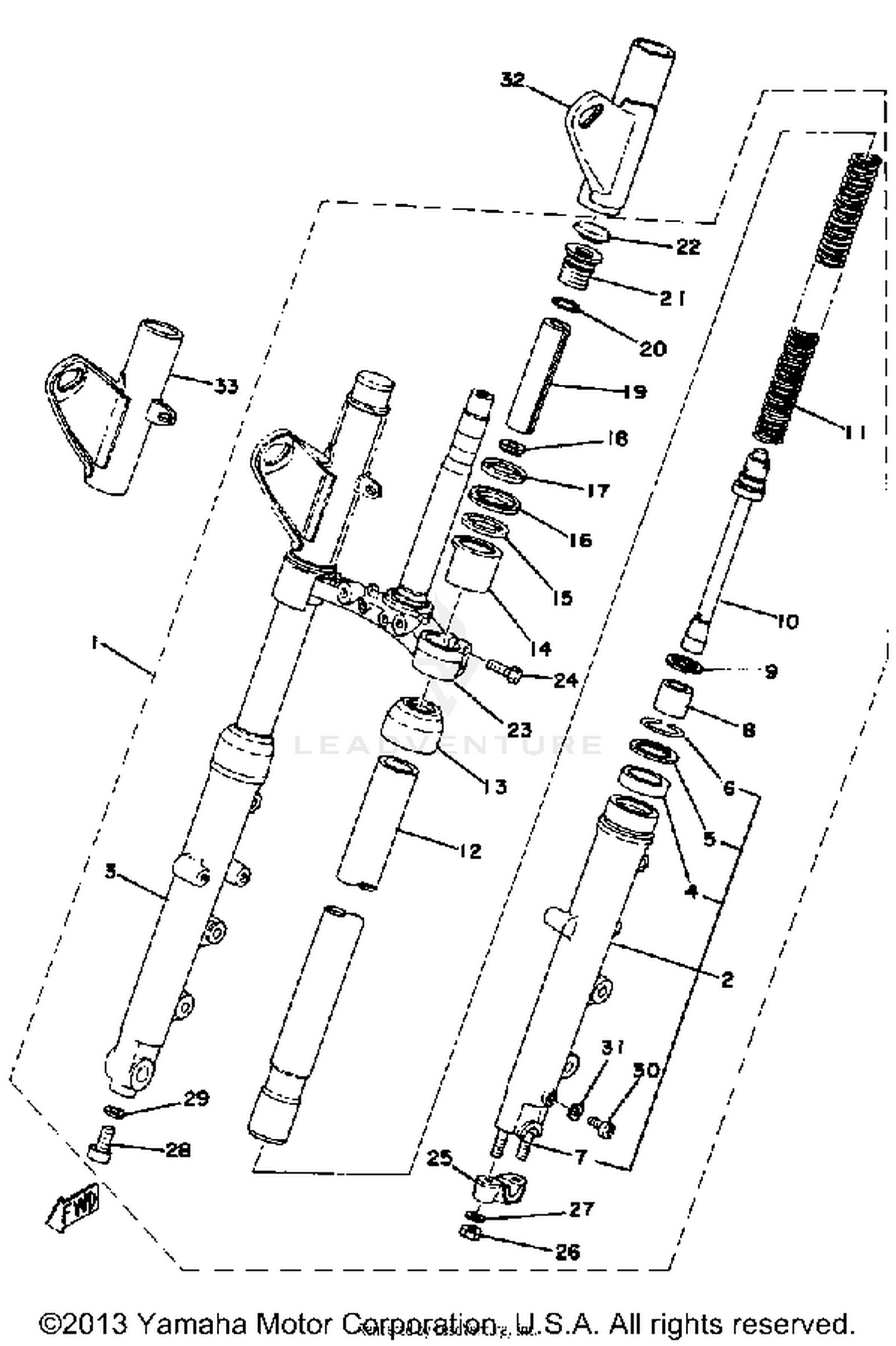

Front Fork Xs650d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
2F0-23101-00-00
|
$456.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
1T3-23126-50-00
|
$95.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
1T3-23136-50-00
|
$95.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
1T3-23145-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
341-23146-50-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL SEAL
341-23156-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-08261-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON, FRONT FORK
434-23171-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#9
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRTFRK
1T3-23170-50-00
|
$51.88 | ||
|
Unavailable |
|||
|
#11
UNAVAILABLE IN PRICE BOOK
1G3-23141-50-00
|
|||
|
Unavailable |
|||
|
#12
UNAVAILABLE IN PRICE BOOK
1G3-23124-50-00
|
|||
|
Unavailable |
|||
|
#13
SEAL, DUST
1T3-23144-50-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, OUTER 1
1T3-23122-50-00
|
$4.19 | ||
|
Unavailable |
|||
|
#15
GASKET (42H-23163-00-00)
2H7-23163-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, COVER LOWER
1T3-23116-50-00
|
$1.05 | ||
|
Unavailable |
|||
|
#17
WASHER, OIL SEAL
1T3-23146-50-00
|
$2.37 | ||
|
Unavailable |
|||
|
#18
SEAT, SPRING UPPER
256-23142-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#19
SPACER
498-23118-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#20
GASKET
2F0-23114-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, CAP
1T3-23111-50-00
|
$78.99 | ||
|
Unavailable |
|||
|
#22
CAP, FRONT FORK
1T3-23168-50-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
UNDER BRACKET
1U3-23340-30-33
|
$295.99 | ||
|
Unavailable |
|||
|
#24
BOLT, WITH WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, AXLE
341-23167-50-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX SCKT HEAD
1T3-23181-50-00
|
$5.86 | ||
|
Unavailable |
|||
|
#29
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER, UPPER 1
447-23121-51-93
|
$68.99 | ||
|
Unavailable |
|||
|
#33
COVER, UPPER 2
447-23131-51-93
|
$64.99 | ||
|
Unavailable |
|||
