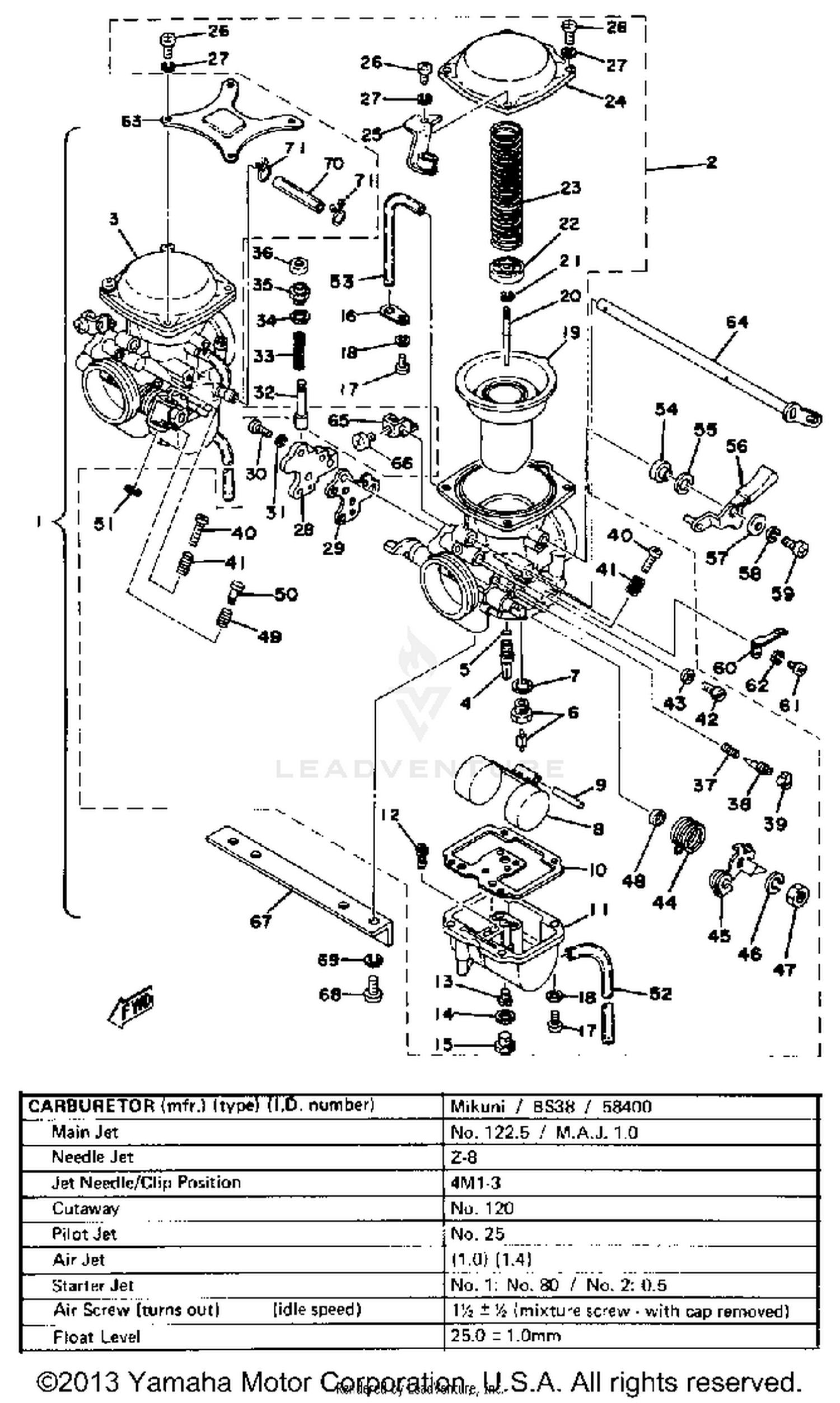

Carburetor Xs650d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY
UNA-VAILA-BL-EI
|
|||
|
Unavailable |
|||
|
#2
CARB ASSY, LEFT
584-14901-00-00
|
$172.99 | ||
|
Unavailable |
|||
|
#3
CARB ASSY, RIGHT
584-14902-00-00
|
$172.99 | ||
|
Unavailable |
|||
|
#4
NOZZLE, MAIN (Z-8)
341-14941-88-00
|
$32.14 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-03142-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE SEAT ASSY (#20)
168-14190-20-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, VALVE SEAT
214-14195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLOAT
256-14985-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
UNAVAILABE IN PRICE BOOK
256-19840-00-00
|
|||
|
Unavailable |
|||
|
#11
BODY, FLOAT CHAMBER
584-14981-16-00
|
$38.38 | ||
|
Unavailable |
|||
|
#12
JET, PILOT (NO. 27.5)
584-14142-27-A0
|
$13.99 | ||
|
Unavailable |
|||
|
#13
JET, MAIN (#120)
256-14944-24-00
Superseded by 3G2-14231-24-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#122.5)
256-14944-75-00
Superseded by 3G2-1423A-75-A1
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (125)
256-14944-25-00
Superseded by 3G2-14231-25-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#127.5)
256-14944-76-00
Superseded by 3G2-1423A-76-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
256-14956-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PLUG
256-14991-00-00
|
$10.41 | ||
|
Unavailable |
|||
|
#16
PLATE
256-14146-01-00
Superseded by 500-14146-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW,PANHEAD
98501-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM ASSY (256-14940-0
256-14940-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE (4M1-3)
584-14116-01-00
|
$5.86 | ||
|
Unavailable |
|||
|
#21
CLIP
584-14919-00-00
|
|||
|
Unavailable |
|||
|
#22
PLATE, NEEDLE FITTING
256-14946-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#23
SPRING, DIAPHRAGM
584-14933-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#24
COVER, DIAPHRAGM
256-14958-00-00
|
$23.42 | ||
|
Unavailable |
|||
|
#25
THROTTLE BRACKET ASSY
447-14926-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98503-05015-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92903-05100-00
Superseded by 92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
BODY, STARTER
584-14907-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#29
GASKET, STARTER BODY
447-14979-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#30
SCREW,PANHEAD
98501-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#32
PLUNGER, STARTER
584-14171-00-00
|
$16.26 | ||
|
Unavailable |
|||
|
#33
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#34
WASHER
256-14954-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
CAP, PLUNGER
584-14176-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#36
COVER, PLUNGER CAP
306-14173-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#37
SPRING, AIR ADJUSTING
127-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PILOT
584-14923-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#39
CAP, PILOT SCREW
584-14969-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#40
SCREW, THROTTLE STOP
256-14922-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#41
SPRING, THROTTLE STOP
256-14934-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#42
PLUG, SCREW
341-14991-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLUG SCREW
584-14956-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#44
SPRING, THROTTLE LEFT
584-14931-00-00
|
$11.18 | ||
|
Unavailable |
|||
|
#45
LEVER, THROTTLE LEFT
306-14964-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#46
WASHER, SPRING
92903-08100-00
Superseded by 92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT
95301-12600-00
Superseded by 95304-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
SEAL
256-14997-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPRING, ADJUSTER
584-14934-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#50
ROD, PUSH
584-14992-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLIP, PUSH ROD
584-14937-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#52
HOSE
256-14197-01-00
|
$4.15 | ||
|
Unavailable |
|||
|
#53
HOSE
256-14987-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#54
RING
256-14918-00-00
|
$4.75 | ||
|
Unavailable |
|||
|
#55
WASHER, STARTER LEVER
584-14955-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#56
LEVER ASSY
306-14905-02-00
|
$32.99 | ||
|
Unavailable |
|||
|
#57
WASHER
256-14952-00-00
Superseded by 4CW-14962-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#58
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#59
SCREW,PANHEAD
98501-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#60
SPRING, STARTER LEVER
584-14953-00-00
|
|||
|
Unavailable |
|||
|
#61
SCREW, PAN HEAD
98501-04005-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#62
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#63
PLATE, UPPER
584-14243-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#64
SHAFT, STARTER LEVER
584-14977-00-00
|
$15.90 | ||
|
Unavailable |
|||
|
#65
LEVER, STARTER 2 (584-14905-0
1J7-14986-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#66
SCREW, STARTER LEVER 2
584-14991-00-00
|
$6.90 | ||
|
Unavailable |
|||
|
#67
PLATE, LOWER
584-14146-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#68
SCREW, PAN HEAD
92503-06015-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#70
HOSE
306-14998-00-00
|
|||
|
Unavailable |
|||
|
#71
CLIP
341-14919-00-00
|
$1.98 | ||
|
Unavailable |
|||
