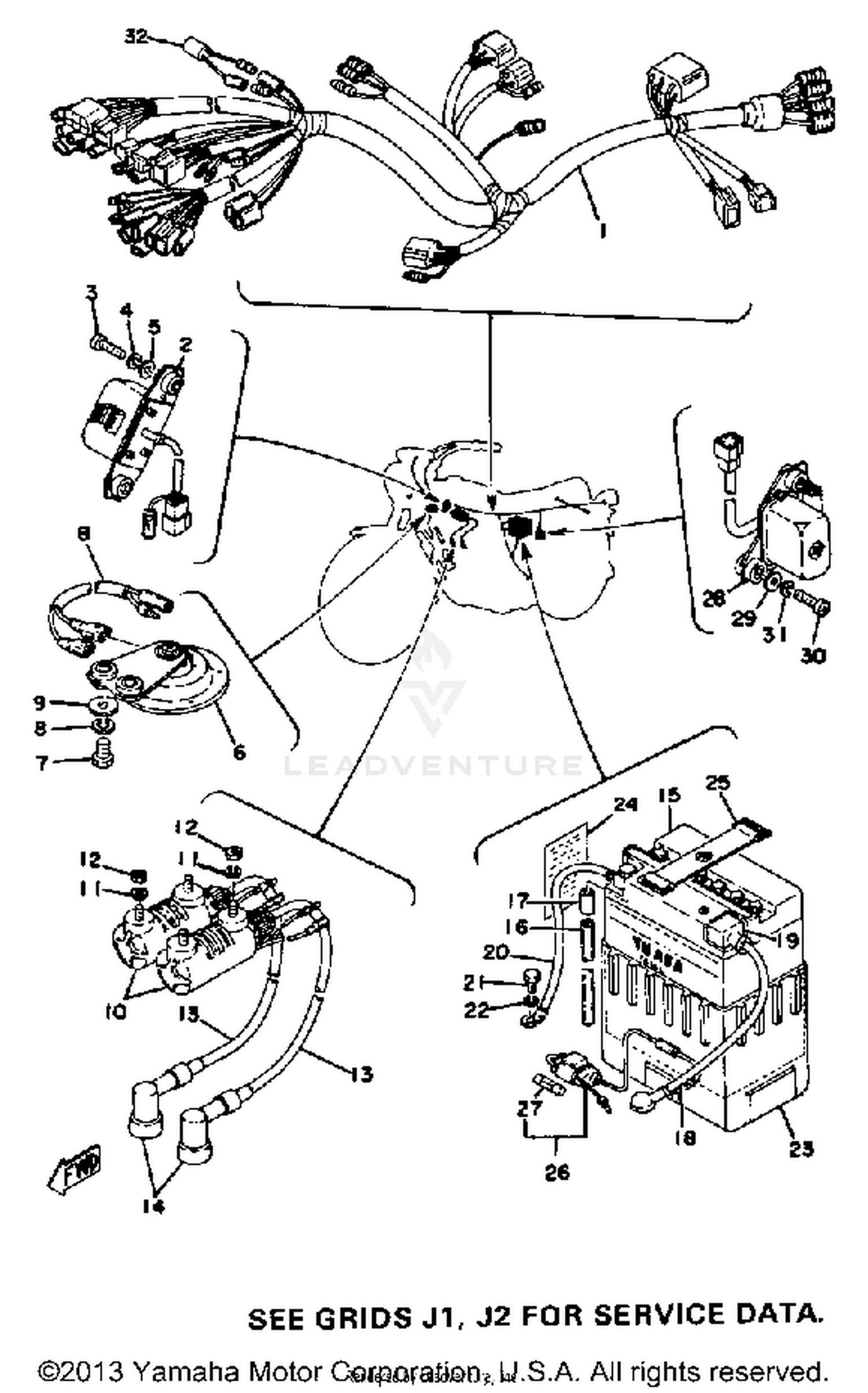

Electrical 1 Xs650d - E - E006501- - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRE HARNESS ASSEMBLY
1T3-82590-61-00
|
$95.06 | ||
|
Unavailable |
|||
|
#
WIRE HARNESS ASSEMBLY
1T3-82590-60-00
|
$87.38 | ||
|
Unavailable |
|||
|
#
WIRE HARNESS ASSEMBLY
2F0-82590-51-00
|
$86.04 | ||
|
Unavailable |
|||
|
#
WIRE HARNESS ASSEMBLY
2F0-82590-52-00
|
$72.90 | ||
|
Unavailable |
|||
|
#2
RELAY ASSEMBLY
2F0-81950-50-00
|
$136.99 | ||
|
Unavailable |
|||
|
#
RELAY ASSEMBLY
447-81950-50-00
|
$104.99 | ||
|
Unavailable |
|||
|
#
RELAY ASSEMBLY
447-81950-10-00
|
$73.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
HORN
366-83371-52-00
|
$43.99 | ||
|
Unavailable |
|||
|
#7
BOLT
97001-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-08107-00
Superseded by 90201-086A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
IGNITION COIL ASSEMBLY
254-82310-60-00
|
$196.99 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
CORD, HIGH TENS 1
4X7-82341-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG CAP ASY
512-82370-10-00
Superseded by 7KA-82370-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLUG CAP ASSY
256-82370-00-00
Superseded by 4BP-82370-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#15
YB14LA2 YUASA BATTE
BTY-YB14L-A2-00
Superseded by YB1-4LA20-00-00
|
$63.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE
90445-08582-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH, SPEC''L NYLON
90386-07043-00
|
$1.78 | ||
|
Unavailable |
|||
|
#18
WIRE, PLUS LEAD
447-82115-01-00
|
$24.95 | ||
|
Unavailable |
|||
|
#19
COVER, LEAD WIRE
447-82119-00-00
|
$9.50 | ||
|
Unavailable |
|||
|
#20
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#
WIRE, MINUS LEAD
447-82116-00-00
Superseded by 2H7-82116-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#21
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
SEAT, BATTERY
447-82122-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#24
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#25
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE HOLDER ASSY
2UJ-82150-01-00
Superseded by 2UJ-82150-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE (12V-20A)
1A0-82161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
VOLTAGE REGULATOR ASSEMBLY
1L9-81910-50-00
|
$193.99 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#32
DIODE (341-81980-01)
341-81980-30-00
|
$42.99 | ||
|
Unavailable |
|||
