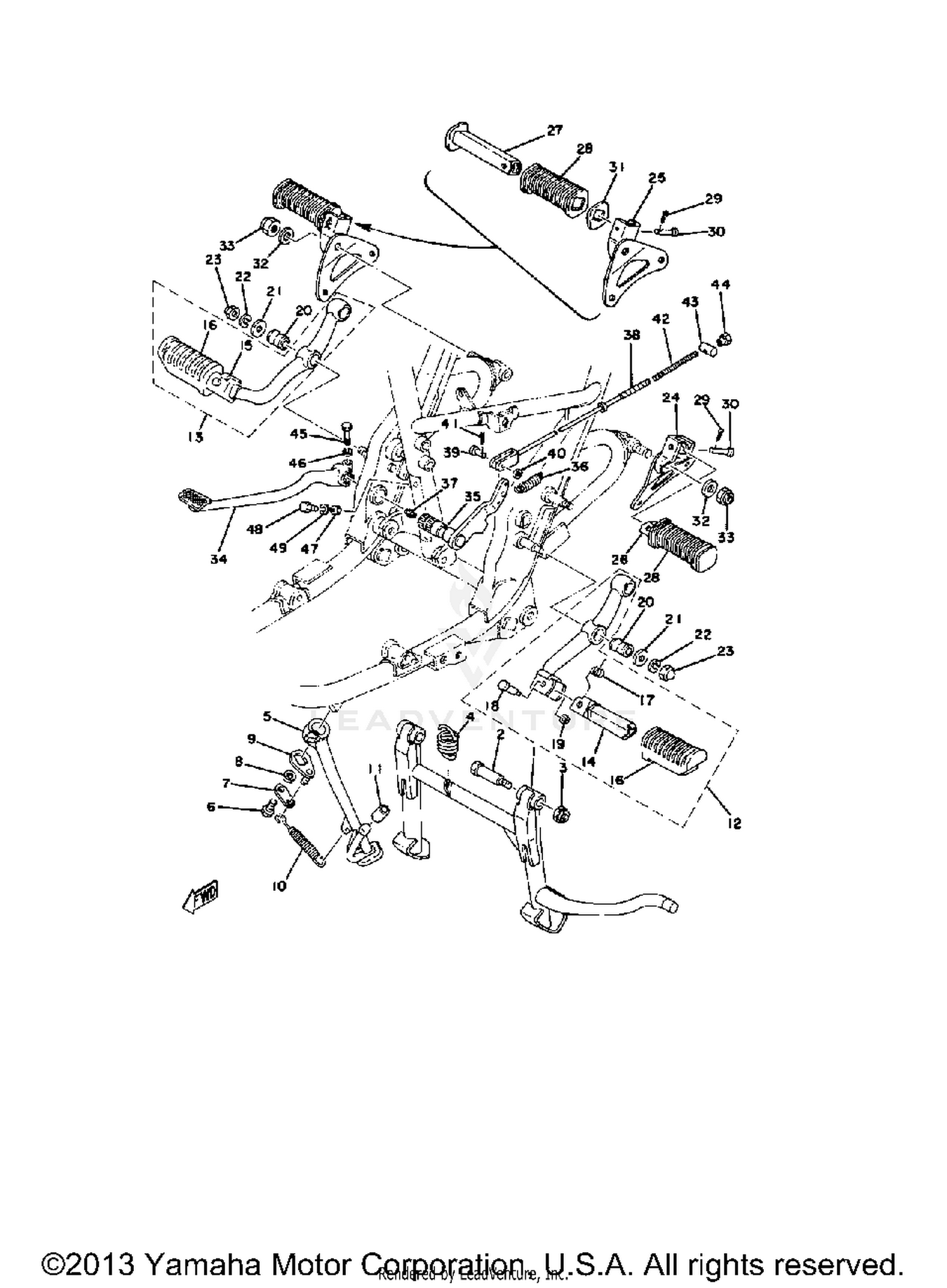

Stand Footrest Brake Pedal Xs650d E E006501- F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
1T3-27111-02-00
|
$101.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-10268-00
|
$7.99 | ||
|
Unavailable |
|||
|
#3
NUT, SELF-LOCKING
90185-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-50064-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
STAND, SIDE
1T3-27311-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#6
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SIDE STAND
36Y-27322-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#8
WASHER PLATE
90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOOK, SIDE STAND
36Y-27352-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90507-29009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER
1T3-27314-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#
STOPPER
278-27314-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
FRT FOOTREST ASSEMBLY L
1T3-27410-00-33
Superseded by 1T3-27410-00-93
|
$70.99 | ||
|
Unavailable |
|||
|
#13
FRT FOOTREST ASSEMBLY R
1T3-27420-00-93
|
$73.99 | ||
|
Unavailable |
|||
|
#14
FOOTREST
3CK-27451-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#15
FOOTREST
3N6-27461-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#16
COVER, FOOTREST
4L0-27423-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN
90243-08006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, FOOTREST
256-27414-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10437-00
Superseded by 90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET 1
584-27432-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#25
BRACKET 2
584-27442-00-00
|
$19.08 | ||
|
Unavailable |
|||
|
#26
FOOTREST, REAR 1
447-27431-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FOOTREST, REAR 2
447-27441-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, RR FOOTREST
447-27433-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, CLEVIS
91701-06035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-13502-00
Superseded by 90201-13645-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PEDAL, BRAKE
533-27211-01-93
|
$157.99 | ||
|
Unavailable |
|||
|
#35
SHAFT, BRAKE PEDAL
533-27212-00-00
|
$29.94 | ||
|
Unavailable |
|||
|
#36
SPRING, TENSION
90506-23046-00
Superseded by 90506-20380-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#38
ROD, BRAKE
447-27231-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#39
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN
90249-12008-00
|
$7.49 | ||
|
Unavailable |
|||
|
#
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT
90109-06468-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
