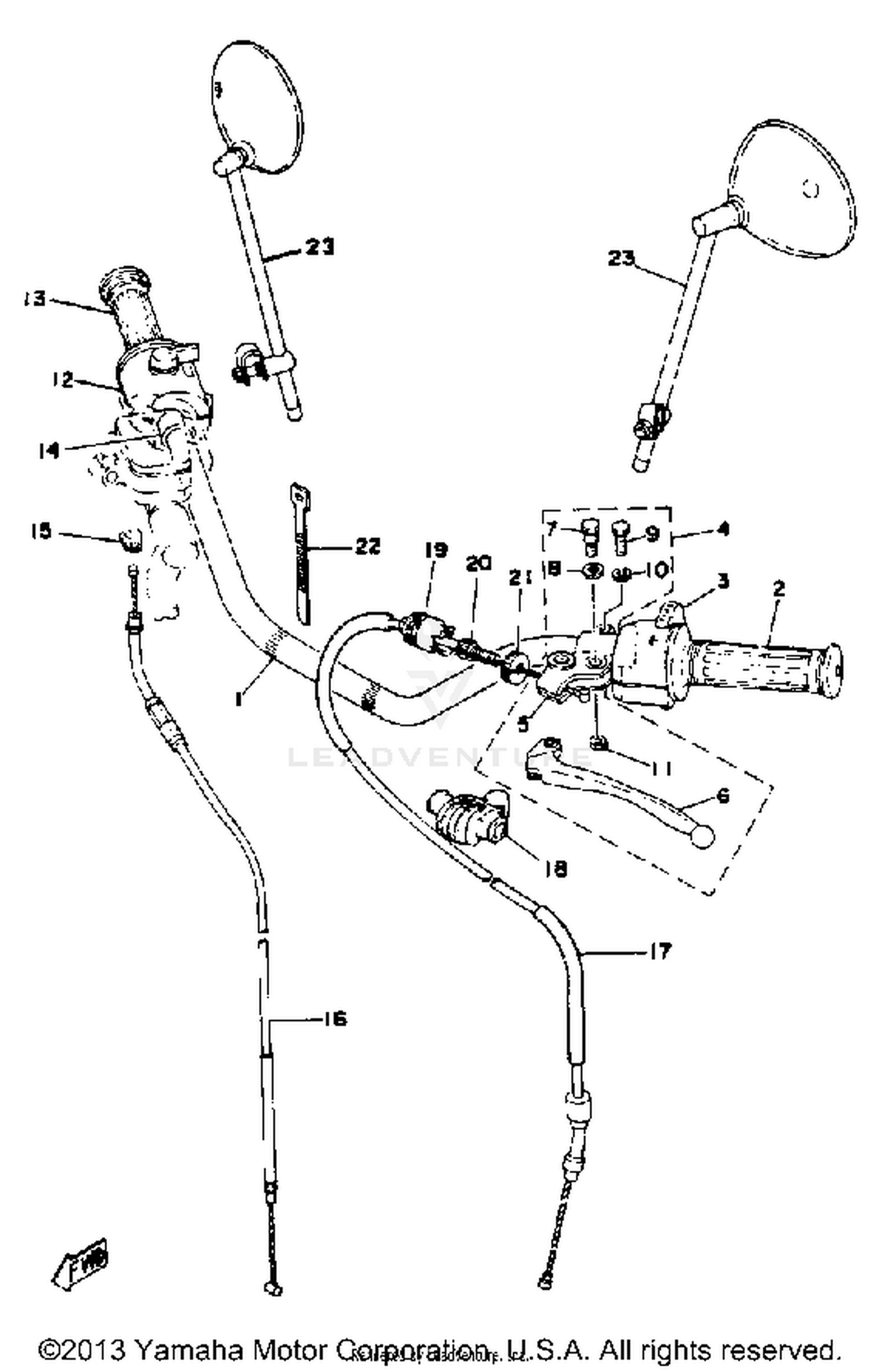

Handle Wire Xs650 E006501- Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
584-26111-10-00
|
$66.99 | ||
|
Unavailable |
|||
|
#2
GRIP LH
2H7-26241-00-00
Superseded by 2H7-26241-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH, HANDLE 3
1T3-83973-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#4
LEVER HOLDER ASSEMBLY 1
1J3-82910-22-00
|
$34.99 | ||
|
Unavailable |
|||
|
#5
HOLDER, LEVER LEFT
341-82911-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER L
1J3-83912-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH, HANDLE 3
584-83963-00-00
|
$80.02 | ||
|
Unavailable |
|||
|
#13
GRIP ASSY
2H7-26240-00-00
Superseded by 2H7-26240-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-22591-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, WIRE GUIDE
584-26393-02-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, THROTTLE 1 (1010MM)
584-26311-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#17
CABLE, CLUTCH (256-26335-02)
447-26335-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT, CABLE
1E6-26342-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
MIRROR ASSEMBLY
1T3-26290-01-00
|
$55.99 | ||
|
Unavailable |
|||
