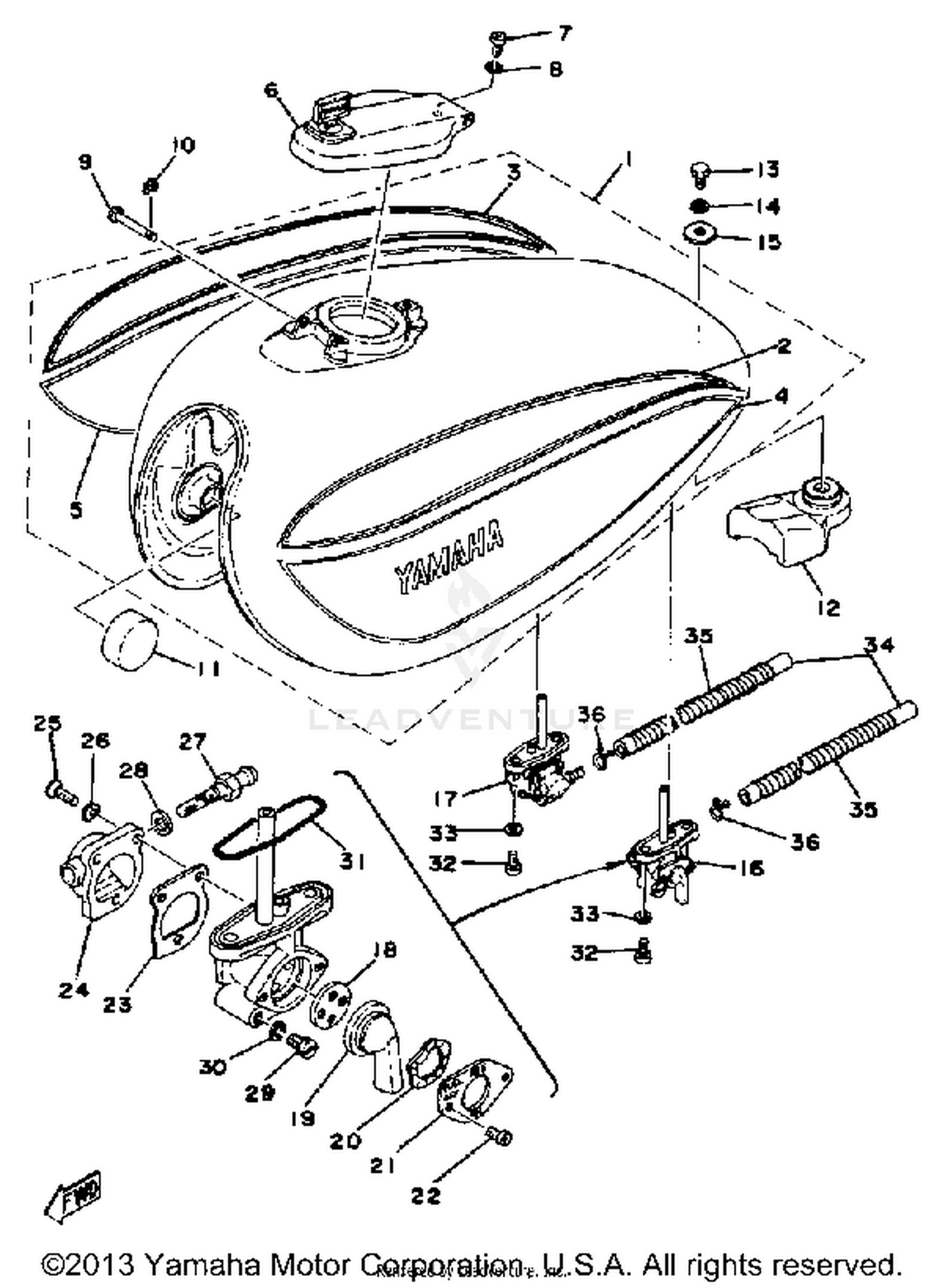

Fuel Tank Xs650d Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
584-24110-01-X2
|
$295.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
584-24110-01-X6
|
$295.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
1T3-24244-10-00
|
$9.28 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 1
1T3-24244-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#3
UNAVAILABLE IN PRICE BOOK (1T
1G3-24245-01-00
|
|||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 2
1T3-24245-10-00
|
$11.02 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 3
1T3-24246-01-00
|
$3.50 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 3
1T3-24246-10-00
|
$8.28 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 4
1T3-24247-10-00
|
$18.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 4
1T3-24247-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
CAP ASSEMBLY
1E7-24602-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, SPECIAL SHAPE
90249-03123-00
|
$3.85 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 1
256-24181-01-00
|
$19.49 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06075-00
Superseded by 90201-06074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUEL COCK ASSEMBLY 1
447-24500-02-00
|
$137.99 | ||
|
Unavailable |
|||
|
#17
FUEL COCK ASSEMBLY 2
447-24510-02-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE
137-24523-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, COCK
447-24524-10-00
|
$6.26 | ||
|
Unavailable |
|||
|
#
LEVER, COCK
447-24524-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#20
WASHER, WAVE
132-24518-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, LEVER FITTING
447-24525-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#
PLATE, LVR FITTING
447-24546-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
447-24522-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, FILTER
447-24547-10-00
|
$2.08 | ||
|
Unavailable |
|||
|
#
COVER, FILTER
447-24547-00-00
|
$2.08 | ||
|
Unavailable |
|||
|
#25
SCREW, FLAT HEAD
98701-04010-00
Superseded by 98707-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, EX.TOOTH
92901-04500-00
|
$0.75 | ||
|
Unavailable |
|||
|
#27
NIPPLE
256-24537-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#28
GASKET
256-24528-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98580-05006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET, BODY 4
801-24437-00-00
|
$3.92 | ||
|
Unavailable |
|||
|
#31
GASKET
256-24512-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE 5
90445-09079-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING, COMPRESSION
90501-06028-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
