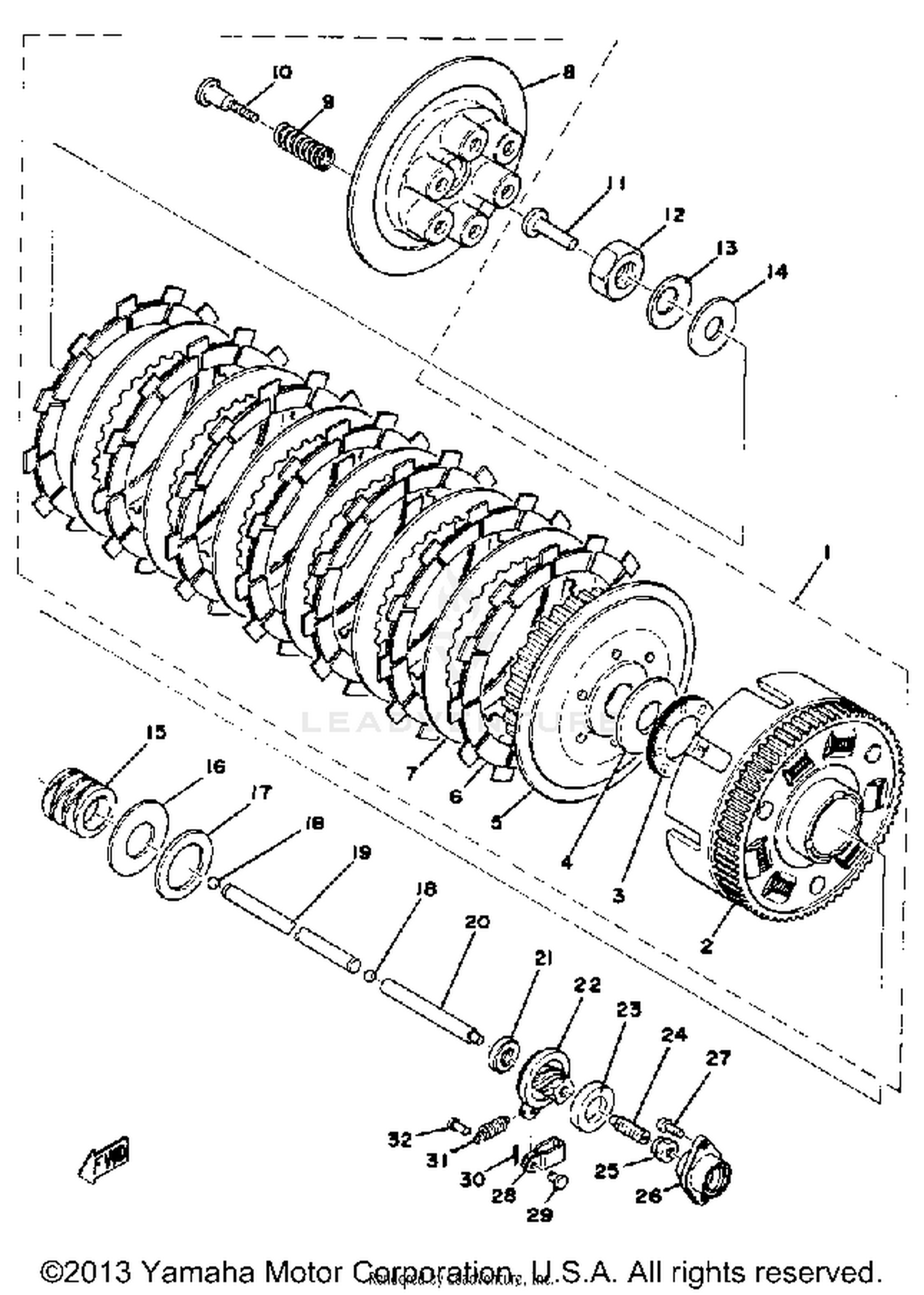

Clutch Xs650d E E006501- F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
1T3-16301-00-00
|
$263.99 | ||
|
Unavailable |
|||
|
#
CLUTCH ASSEMBLY
447-16301-02-00
|
$156.99 | ||
|
Unavailable |
|||
|
#2
PRI DRVN GEAR
256-16150-02-00
|
$128.99 | ||
|
Unavailable |
|||
|
#3
BEARING, FLAT #41
93341-23504-00
|
$13.58 | ||
|
Unavailable |
|||
|
#4
PLATE, THRUST 2
170-16164-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOSS, CLUTCH
341-16371-10-00
|
$52.99 | ||
|
Unavailable |
|||
|
#6
PLATE, FRICTION
341-16321-13-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
341-16325-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, PRESSURE 1
341-16351-01-00
|
$19.49 | ||
|
Unavailable |
|||
|
#9
SPRING, COMPRESSION
90501-26148-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, SPEC''L SHAPE
90149-06102-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH 1
256-16356-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#12
NUT
90170-18089-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
SPRING, BELLEVILLE
214-16119-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
92990-18200-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
90560-25131-00
|
$16.49 | ||
|
Unavailable |
|||
|
#16
PLATE, THRUST 2
170-16164-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE (0.9T)
90201-256K6-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93505-16006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 2
447-16357-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#
ROD, PUSH 3
341-16376-00-00
|
$33.80 | ||
|
Unavailable |
|||
|
#20
ROD, PUSH 2
447-16357-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#
ROD, PUSH 3
341-16376-00-00
|
$33.80 | ||
|
Unavailable |
|||
|
#21
OIL SEAL, SD-TYPE
93102-08206-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PUSH LEVER ASSEMBLY
1T3-16340-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#23
SEAL, DUST
214-16347-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#24
BOLT, SET
90113-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SPECIAL SHAPE
90179-08179-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOUSING, PUSH SCREW
371-16396-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, CLEVIS
90240-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
|
#31
SPRING, TENSION
90506-10023-00
|
$2.80 | ||
|
Unavailable |
|||
|
#32
HOOK, SPRING
132-16346-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
