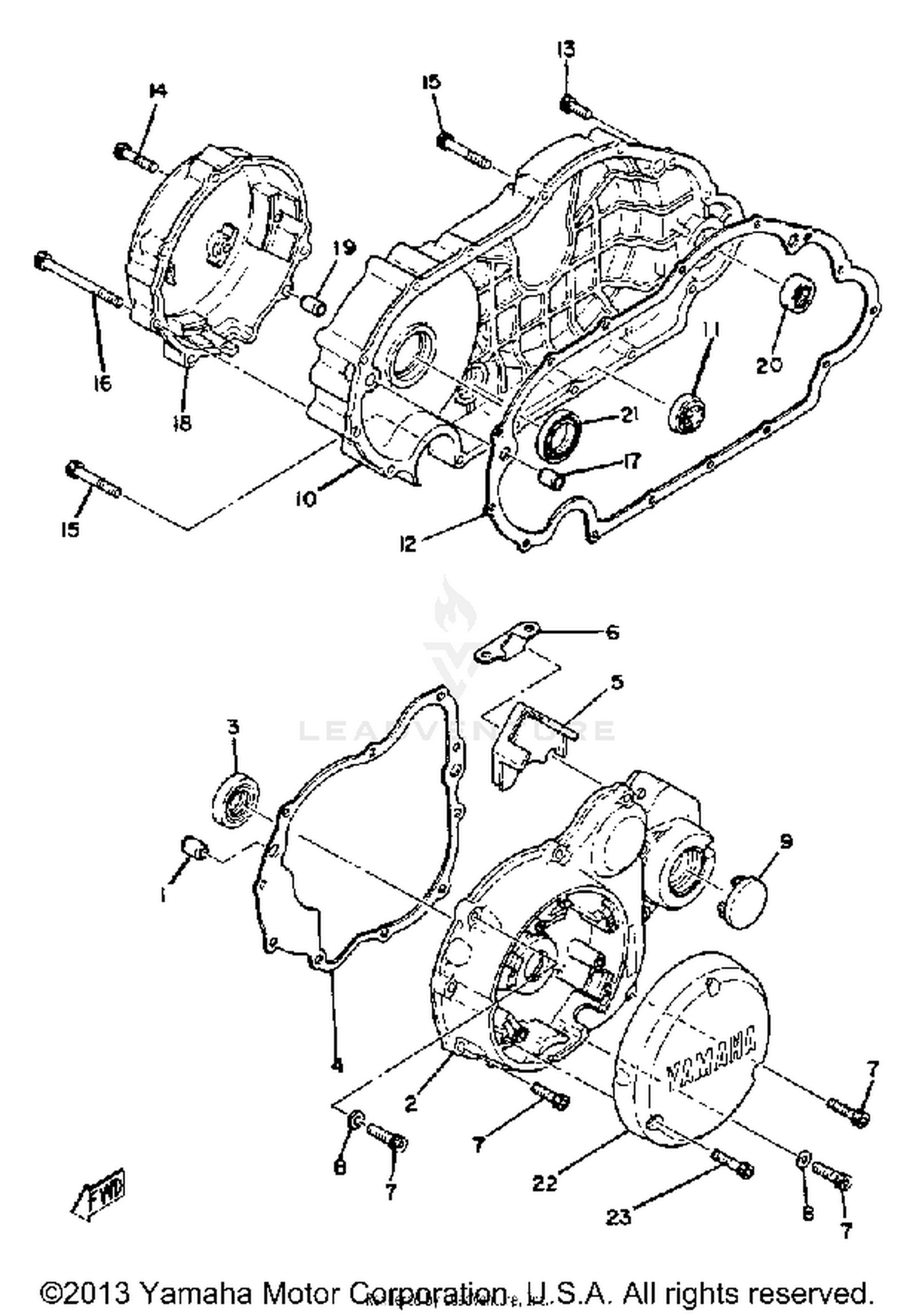

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRCS COVER ASSEMBLY L
2G2-15410-01-00
|
$215.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL, SD-TYPE
93102-24154-00
|
$12.99 | ||
|
Unavailable |
|||
|
#4
GASKET,CRCS CVR 2
1J7-15461-00-00
Superseded by 1J7-15461-10-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, AIR DUCT
1J7-15474-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
PLATE, DUST SEAL
1J7-15497-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, CAP
1J7-15417-02-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
COVER, CRANKCASE 3
4H1-15431-00-00
|
$181.99 | ||
|
Unavailable |
|||
|
#11
GAUGE, LEVEL
2H7-15361-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CAP
1J7-15417-02-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91311-06030-00
Superseded by 91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91316-06080-00
Superseded by 91317-06080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, GENERATOR
2G2-15415-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#19
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93102-20108-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93102-25153-00
Superseded by 93102-25090-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, OIL PUMP
2G2-15416-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91311-06030-00
Superseded by 91314-06030-00
|
$7.49 | ||
|
Unavailable |
|||
