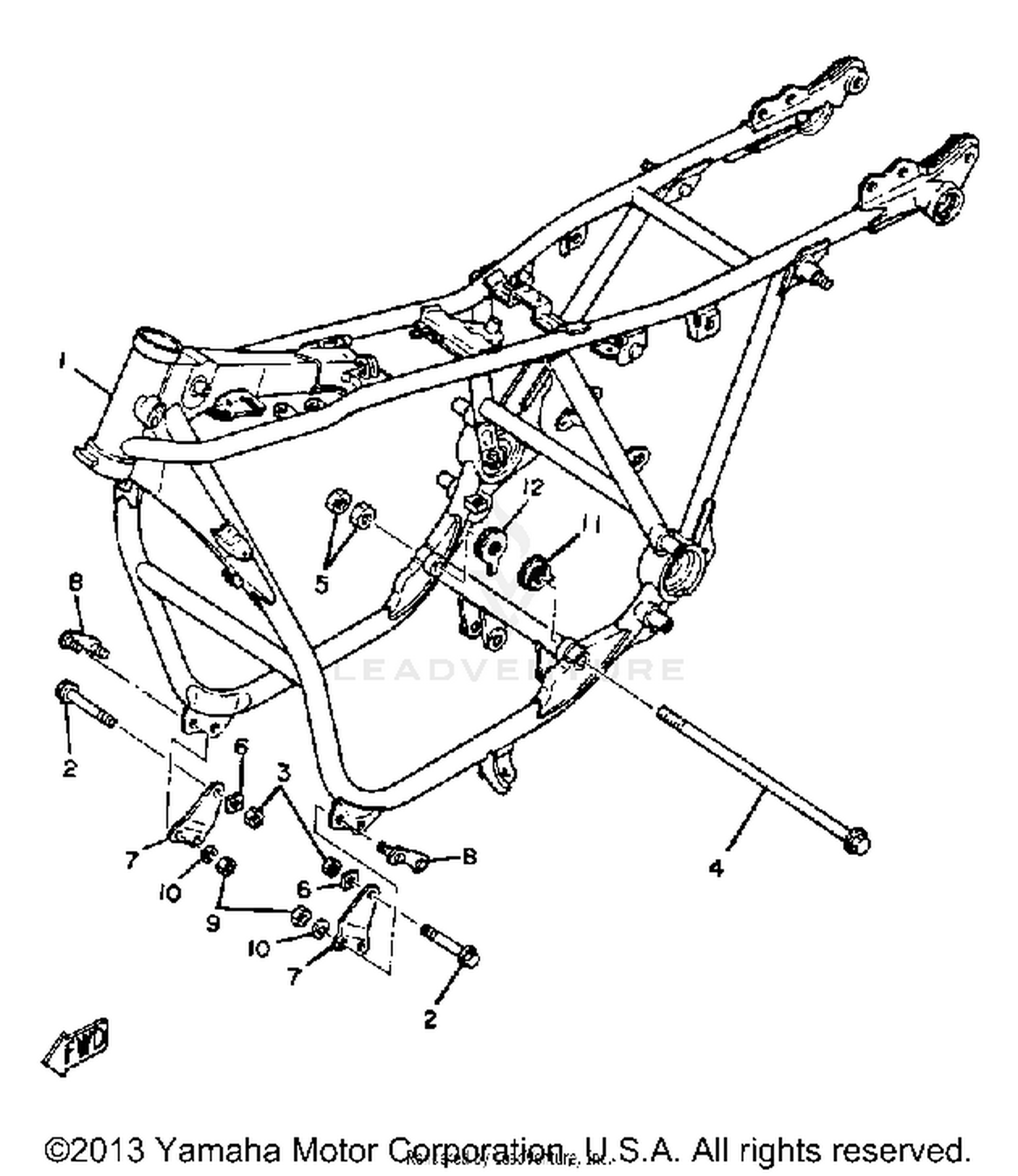

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
3J3-21110-02-33
|
$574.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95811-10040-00
Superseded by 95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90109-12501-00
|
$10.33 | ||
|
Unavailable |
|||
|
#5
NUT
95311-12700-00
Superseded by 95317-12700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPEC''L SHAP
90209-10147-00
|
$0.94 | ||
|
Unavailable |
|||
|
#7
STAY, ENGINE 3
2G2-21316-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#8
BRACKET, FRT LWR 2
2G2-21418-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#9
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, RUBBER 1
2G2-21485-00-00
|
$12.30 | ||
|
Unavailable |
|||
|
#12
DAMPER 2
2G2-21486-00-00
|
$15.99 | ||
|
Unavailable |
|||
