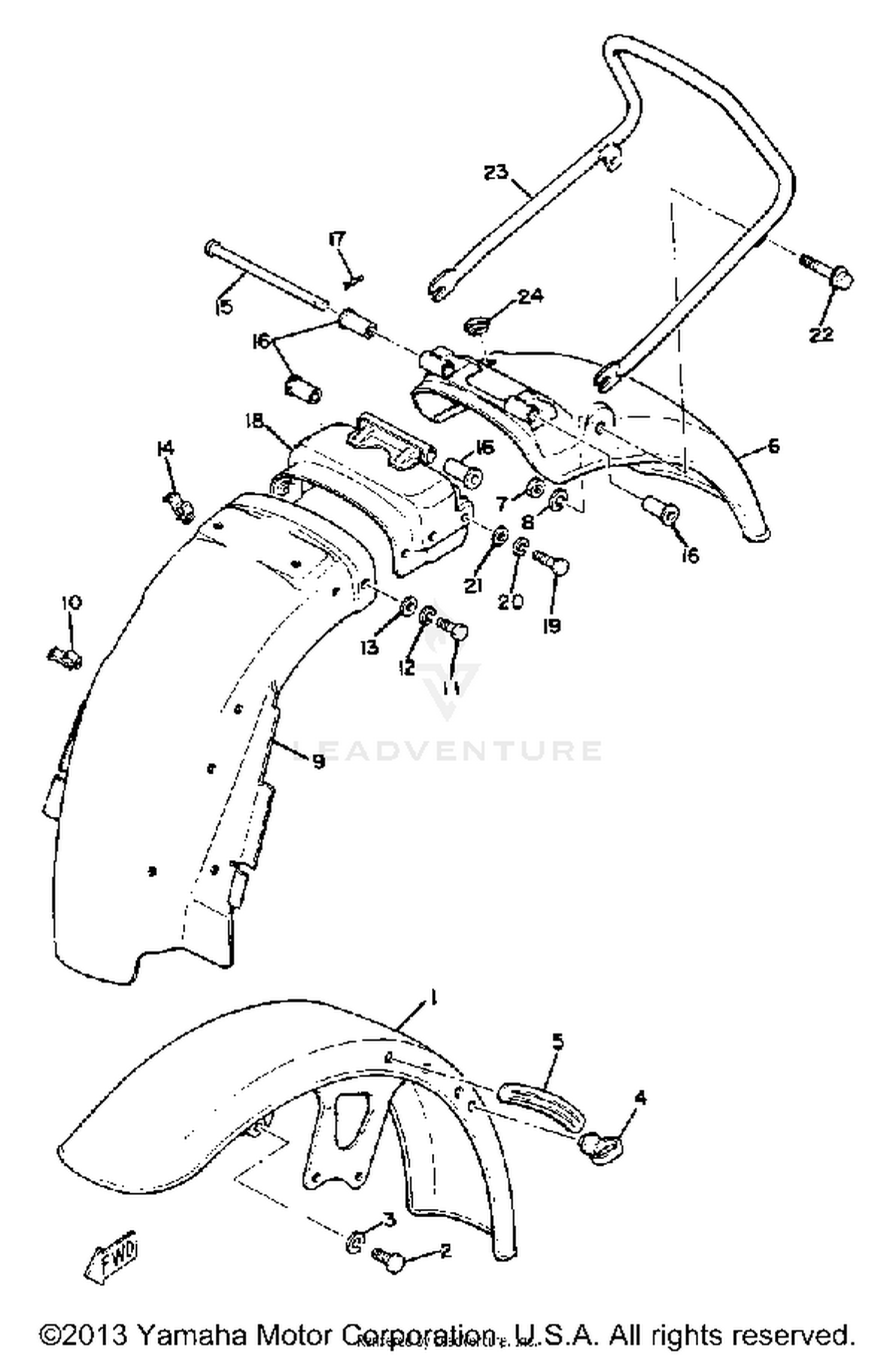

Front Fender Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1J7-21510-00-93
|
$137.99 | ||
|
Unavailable |
|||
|
#2
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
1A0-21518-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD, CABLE
1J7-21517-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#6
FENDER, REAR
3J3-21610-01-93
|
$85.99 | ||
|
Unavailable |
|||
|
#7
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
GUARD, MUD
3J2-21629-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#10
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-16025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, CLEVIS
91701-06152-00
|
$2.10 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, FENDER 1
3J3-21613-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#19
BOLT
97016-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95811-08045-00
Superseded by 95814-08045-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, REAR
3J3-21645-00-00
|
$64.22 | ||
|
Unavailable |
|||
|
#24
GROMMET
90480-16112-00
Superseded by 90480-16501-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
