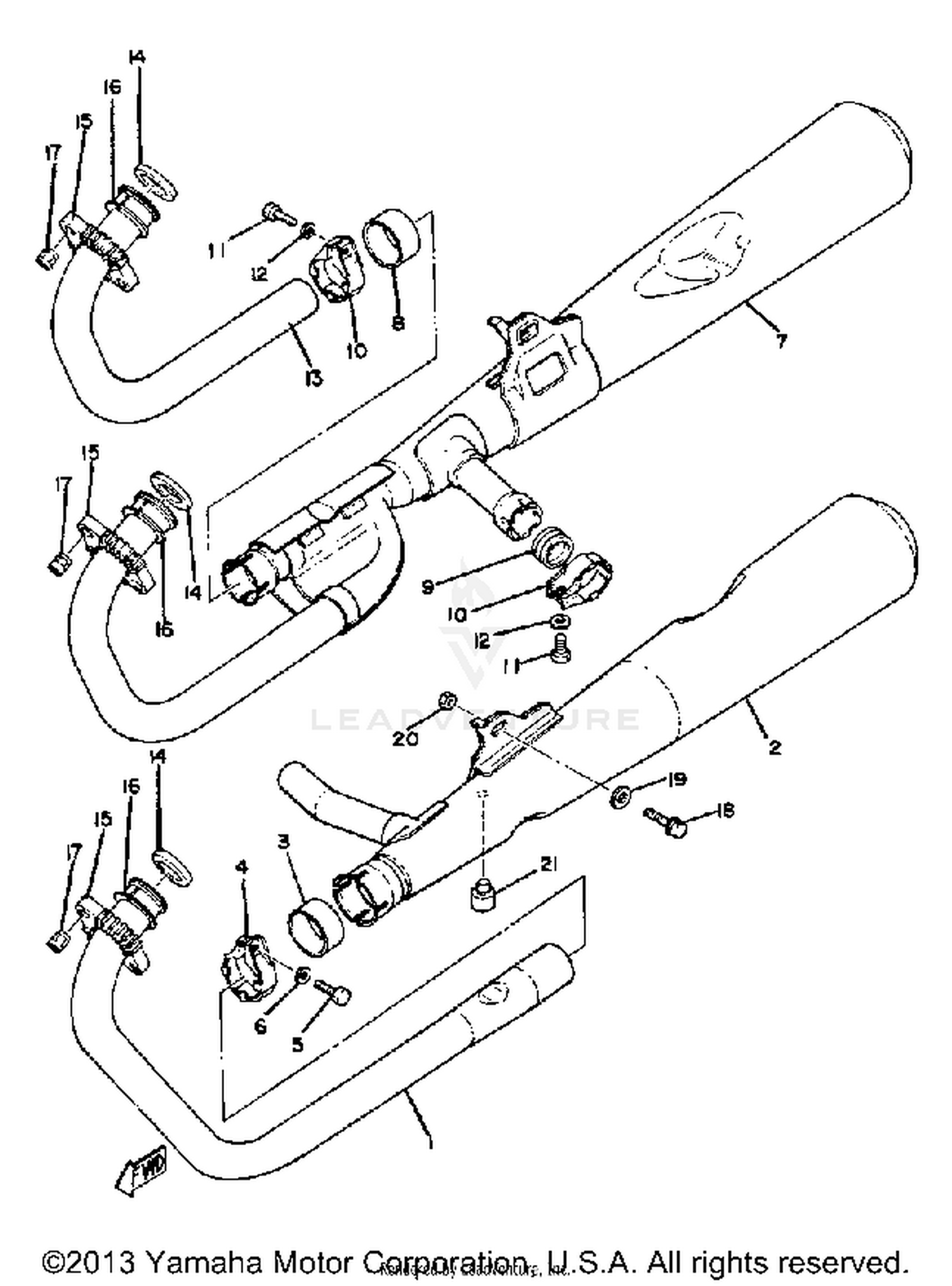

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
3J3-14611-00-00
|
$56.31 | ||
|
Unavailable |
|||
|
#2
MUFFLER L
3J3-14711-02-00
|
$335.99 | ||
|
Unavailable |
|||
|
#3
GASKET, MUFF
1J7-14714-00-00
Superseded by 1J7-14714-10-00
|
$15.99 | ||
|
Unavailable |
|||
|
#4
BAND, silence 4
26H-14797-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
BOLT
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
MUFFLER ASSEMBLY R
3J3-14720-02-00
|
$613.99 | ||
|
Unavailable |
|||
|
#8
GASKET, MUFF
1J7-14714-00-00
Superseded by 1J7-14714-10-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
GASKET, EXHAUST 4
1L9-14714-01-00
Superseded by 3JJ-14653-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, silence 4
26H-14797-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#11
BOLT
97013-08025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#13
PIPE, EXHAUST 3
1T4-14631-10-00
|
$94.99 | ||
|
Unavailable |
|||
|
#14
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, RING
4H1-14612-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#16
FLANGE, EXST PIPE
1J7-14614-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90179-08004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95811-10040-00
Superseded by 95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-10714-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPEC''L SHAPE
90179-10276-00
|
$3.80 | ||
|
Unavailable |
|||
|
#21
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
