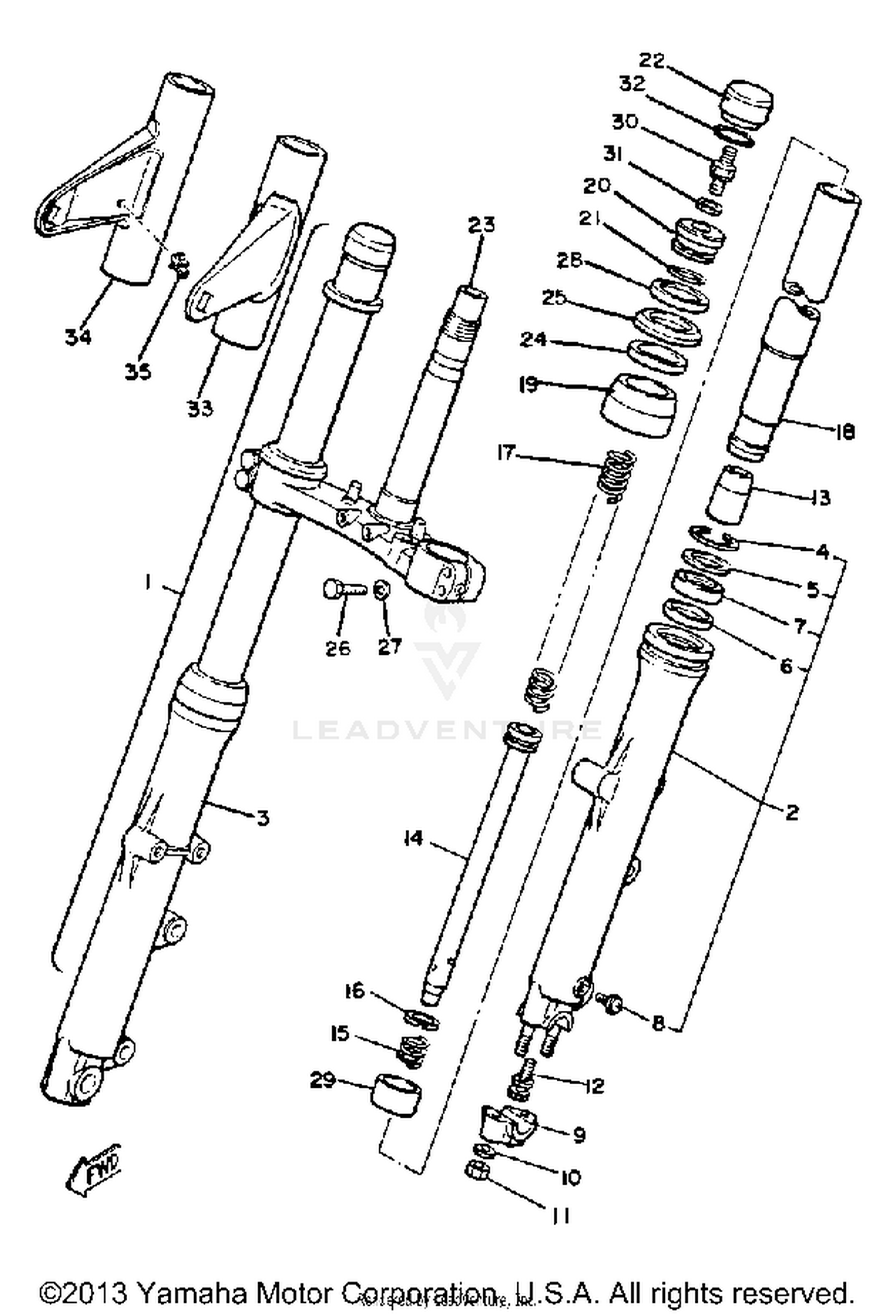

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
3J3-23101-00-00
|
$312.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
3J3-23126-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
3J3-23136-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#4
RING, SNAP
34X-23156-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
3J6-23146-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#6
SEAL, SPACER
1KH-23147-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
1KH-23145-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, DRAIN
1E7-23119-00-00
|
$2.05 | ||
|
Unavailable |
|||
|
#9
HOLDER, AXLE
1J7-23167-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, OIL LOCK
1J3-23166-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#14
CYLINDER, FRTFRK
2G2-23170-00-00
|
$14.84 | ||
|
Unavailable |
|||
|
#15
SPRING, REBOUND
1J3-23151-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
RING, PISTON FRTFRK
1T4-23157-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
SPRING, FRONT FORK
3J3-23141-00-00
|
$18.44 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
2F3-23141-10-00
|
$29.38 | ||
|
Unavailable |
|||
|
#18
INNER TUBE 1
3J3-23110-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#19
SEAL, DUST
1T4-23144-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#20
BOLT, CAP
3J3-23111-00-00
|
$12.30 | ||
|
Unavailable |
|||
|
#21
GASKET
2F3-23114-00-00
Superseded by 93210-221A0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, FRONT FORK
2F3-23168-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#23
UNDER BRACKET
3J3-23340-00-33
|
$206.99 | ||
|
Unavailable |
|||
|
#24
GASKET
23W-23163-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
GUIDE, COVER LOWER
3J3-23116-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#26
BOLT 1
3J3-23346-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING LWR
3J3-23159-00-00
|
$2.50 | ||
|
Unavailable |
|||
|
#28
GUIDE, COVER UPPER
1T4-23115-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#29
METAL, SLIDE 2
3J3-23135-00-00
|
$7.88 | ||
|
Unavailable |
|||
|
#30
AIR VALVE
5K7-23190-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#31
O-RING
3H3-23147-00-00
Superseded by 93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
1J3-23183-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#33
COVER, UPPER 1
3J3-23121-00-93
|
$46.99 | ||
|
Unavailable |
|||
|
#34
COVER, UPPER 2
3J3-23131-00-93
|
$63.99 | ||
|
Unavailable |
|||
|
#35
CLAMP
90464-16025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
